Summary of Contents for MSA SUPREMA Touch

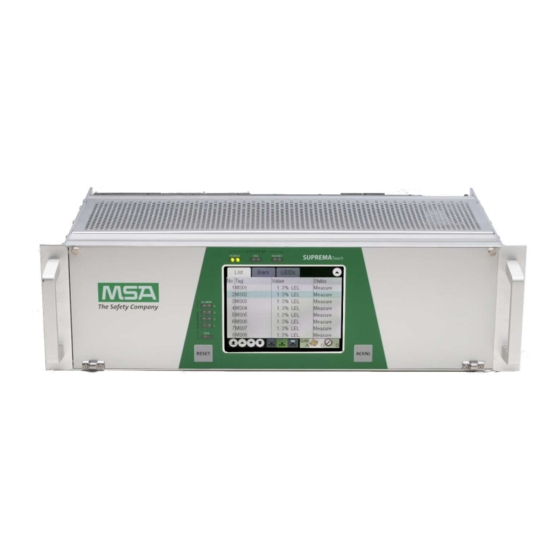

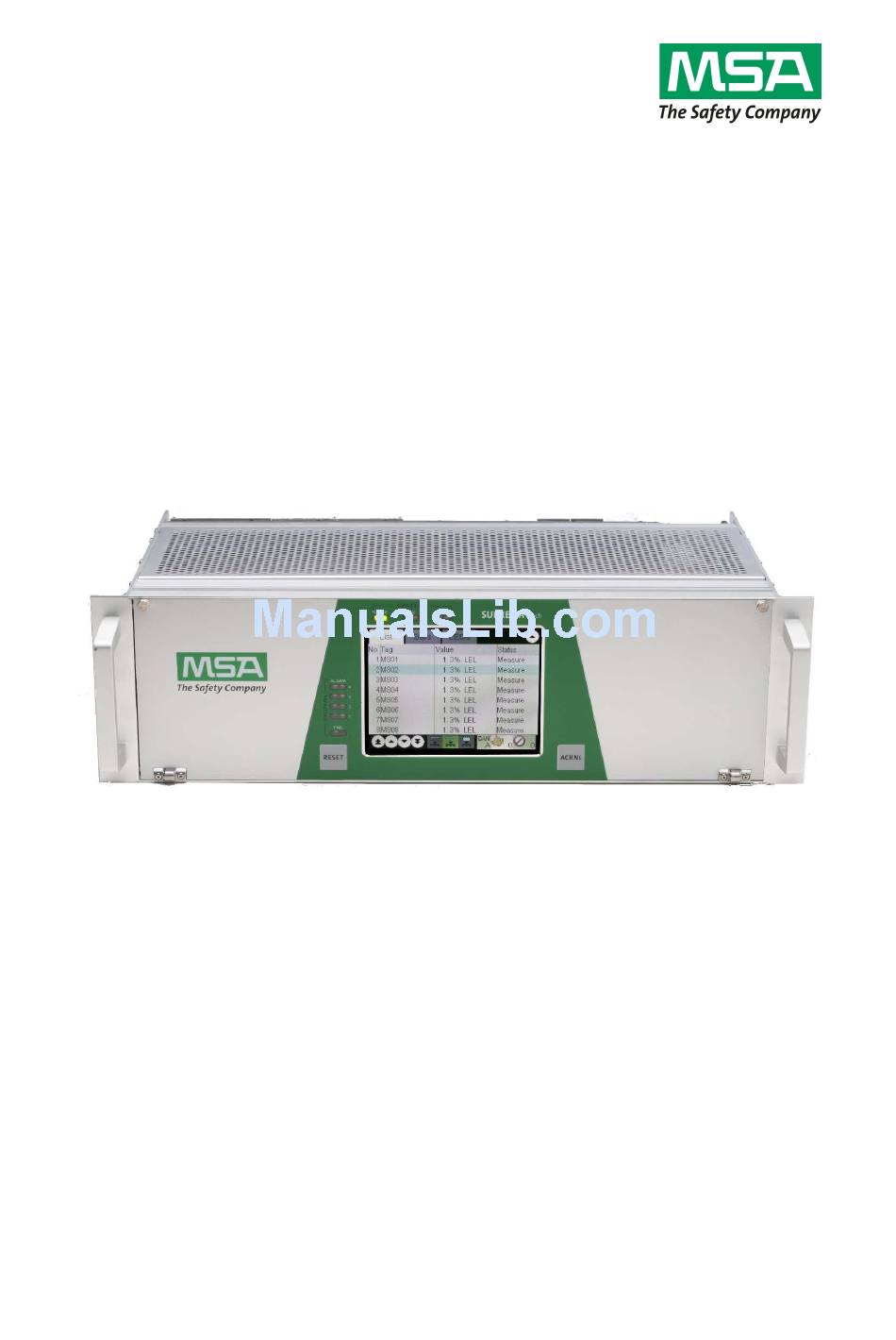

- Page 1 Manual Addendum SUPREMA Touch Fire and Gas Warning Unit Addendum to the SUPREMA Touch manual (Rev. 02). Order No. 10121863/02 Addendum01...
- Page 2 Values below 3mA and above 22mA must be handled as failure • Maximum load: 500 Ohm • Data transmitted from the MDO module via the CAN bus A • The System Failure Relay is activated when a processor error occurs • Euro card with a 96-way connector Addendum SUPREMA Touch...
- Page 3 All analogue outputs at 0 mA after 2 min. All analogue outputs at 0 mA. Last status is kept CAN-A-/B Selection Switch S4 Function Control of the MAO module via CAN bus A (also for redundant applications) Addendum SUPREMA Touch...
- Page 4 The MAO module is always controlled via CAN bus A! Correction of chapter 10.9 Connection of the Analog Outputs Terminal No. 1 Terminal No. 2 Terminal No. 3 Terminal No. 4 Terminal No. 5 Fig. 140 MAT/MAT TS Module Terminal Assignment, Analog Outputs Addendum SUPREMA Touch...
- Page 5 500 ohms Output current range: 0 ... 24 mA Inhibit signal: 3.0 mA Failure signal: 3.2 mA Measurement signal range: 4 ... 20 mA Over range signal: 22 mA Dimensions: 100 x 160 mm Weight: 80 g Addendum SUPREMA Touch...
-
Page 6: Ec Declaration Of Conformity
EC Declaration of Conformity The manufacturer or his in the community established authorized repre-sentative MSA AUER GmbH , Thiemannstraße 1 , D-12059 Berlin declares that the product : SUPREMA based on the EC-Type Examination Certificate : DMT 03 ATEX G 003 X complies with the ATEX directive 94/9/EC, Annex III.
