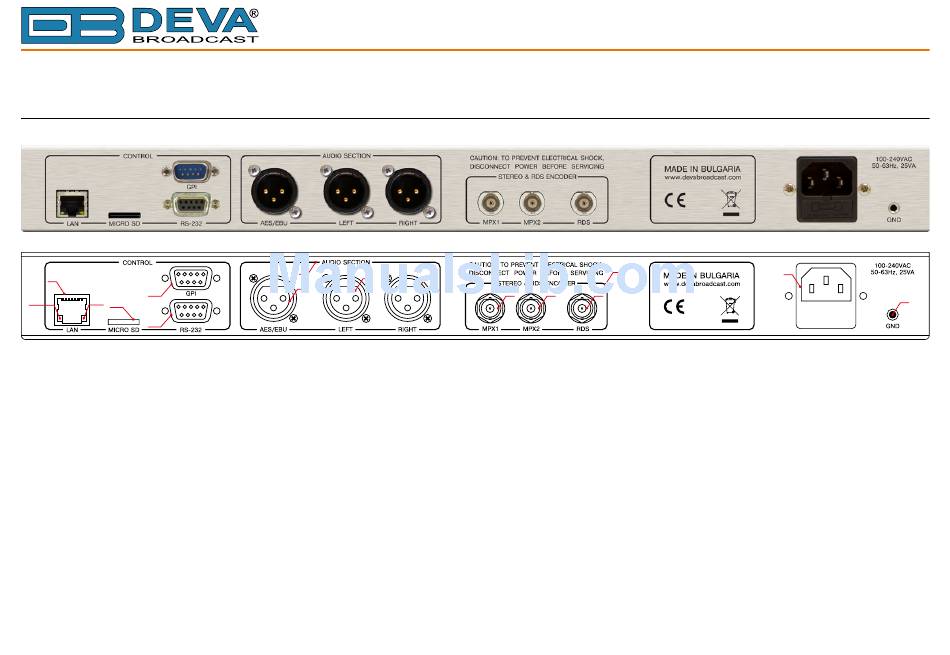

REAR PANEL

1
3
1a
1b
2
4
1- LAN Port / Internet Input – standard RJ-45 port:
1a - Network Activity LED Indicator (RJ-45 built-in);
1b - Network Availability LED Indicator (RJ-45 built-in);
2 - SD Card;
3 - GPI;
4 - RS-232 Serial COM Port - DB-9 Female Connector;
5 - Audio section:
5a - AES/EBU - Digital Audio Output – Balanced XLR Female;
5b - Left - Analog Audio Output – Balanced XLR Female;
5c - Right - Analog Audio Output – Balanced XLR Female;
6 - Stereo and RDS Encoder(will be available if Stereo & MPX Encoder Board is installed):
6a - MPX output 1;
6b - MPX output 2;
6c - RDS output;
7 - Power Supply;
8 - GND.
5
5b 5c
5a
