Installation
2.7.3 Fiber Optic Ports
The RS400 Series can be equipped with several different types of fiber optic ports. The
Transmit (TX) and Receive (RX) connections of each port must be properly connected

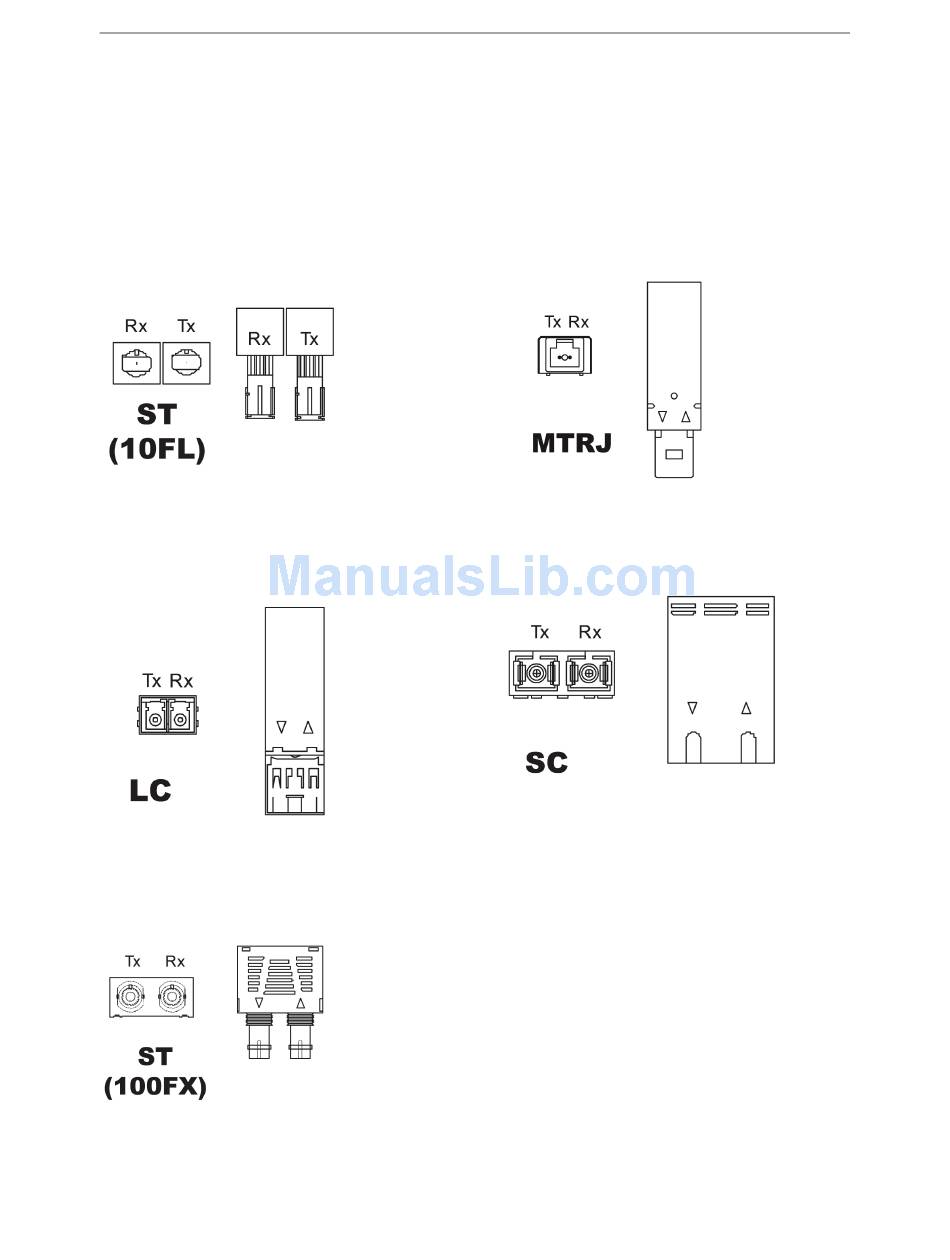

and matched for proper link and operation. The drawings in the following figures show
each fiber optical connector style with a side and top view to allow the user to identify the
proper cable connection orientation.
Figure 2.8.2.1: 10FL ST connector
Figure 2.8.2.3: 100FX LC connector
Figure 2.8.2.5: 100FX ST connector
®
RuggedCom
Figure 2.8.2.2: 100FX MTRJ connector
Figure 2.8.2.4: 100FX SC connector
27
RuggedServer™ RS400 Family Installation Guide rev109
