Installation

2.7 Ethernet Ports

Depending on the order code of the product, the RS400 Series can be equipped with
several different types of Ethernet ports. In order to determine the type of Ethernet ports
on your RS400 Series, review you order code (your order code is in the form RS40X-PS-
M-E1E2-SP-MP) and compare it to Table 2.8.1 below.
Code (E1 & E2 Port
in your order
code)
00 No Ethernet ports
TX 10/100BaseTX RJ-45
FL 10FL Multimode ST, 820nm, 2km
MJ 100FX Multimode MTRJ
MC 100FX Multimode SC
MT 100FX Multimode ST
T2 100FX Singlemode ST, Standard 20km
L2 100FX Singlemode LC, Standard 20km
L5 100FX Singlemode LC, Intermediate Reach
50km
L9 100FX Singlemode LC, Long Reach 90km
C2 100FX Singlemode SC, Standard 20km
C5 100FX Singlemode SC, Intermediate Reach
50km
C9 100FX Singlemode SC, Long Reach 90km
Table 5: Ethernet Port Options

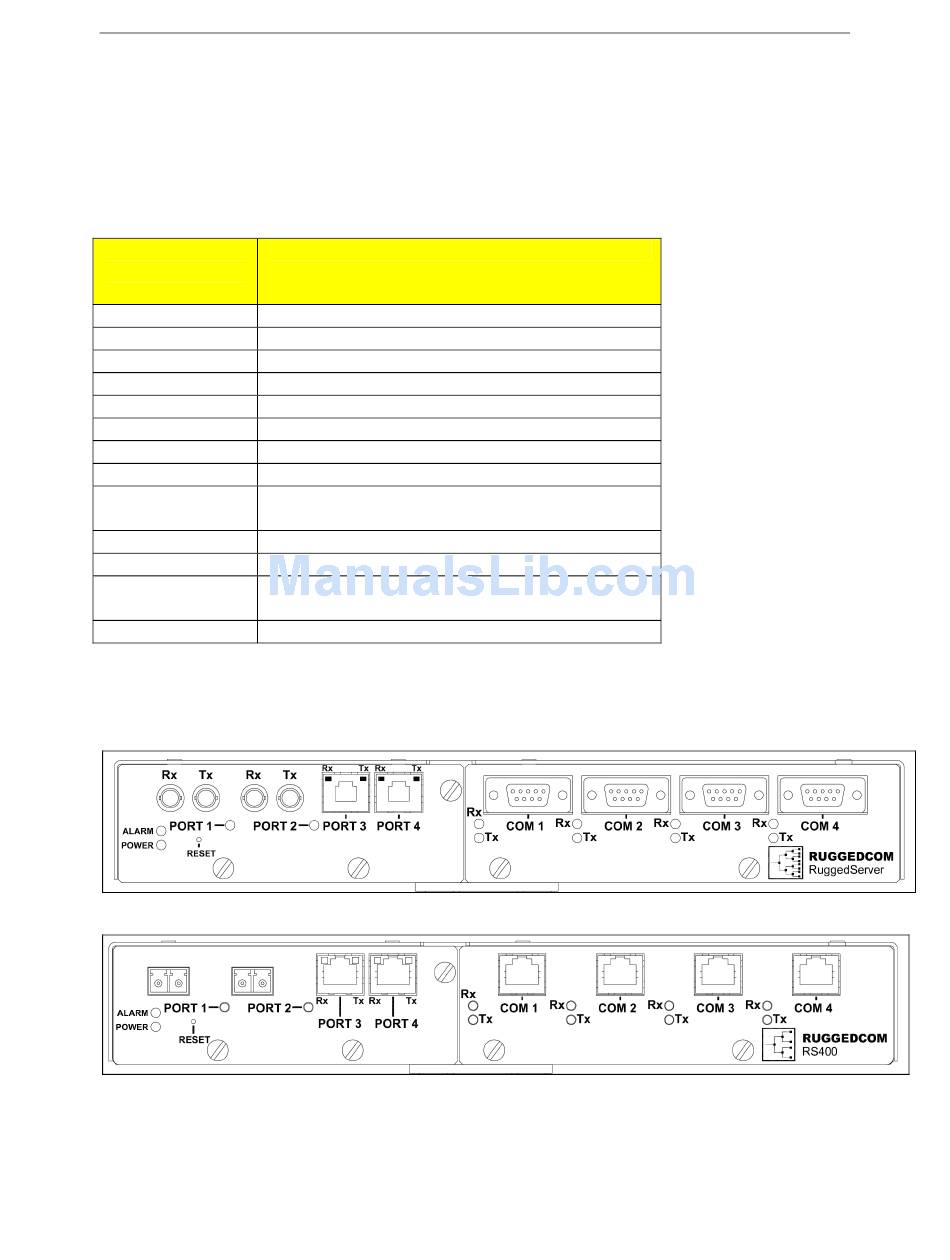

The following two figures show examples of the RS400 equipped with different Ethernet
ports.
Figure 23: RS400 equipped with ST and RJ-45 Ethernet ports
Figure 24: RS400 equipped with LC and RJ-45 Ethernet ports
®
