  • Page 1 HD/SD-SDI PTZ CAMERA PTC-150/ PTC-150W Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents FCC COMPLIANCE STATEMENT ..............4 WARNINGS AND PRECAUTIONS ..............4 WARRANTY ....................6 ..................6 TANDARD ARRANTY ..................6 HREE ARRANTY DISPOSAL ...................... 7 1. PRODUCT OVERVIEW ................8 2. FEATURES ....................9 3. LOCATION AND FUNCTION OF PARTS ............10 4.
  • Page 3 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 4: Fcc Compliance Statement

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
  • Page 5 other risks, and will void your warranty. Refer all service issues to qualified service personnel. 13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions: a. When the power cord is damaged or frayed; b.

  • Page 6: Warranty

    Camera module, PCIe Card are covered for the first 10000 hours, or 1 year (whichever comes first). • Any three-year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires.

  • Page 7: Disposal

    Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 8: Product Overview

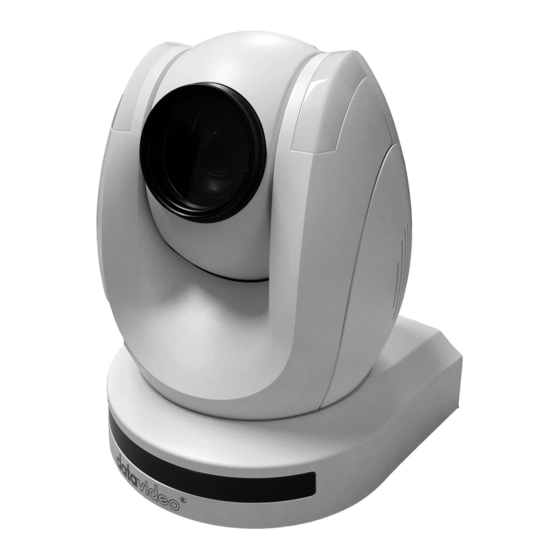

    1. Product Overview The PTC-150/PTC-150W HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor, or a tabletop, and includes an IR remote control. The camera captures HD video at 1920 x 1080 resolution, and features wide dynamic range with backlight compensation.

  • Page 9: Features

    2. Features • HD Resolution: 1/2.8" High Definition 2.14 M Pixels progressive CMOS sensor • 30x optical zoom (f = 4.3 mm to 129 mm) • High definition formats supported: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/29.97p, 1080/25p, 1080/50i, 720/59.94p, 720/50p • Standard definition formats supported: 480i, 576i •...

  • Page 10: Location And Function Of Parts

    3. Location and Function of Parts Front of Camera Lens Built-in 1/2.8” 2.14M Pixel CMOS HD color camera with white balance control, backlight compensation settings, automatic gain settings and etc. Tally LED Tally lamp lights up when tally signal has been transmitted to the tally signal box.
  • Page 11 HDBaseT Communication Port Connects the camera to the receiver box, thereby extending video transmission up to 100m. Note: If the camera is used as a standalone device, this port can be used to connect the camera directly to the PC or to a network router via any RJ-45 cables.

  • Page 12: System Diagram

    4. System Diagram...

  • Page 13: Remote Control And On-Screen Menu

    5. Remote Control and On-Screen Menu 5.1 Remote Control Functions Item Description Reset Press RESET button to return the camera lens to the front. Use the No. bottom & the group bottom to select the group scan. Group Press any of the No. buttons 1~8 and then press GROUP button.
  • Page 14 Focus Setup Manually focus camera lens on a subject Press either (F) FAR button or (N) NEAR button to manually focus the camera lens onto the subject. Automatically focus camera lens on a subject Press A/ FOCUS button. Camera lens will be automatically focused Auto Focus Control on the subject such that it is positioned at the center of the screen.
  • Page 15 Change camera direction Press arrow buttons to change the direction of the camera head Stop Preset Point Auto Scan mode Press any of the DIRECTION buttons Direction Arrows Select Menu Option Press UP or DOWN button to select the menu option Adjust P/T Speed Press UP or DOWN button to adjust the PAN/TILT Speed Enter Sub-Menu Option...

  • Page 16: On-Screen Menu

    5.2 On-Screen Menu On-Screen Menu allows the user to change various camera settings such as shooting conditions and the system setup. Press [Menu] on the remote control to enter the on-screen menu as shown below. On-Screen MENU 1: Camera Set (Normal) 2: Memory 3: Video Output 4: Remote Control...
  • Page 17 Details of all options in the on-screen menu are listed in the table below. First Level Second Level Third Level Fourth Level Sub-Option Main Options Sub-Options Parameters Parameters Descriptions NAME DISPLAY SW ON/OFF 1. Camera Name LOWER LEFT POSITION UPPER RIGHT ESCAPE 2.
  • Page 18 18 dB 21 dB 24 dB 27 dB 30 dB 33 dB 36 dB 39 dB ESCAPE DNR (AT AGC ON) DNR LEVEL ESCAPE ESCAPE 7. Escape 1. Preset 1-50 Position ESCAPE PRESET NO. 1~50 ITEM ON/OFF ON/OFF SPEED LIMIT 1~18 WAITING TIME 0~180...
  • Page 19 ITEM ON/OFF ON/OFF SPEED LIMIT 1~18 WAITING TIME 0~180 NEXT TIME RETURN GROUP – 1 GROUP – 2 GROUP – 3 NEXT POSITION GROUP – 4 GROUP – 5 GROUP – 6 GROUP – 7 GROUP – 8 ESCAPE 17. ESCAPE PRESET NO.
  • Page 20 GROUP – 5 GROUP – 6 GROUP – 7 GROUP – 8 ESCAPE 17. ESCAPE PRESET NO. 1~50 ITEM ON/OFF ON/OFF SPEED LIMIT 1~18 WAITING TIME 0~180 NEXT TIME RETURN GROUP – 1 1-16 GROUP – 2 8. Group – 7 GROUP –...
  • Page 21 Control RS-422, SW 2. Remote (Configurable using Source bottom DIP switch ONLY) BY MENU CAMERA ID MODE BY SWITCH CAMERA ID 9600 3. Set RS-422 19200 RS-422 BAUD RATE 38400 115200 ESCAPE 9600 19200 DVIP BAUD RATE 38400 4. Set DVIP 57600 115200 ESCAPE...
  • Page 22 +5.4 +4.5 +3.6 +2.7 +1.8 +0.9 -0.9 -1.8 -2.7 -3.6 -4.5 -5.4 -6.3 ESCAPE RED/GREEN GREEN 3. Tally Light 4. Reset All YES/NO SW VERSION ESCAPE MB CPU V01.17i 5. Update MB FPGA V017 Software MCTL CPU V00.42 UPDATE ALL YES/NO ESCAPE 6.
  • Page 23 FOCUS SPEED ESCAPE AUTO IRIS MODE MANUAL F1.6 F2.0 F2.4 F2.8 F3.4 F4.8 5. Iris Manual IRIS LEVEL F5.6 F6.8 F9.6 CLOSE ESCAPE AGC MODE ON/OFF 0dB~GAIN MANUAL GAIN LIMIT 9 dB 12 dB 15 dB 18 dB DAY (COLOR) AGC 21 dB GAIN LIMIT 24 dB...
  • Page 24 after AGC is turned on) 12. Day/Night Mode COLOR NORMAL 1/100 1/125 SHUTTER SPEED 1/250 13. Shutter 1/500 1/1000 ESCAPE STANDARD MODE1 (WD OFF) 14. Gamma MODE2 (WD OFF) Mode MODE3 (WD OFF) MODE4 (WD OFF) ON/OFF 15. WD Mode (This option is enabled after AGC is turned on) 16.

  • Page 25: Instruction For Installation

    6. Instruction for installation Step 1 – DIP Switch Setting Set the Mirror option to H+V mode. Step 2 – One End of Retaining Wire Attach the retaining wire to the junction box mounted on the ceiling by screwing one end of the retaining wire into a screw hole in the junction box with a screw (not supplied) as shown in the diagram below.

  • Page 26: Step 4 - Ceiling Bracket (A) And Camera

    Step 4 – Ceiling Bracket (A) and Camera • Screw ceiling bracket (A) into the bottom of the camera using three screws. • Position the screws as shown in the diagram below. • Align the screw holes on the bottom of the camera with those in the ceiling bracket.

  • Page 28: Step 5 - Mount Camera To Ceiling

    Step 5 – Mount Camera to Ceiling...

  • Page 29: Step 6 - Screw To Fix Camera

    Step 6 – Screw to Fix Camera Fix the camera by screwing three screws into the corresponding screw holes as shown in the diagram below. Step 7 – Cable Connection Connect the cables to the connectors located on the rear of the camera.

  • Page 30: Dip Switch Settings

    7. DIP Switch Settings 7.1 DIP Switch SW1 The DIP Switch SW1 can be found at the bottom of the camera, where the user is allowed to set the camera’s VISCA ID, enable remote control, select the video resolution, and configure how the video mode can be selected. DIP SW 1/2/3 VISCA ID (1,2,3) = (ON,OFF,OFF)

  • Page 31: Dip Switch Sw2 (Irid)

    7.2 DIP Switch SW2 (IRID) The IRID DIP Switch can be found on the rear panel of the PTC-150/PTC-150W camera. This DIP switch allows the user to assign an ID number to the camera so that the user can navigate between the cameras by pressing the CAMERA SELECT buttons.

  • Page 32: Network Configuration

    Note: All devices should be connected to the same network domain. 1. First connect the DVIP port of the PTC-150/PTC-150W PTZ camera to a Windows computer using an RJ-45 Ethernet cable. Note: You do not need to manually assign an IP address to the PC but make sure the right interface card is selected at Step 11.
  • Page 33 10. On the PC, open the DVIP Configuration Tool by double clicking “DVIP_Net_Conf.exe.” The DVIP Configuration Tool can be obtained from Datavideo local distributors or downloaded from the product page. 11. After the DVIP Configuration Tool is opened, select your network interface card and click the “OK”...
  • Page 34 12. On the DVIP Device List, you will then be able to see the Device Name, MAC address and IP address of the connected device. 13. After the network setting (Static or DHCP) and the host name are properly configured, click the “Save” button to write the new information into the device.
  • Page 35 15. Reboot the device to apply the new settings. In addition to configuring network settings of the connected DVIP devices, the DVIP configuration tool also allows you to search for DVIP devices, clear the device list, switch to other interface cards and change the interface language. Each individual function is described below.
  • Page 36 • Switch to Other Network Interfaces To select other network interface cards, click Network  Network Card • Language Selection On the tool bar, select a language: Traditional Chinese, Simplified Chinese or English...

  • Page 37: Rmc-180 Ptz Camera Control Unit

    9. RMC-180 PTZ Camera Control Unit The RMC-180 PTZ Camera Controller is designed to control up to 4 Datavideo Pan Tilt Zoom (PTZ) cameras such as the PTC-150/PTC-150W. The four RJ-45 ports provided on the RMC-180 rear serve to connect PTZ cameras, thus allowing the user to use any RJ-45 cable to connect the RMC- 180 to the RS-422 port located on the PTZ camera’s rear panel.

  • Page 38: Firmware Update

    USB hard drive (<16 GB) and insert it into the USB port of PTC-150/PTC-150W (You may also use USB extension cord). 2) Open the operation menu of IR remote controller (select from CAM 1-4;...

  • Page 39: Dimensions

    11. Dimensions Unit: mm...

  • Page 40: Specifications

    12. Specifications Video Image Pickup Element 1/2.8” type progressive scan CMOS sensor Effective Picture Approx. 2.14 Mega pixels Elements Resolution HD / FHD / SD (CVBS only) HDMI & SDI: 1080p 59.94/50/29.97/25 1080i 59.94/50 Signal System 720p 59.94/50 CVBS: 480i, 576i S/N Ratio 50 dB Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
  • Page 41 Initialization Time 30 sec P, T, Z (While Panning , Tilting and Zooming ) by Coordinate Report frame Lens Lens Type 30x Optical Zoom F=4.3 mm (WIDE) to 129 mm (TELE) Focal Length F1.6 to F4.7 Angle of View Approx. 63.7 degrees (WIDE END) / 2.3 degrees (Horizontal) (TELE END) Video Output...
  • Page 42 NOTE...
  • Page 43 Note...

  • Page 44: Service & Support

    Service & Support It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, DATAVIDEO WORLDWIDE OFFICES please visit www.datavideo.com to access our FAQ section.
