- Page 1 PRODUC T CO D E S : M S 0 1 1 0 4 M S 0 1 1 0 5 Li -Te c h Ai r Li - Tech Ai r Pl us I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
Contents Contents INSTRUCTIONS FOR USE INTRODUCTION GENERAL SAFETY INFORMATION GETTING TO KNOW YOUR SCOOTER PRODUCT SPECIFICATIONS PUSHING AND TRANSPORTING THE SCOOTER 15 PARTS DISASSEMBLY ASSEMBLY ADJUSTING THE SCOOTER SWIVELING THE SEAT TO GET ON AND OFF ADJUSTING THE TILLER ANGLE TURNING THE SEAT OPERATING THE SCOOTER POWERING ON/OFF... -
Page 3: Instructions For Use
INDICATION FOR USE BEFORE DRIVING The scooter is a motorised electric scooter for use outdoors primarily on flat surfaces such as pavements, roads, parking lots and drive ways. It is intended to increase the mobility of people who are both physically and mentally capable of correctly assessing driving situations and reacting accordingly to them at any time. -
Page 4: Introduction
INTRODUCTION DEAR CUSTOMER With your Li-Tech Air scooter, you have now purchased a product which has been manufactured in accordance with the latest technical capabilities and based on the highest levels of user comfort. We have placed great focus on the simplest possible operation and long service life in both construction and material selection. -
Page 5: General Safety Information
GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS Before you operate your scooter, please read and understand all of the information provided with your scooter for your safety. As operating any vehicle, only drive with full alertness to ensure safety. Please observe the warnings below to avoid any damage or injury resulting from improper use of your scooter. - Page 6 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS reaching on the scooter and transferring to and from the scooter until you learn how to do it safely. • Get to know the areas where you plan to use your scooter. Look for hazards and learn how to avoid them.
- Page 7 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS • Exercise extreme caution when using oxygen in close proximity to electrical circuits and combustible materials. Contact your oxygen provider for information on using oxygen safely. • Do not change the settings of the controller. Please contact your approved service provider if you notice any change in your ability to control your scooter.
- Page 8 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS anything else other than your scooter. • Always grasp the connector itself when disconnecting any wires. Do not pull on electrical harnesses directly • Keep all charger power cord connectors clean, dry and away from sources of dampness at all times to prevent damage to the electrical system and /or personal injury.
- Page 9 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS should be used in the scooter. Replacement batteries should be obtained directly from an authorized provider to ensure conformity, fit, and function. • Always protect the batteries from freezing; for those living in cold climates, make sure you store the scooter properly.
- Page 10 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS control the speed of your descent. • The maximum recommended incline angles (see specifications) are tested in a controlled environment. Your scooter’s ability to climb up inclines is affected by your weight, speed and the angle you approach the incline among other factors.
- Page 11 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS handling greater obstacles, we recommend that you do not attempt to negotiate a curb that has a height greater than 2” (5cm). Doing so could cause instability in your scooter. Riding over curbs or obstacles can cause tipping and serious bodily harm. If you have any doubt that you can safely cross any curb or obstacle, ALWAYS ASK FOR HELP.
- Page 12 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS cold conditions. • Do not tow your scooter. Towing may exceed the maximum speed threshold, resulting in damage to critical components of the scooter. • Use extreme caution when it is necessary to move an unoccupied scooter up or down stairs.
- Page 13 GENERAL SAFETY INFORMATION PRODUCT SPECIFICATIONS during a transfer. Have someone help you until you are sure you do a safe transfer on your own. Move your scooter as close as you can to the seat you are transferring to. Transfer as far back onto the seat surface as you can.
-
Page 14: Getting To Know Your Scooter

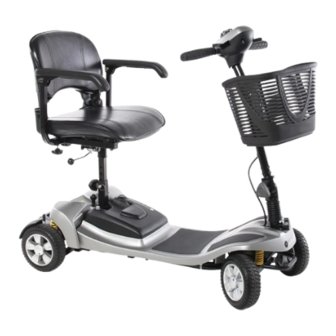

GETTING TO KNOW YOUR SCOOTER PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS Seat Seat Detachable seat with fold-down back Detachable seat with fold-down back Removable flip-up arm rest Removable flip-up arm rest Seat Control panel Control panel Detachable seat with fold-down back Basket Basket Removable flip-up arm rest Control panel... - Page 15 GETTING TO KNOW YOUR SCOOTER PRODUCT SPECIFICATIONS Throttle lever Battery gauge Horn button Key switch Power light Speed control dial 36.8 in 32.5-35.5 15.9-18.9 in 2.0 in...
-
Page 16: Product Specifications
Model Name Sm4232(UK) Sm4232(UK) Model Name Maximum weight capacity 250 lbs (113kg) Maximum weight capacity 250 lbs (113kg) Li-Tech Air Li-Tech Air Plus Maximum weight 297 lbs (135kg) 297 lbs (135kg) Overall height Overall height 35.5 in (900 mm) 35.5 in (900 mm) -
Page 17: Pushing And Transporting The Scooter
TRANSPORTING YOUR SCOOTER ADJUSTING THE SCOOTER 1. Please carefully read the safety information in section 3 related to transportation first. 2. Pushing the scooter: In order to push the scooter, you must place the scooter in “freewheel” mode, which disengages the drive motor. -
Page 18: Parts
TRANSPORTING YOUR SCOOTER ADJUSTING THE SCOOTER =Driving Mode:(Motor is engaged.) 1. Always switch the scooter off to push it. 2. Do not push the scooter too fast. If a pre-set speed is exceeded while you are pushing the scooter, the drive motor will switch on automatically and brake the scooter. - Page 19 TRANSPORTING YOUR SCOOTER ADJUSTING THE SCOOTER clearance to move the parts around. You may need assistance to lift some of the scooter components. 2. See “Specifications” individual component weights. 3. No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your scooter on a level, dry surface with sufficient space for you to work and move around your scooter.
-
Page 20: Disassembly
TRANSPORTING YOUR SCOOTER ADJUSTING THE SCOOTER 6.2 To Disassemble: 1. Turn key switch to “OFF”. 2. Place the free wheel mode lever in the drive position. 3. Pick up the battery pack and remove it from the scooter. (See Fig.) 4. -
Page 21: Assembly
TRANSPORTING YOUR SCOOTER ADJUSTING THE SCOOTER 6.3 ASSEMBLY Note: Raise the tiller before reassembling the scooter. 1. Place the freewheel mode lever in the drive position. 2. Set the rear section in the up position and pick up the front section to the connecting bracket of rear section. - Page 22 TRANSPORTING YOUR SCOOTER ADJUSTING THE SCOOTER 5. Fit the seat on the seat post, insert the seat post and screw the knob . 6. Turn key switch to “ON”, make sure battery gauge has sufficient power. Make sure you connect all the pieces together properly.
-
Page 23: Adjusting The Scooter
ADJUSTING THE SCOOTER OPERATING THE SCOOTER The following describes how to set up and adjust your Scooter in order to have a comfortable and safe drive. 7.1 SWIVELING THE SEAT TO GET ON AND 1. Lift the seat lever and rotate the seat to the side (left or right) to get on. -
Page 24: Turning The Seat
OPERATING THE SCOOTER ADJUSTING THE SCOOTER 2. Tighten the knob by turning clockwise, and make sure the tiller is securely fixed. Accident hazard due to non-engaged tiller: Ensure that the tiller is properly locked after adjustment by seeing that it doesn’t move when you try pushing it slightly forwards and backwards 7.3 TURNING THE SEAT Pull swivel seat lever to rotate the seat. - Page 25 OPERATING THE SCOOTER OPERATING THE SCOOTER ADJUSTING THE SCOOTER 2. Tighten the knob by turning clockwise, and make sure the tiller is securely fixed. Accident hazard due to non-engaged tiller: Ensure that the tiller is properly locked after adjustment by seeing that it doesn’t move when you try pushing it slightly forwards and backwards Accident hazard due to incorrect seat 7.3 TURNING THE SEAT...
-
Page 26: Operating The Scooter
OPERATING THE SCOOTER OPERATING Always carry out the safety information described in the “General Safety Information” section: Before starting to drive, adjust the seat and tiller to a comfortable position. WARNING! Every scooter is different. Take the time to learn the feel of your scooter before you begin riding. -
Page 27: Powering On/Off
OPERATING THE SCOOTER Ensure your scooter is in Check the “freewheel” drive mode (not in mode lever is in the “freewheel” mode) pushed down position Seat is locked into the Move the seat forwards desirable position and backwards to ensure it is stationary. -
Page 28: Driving Forwards And Backwards
OPERATING THE SCOOTER OPERATING THE SCOOTER 2. Tighten the knob by turning clockwise, and make sure the tiller is securely fixed. Accident hazard due to non-engaged tiller: Ensure that the tiller is properly Anticipated Speed levels: locked after adjustment by seeing that it doesn’t move c. -
Page 29: Overload Protection
OPERATING THE SCOOTER 8.4 OVERLOAD PROTECTION The overload protection switches the power off when the motor becomes overloaded while trying to climb over too high an obstacle, such as a curb or trying to climb too steep of an incline. If the motor is overloaded, the following happens: •... -
Page 30: Driving On An Incline
OPERATING THE SCOOTER 8.6 DRIVING ON AN INCLINE TIPPING HAZZARD! When driving on an incline reduce your speed. Lean your body forward to increase your stability and to avoid tipping backwards. Always avoid leaning backwards while driving up an incline. Observe the safe climbing angle in the product specifications and always access the driving surface, as this can be a factor for safe incline driving (For example ice and leaves can cause... -
Page 31: Battery And Charging
BATTERY AND CHARGING THE BATTERY Corrosive chemicals contained in battery. Explosive conditions exist! Warning hands pinching! Do not use batteries with different amp- hour (Ah) capacities. Keep tools and other metal objects away from battery terminals. Contact with tools can cause electrical shock. Flammable material contained in battery. -
Page 32: Battery Status Display
BATTERY AND CHARGING THE BATTERY The range per battery charge, using recommended batteries, should be approximately 8 to 12 hours of typical operation. Extensive use on inclines may substantially reduce per charge mileage. 9.1 BATTERY STATUS DISPLAY When the key is switched “ON”, the battery gauge will display the battery power capacity by indicating red,... -
Page 33: Charging The Batteries
BATTERY AND CHARGING THE BATTERY 9.2 CHARGING THE BATTERIES It is imperative that you observe the sequence for connecting and disconnecting the battery charger. Be sure to follow the procedures shown below accordingly. 1. Turn the scooter key switch to ”OFF”. 2. - Page 34 BATTERY AND CHARGING THE BATTERY Step 1. Position the scooter near an electric outlet. Step 2. Switch the scooter off and remove the key. Step 3. Ensure the lever for “freewheel” mode is pushed down to the “drive” position.
- Page 35 BATTERY AND CHARGING THE BATTERY Step 4. Connect the battery charger plug into the scooter charging socket located in the center of the battery box. Step 5. Connect the battery charger power plug into an electrical outlet (AC100-240V, 50 to 60 Hz) and charge the battery.
-
Page 36: After Charging
BATTERY AND CHARGING THE BATTERY LED information at battery charger during Charging: LED-> Color-> Meaning 1 --- Red --- charging in progress 2 --- Green --- charging is complete 9.3 AFTER CHARGING (1) Remove the battery charger jack plug from the battery box socket. - Page 37 BATTERY AND CHARGING THE BATTERY Check the battery The controller is charger connector. being inhibited Remove the battery from driving. charger from the scooter. Make sure that the A speed control speed control lever is in lever fault is the rest position before indicated.
-
Page 38: Emi
This portion of the content will provide the user with basic information about the problems with EMI (electromagnetic interference), protective measures can be used to either lessen the possibility of exposure or to minimize the degree of exposure; this section also shows some conditions that unexpected or erratic movements may cause. - Page 39 There are a number of sources of relatively intense electromagnetic fields in the everyday environment. Some of these sources are obvious and easy to avoid. Others are not apparent and exposure is unavoidable. However, we believe that by following the warning listed below, your risk to EMI will be minimized.
- Page 40 POWERED SCOOTER ELECTROMAGNETIC INTERFERENCE (EMI) EM energy rapidly becomes more intense as one moves closer to a transmitting antenna (source). The EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the powered scooter’s control system while using these devices;...
- Page 41 IMPORTANT INFORMATION 20 Volts per meter (V/m) is generally a useful immunity level against EMI (the higher the level, the greater the protection). This product has an immunity level of 20 V/m without any accessories connected to it.
-
Page 42: Warranty
WARRANTY 11. WARRANTY There is a comprehensive twelve-month warranty from the date on which your new scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more details, please see the Warranty Conditions below: Warranty Conditions: •... - Page 43 All figures, measurements and capacities shown in this manual are approximate and do not constitute specifications. UK AUTHORISED DEALER CareCo UK Ltd Tel: (+44) 01277 237001 Hubert Road Brentwood Email: CS@careco.co.uk...
