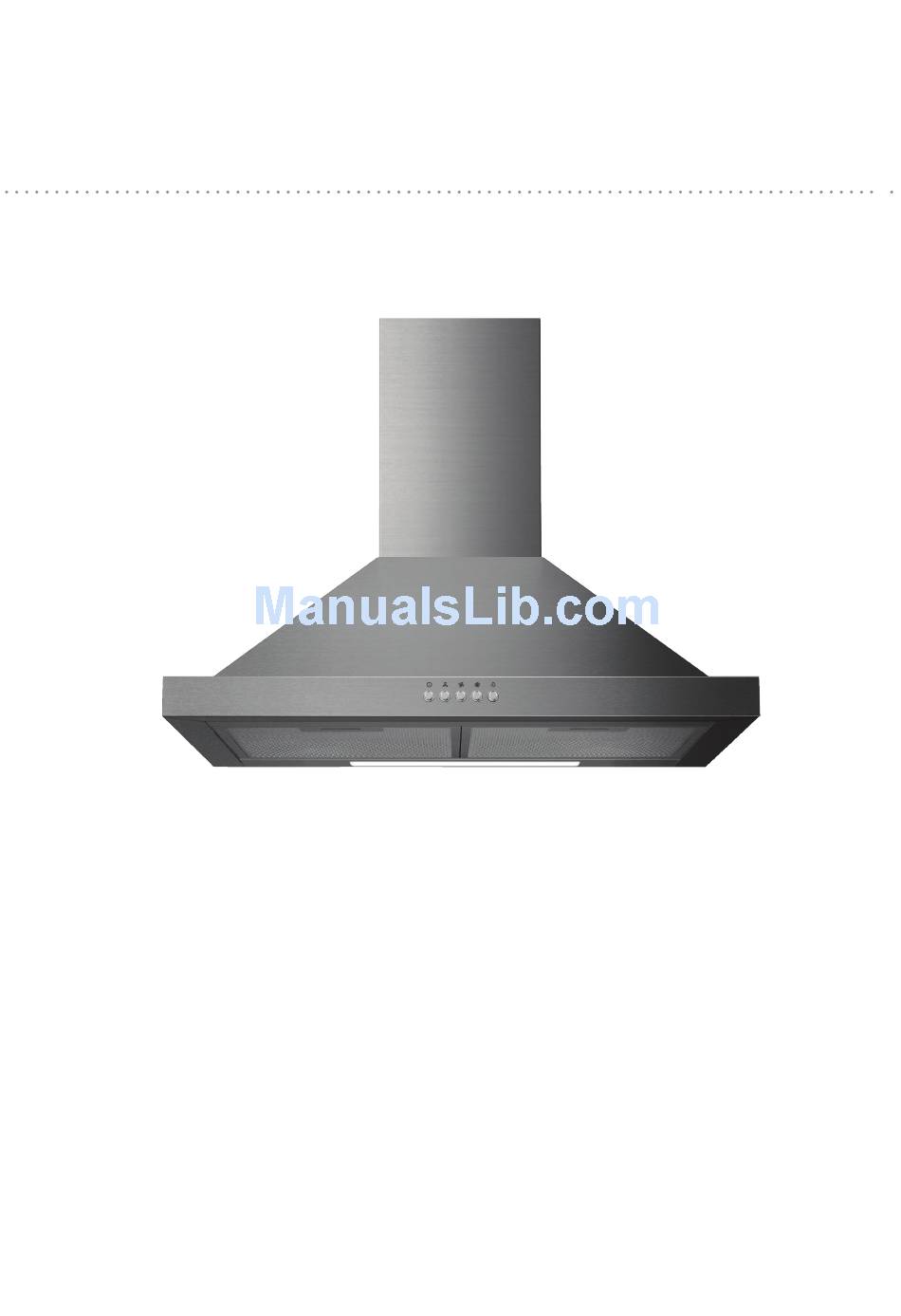

- Page 1 Cooker Hood Instruction Manual CHM60SS 60CM STAINLESS STEEL CHIMNEY HOOD Please read these instructions carefully before use and retain for future reference...
- Page 3 CONTENTS Warnings ...............3 Safety Warning ..............4 Installation ..............4-7 Useage guide ............7-8 Maintenance .............. 8-9 Troubleshooting .............9 Disposal, servicing & parts ..........12 Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully.
- Page 4 • If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller. • If the plug or cord is damaged, please call after-sale service department. • There is a fire risk if cleaning is not carried out in accordance with the instructions. • In case of a damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians. • Use the unit according to the instructions to avoid fire hazard. • The exhaust air must be not be introduced into a smoke flue or chimney that is used for exhausting fumes from appliances burning gas. • Follow the local laws applicable for external air evacuation. • Do not flambé under the cooker hood Feature • The cooker hood is made of high quality materials in a streamlined design. • Equipped with high power and low noise electric motor, the cooker hood produces strong suction and low noise. • Special wind tunnel construction, free dirt will be absorbed in a second. Notice of Installation • It can not share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. There will be hazard of underpressure, combustion impaired and harmful gases drawn back. • The bending of ventilation tube should be ≥120°,parallel or above the start point/should be connected to the external wall. • Please make sure the installation plate is placed horizontally to avoid grease collection at one end. See Fig.1.
- Page 5 Fig.2 Fig.3...
- Page 6 Installation • Accessories. See Fig.3. (Type and quantity of accessories is subject to actual demand.) • Fix installation plate and extension chimney installation plate, See Fig.4. • Fix the exhaust pipe, See Fig.5. • Hang cooker hood on the installation plate. See Fig.6. • After connecting the exhaust pipe well, lock screws (M5*12) to prevent the cooker hood from accidently sliding off the installation plate. See Fig.7. • Fix the chimney. See Fig.8. • Fix the extension chimney. See Fig.9. • Fix the grease filter at the bottom of the cooker hood. (If removed at the beginning.) Fig.4 Fig.5 Fig.6 Fig.7...
- Page 7 Fig.8 Fig.9 Usage guide Fig.10.1 Speed adjustment. See Fig 10.1 • Press Stop button, the motor will stop running. • Press the Low (speed) button, the motor runs at low speed • Press the Mid (speed) button, the motor runs at mid speed • Press the High (speed) button, the motor runs at high speed. • Press the Light button, the 2 lighting lamps will come on. • Press it again and the lamps will be turned off. Speed adjustment. See Fig.10.2 (For some models) Fig.10.2 • After plugging in, the cooker hood will buzz once to declare it is connected to power supply. • After connection - Press the Power button once and motor will run at low speed and light will come on, both Low button and Light button will be turned on. If Power button is pressed when cooker hood is turned on, it will enter a 3 minute delay shutdown state, press Power button again to turn the cooker hood off immediately. • Press the Light button once and the lamps will be on • Press the Light button again and the lamps will be turned off • Press the Low (speed) button, the motor runs at low speed • Press the Mid (speed) button, the motor runs at med speed • Press the High (speed) button, the motor runs at High speed • If Low, Mid or High (speed) button is pressed when in 3 minute delay shutdown state, it will cancel the delay shutdown and the motor will continue to run at the required speed...
- Page 8 Speed adjustment. See Fig.10.3 (For some models) Fig.10.3 • After plugging in, the cooker hood will beep and all key lights will illuminate for 1 second to declare it is connected to power supply. • After connection - Press the Power button once and motor will run at low speed, the digital screen will display “Setting No.1”. If Power button is pressed when cooker hood is turned on, it will enter a 3 minute delay shutdown state, the power key flashes at 1 second intervals, indicating that delayed shutdown mode has been set. press Power button again to turn the cooker hood off immediately. • Press the Light button once and the lamps will be on and light key will be illuminated. • Press the Light button again and the lamps will be turned off and the light key will turn off. • Plus (+) button will only operate when in power-on state. Press once and the speed will increase by one setting, the digital screen will display the corresponding setting. When the Plus (+) key is pressed down, the Plus (+) Key will illuminate. When at the highest setting, the cooker hood will beep to indicate maximum setting reached. • Minus (-) button will only operate when in power-on state. Press once and the speed will decrease by one setting, the digital screen will display the corresponding setting. When the Minus (-) key is pressed down, the Minus (-) Key will illuminate. When at the lowest setting, the cooker hood will beep to indicate minimum setting reached. Replace Halogen Lamp Allow the lamp to cool down before replacing. • First, remove the lamp cover • Unscrew the defective halogen lamp and replace it with a new one (power:40W) • Replace the lamp cover carefully; making sure it’s in position. Cleaning the Cooker Hood • Before cleaning, ensure the power is off.
-
Page 9: Troubleshooting
Replacement of the carbon filters (optional) • Remove the filters see Fig.11. • The carbon filters are located at both end of the motor. Turn the carbon filters until they are locked. See Fig. 12. • Apply reverse procedure to • It should be replaced after approximately 2-3 months of use. • The carbon filer cannot be washed or recycled. • Carbon filter is not supplied with your appliance. Troubleshooting Fault Cause Solution Light on, but motor does The blades are blocked not work The capacitor is damaged Replace capacitor The motor is damaged Replace motor The internal wiring of motor Replace motor is cut off/disconnected. An unpleasant smell may produce Apart from the above mentioned, check the following: Both light and motor do not work Light damaged Replace lights Power cord loose Connect the wires as per the electrical diagram Oil leakage... - Page 10 Electrical Diagram • See label on main body of the actual product. Main Parameters Voltage 220-240 ~ 50Hz Rated Power 205W Lighting Power 40W X 2 Motor Power 125W Motor Single Motor Inner diameter of Air tube 150mm Air output 400m < 61dB Noise The air flow parameter is tested under conditions of 230V 50Hz when the voltage is 220-240V~ 5 0Hz and without carbon filters.
- Page 12 Disposal The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on: 0844 848 5861 Please have the following details ready; • Model Name/ Model Number • Serial Number • Date of Purchase • Where Purchased • Customer Name and address including post code • Contact Telephone Number • Accurate description of the fault Spare Parts information can be obtained by calling our Spare Parts Department on: 0844 848 5862...
