Summary of Contents for STATESMAN CGH160GS

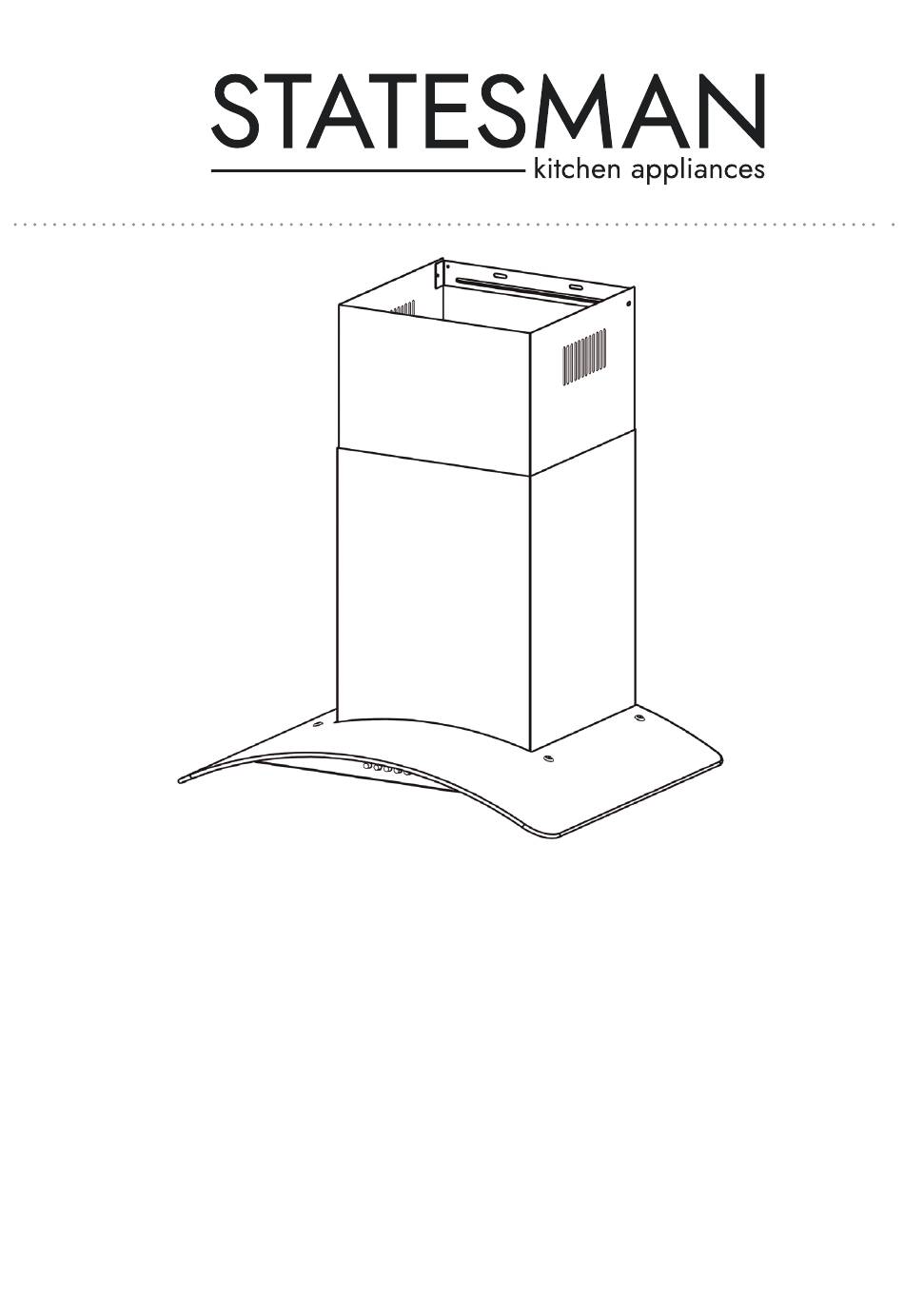

- Page 1 CGH160GS CHIMNEY HOOD STAINLESS STEEL CURVED GLASS Instruction Manual PO number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Safety Instructions ............3-5 Appliance Overview ............5-6 Installation ..............7-10 Operating Instructions ............11 Cleaning and Maintenance ........12-13 Fuse Replacement ............13 Troubleshooting ..............14 Service & Disposal Information ........15... -
Page 3: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please ensure you read all instructions and warnings in this user guide prior to first use. Keep this user guide for future reference. • The installation and repair work must be undertaken by a qualified and competent person. • The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions of installation. - Page 4 appliance. • Do not check that status of the filters whilst the cooker hood is operating. • Do not touch the light bulb within half an hour after appliance is used. • If any fault occurs with the appliance, please call after-sale service department. • Please keep the kitchen well ventilated when in use. • Prior to any maintenance or cleaning, ensure the power is off. • Constantly check food frying to avoid the overheating of oil which may become a fire hazard. • If the supply chord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller. • If the plug or cord is damaged, please call after-sale service centre. • There is a fire risk if cleaning is not carried out in accordance with the instructions. • In case of a damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians.
-
Page 5: Appliance Overview
hot water & non-corrosive detergent every 2 months. CAUTION: Accessible parts may become hot when used with a cooking appliance APPLIANCE OVERVIEW Qty. Component Hood Body, complete with: Controls, Light, Blower, Filter. Lower Decorative Chimney Upper Decorative Chimney Flange (optional) Exhaust Pipe The Activated Charcoal filter (optional) Screws 5 x 50 Wall Plugs Screws 4.2 x 9.5 Chimney fixing bracket... -
Page 6: Dimensions (Mm)
Dimensions (mm) -
Page 7: Installation
INSTALLATON Wall Drilling and Bracket Fixing Vertical reference line As a first step, proceed with the following drawings: • A veritcal line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted. • The cooker hood should be placed 650-750mm (horizontal line A) up from the cooking plane for safe and a good effect. • A horizontal line B at a minimum 800-900mm above the cooker top. • A horizontal line C at a 272 mm above the B. • A horizontal line D at 470-790mm above the cooker hood. Mark Points: • Mark a point (1) on the horizontal line D, 60mm to the vertical reference line. • Repeat this operation on the other side, checking that the three marks are leveled. - Page 8 • Mark a point (2) on the horizontal line C, 60 mm to the vertical reference line. • Repeat this operation on the other side, checking that the three marks are leveled. • Mark a point (3) on the horizontal line B, 80 mm to the vertical reference line. • Repeat this operation on the other side, checking that the three marks are leveled. Fix the brackets: • Drill holes at the marked points with a 10 mm drill bit. Insert the • Wall Plugs into the holes. • Fix the Screws (5 x 50) bracket 6 with X2 screws supplied with the hood at the horizontal line B. • Chimney fixing bracket 9 with X2 screws 6 (ST5x50) supplied with the hood at the horizontal line D.
- Page 9 Hook the hood body • To mount on the wall, drill two 10mm. • Insert two plastics wall plugs (supplied) into the holes. • Insert two screws (ST5*50) 6 into the upper two plastic wall plugs, and tighten them leaving 3mm, protruding from the Wall. • Mount the hood on the top screws, Insert the bottom screws and fully tighten all the screws. Right Wrong Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ɸ 150 or ɸ 120mm, the choice of which is left to the installer. • If to install a ɸ 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet. • Fix the pipe 4 in position using sufficient pipe clamps (not supplied). • Remove possible charcoal filters.
- Page 10 Chimney Assembly Upper Decorative Chimney • Insert the upper decorative chimney 2b into the lower decorative chimney 2a and drag it up to the horizontal line D. • Connect upper decorative chimney 2b and chimney fixing bracket 9 with X2 screws 8.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS OFF MOTOR SWITCH: Press on this switch to stop the motor operation. SPEED SWITCH: Press on this switch, the motor runs at LOW speed. SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed. SPEED SWITCH: Press on this switch, the motor runs at HIGH speed. ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights, and press again to turn them off. -
Page 12: Cleaning And Maintenance
CLEANING & MAINTENANCE Grease Filters: Cleaning Metal Self-Supporting Grease Filters • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Pull the comfort panels to open them. • Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards. • Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency). -
Page 13: Bulb Replacement
Bulb Replacement Disconnect the power supply before replacing the light modules Loosen Screw Take out the junction box Take out Led Max Power Voltage Picture Lamp Cap ILCOS D code Self-ballasted DBS-1.5- 1.5W 220-240V~ —— LED modules H-33.2/120 Square / Diameter : 33.2mm x 120mm MAINS PLUG FUSE REPLACEMENT Fuse Replacement (Class I) This appliance must be earthed. -
Page 14: Troubleshooting
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Note: Any repairs should be done by a qualified technician. Fault Cause Solution Light on, but motor does Remove blockage The blades are blocked not work... -
Page 15: Service And Spare Parts
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on: 01473 277 508 Please have the following details ready;... - Page 16 UK Address: 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR EU Address: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508...
