STATESMAN VH160SS Instruction Manual

60cm visor cooker hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

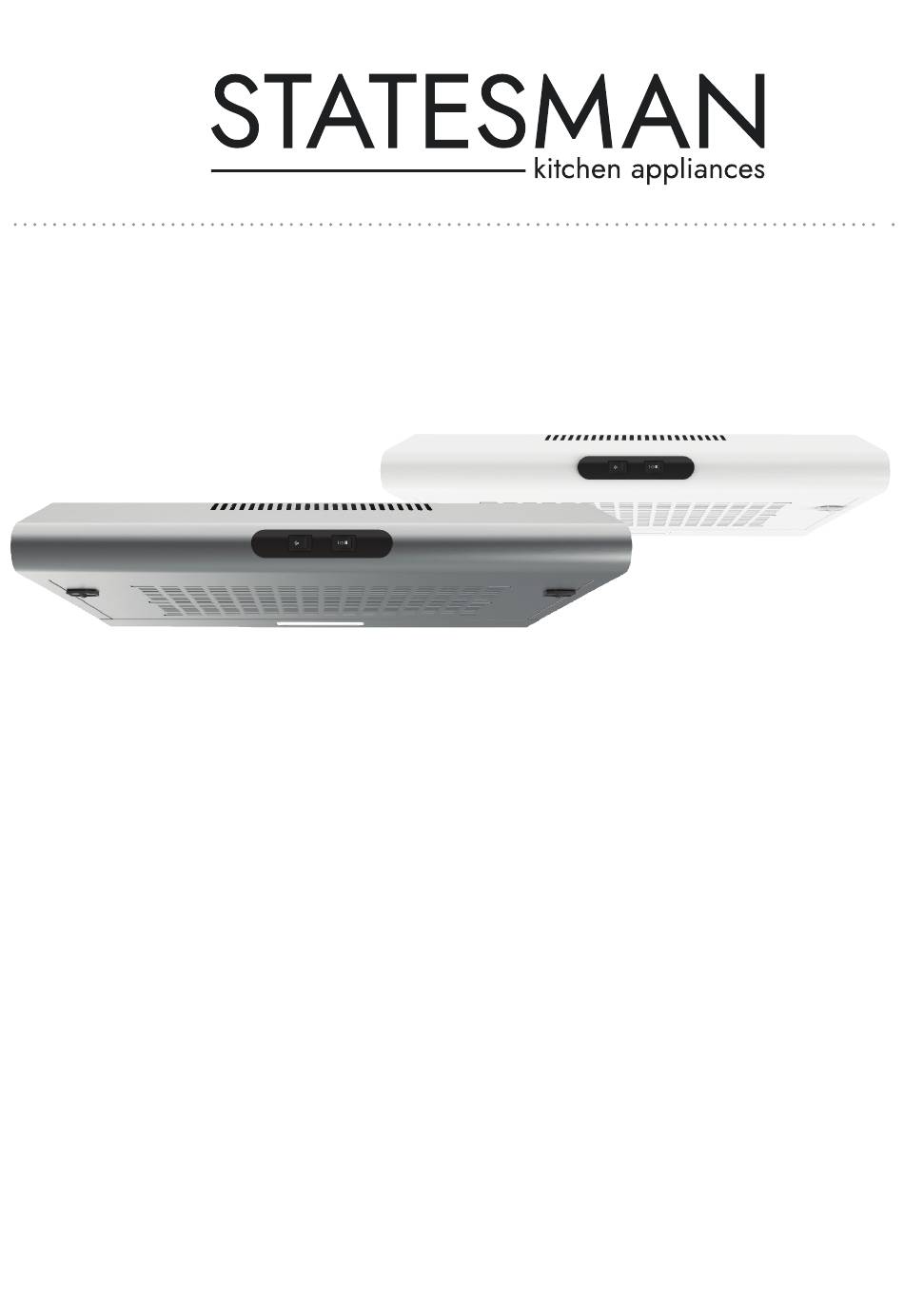

VH160SS / VH160WH
60CM VISOR COOKER HOOD
Instruction Manual
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VH160SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STATESMAN VH160SS

Summary of Contents for STATESMAN VH160SS

  • Page 1 VH160SS / VH160WH 60CM VISOR COOKER HOOD Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ........3-4 Appliance Overview ............5 Installation ..............6-12 Operating Instructions ..........13-14 Cleaning and Maintenance ..........15 Troubleshooting ..............16 Fuse Replacement ............17 Disposal Information ............17 Statesman Warranty Information ......18-19...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please ensure you read all instructions and warnings in this user guide prior to first use. Keep this user guide for future reference. • The installation and repair work must be undertaken by a qualified and competent person. • The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions of installation.
  • Page 4 • If any fault occurs with the appliance, please call after-sale service department. • Please keep the kitchen well ventilated when in use. • Prior to any maintenance or cleaning, ensure the power is off. • Constantly check food frying to avoid the overheating of oil which may become a fire hazard. • If the power cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard.

  • Page 5: Appliance Overview

    APPLIANCE OVERVIEW Components 1. Air Duct Assembly 2. Body 3. Filter Assembly Also includes: • Check Valve • Air Outlet Cap • Installation Screws Selection of venting direction A. Ductless B. Vertical Discharge C. Horizontal Discharge Important The air must be discharged into a flue used for exhausting fumes from appliances burning gas or other fuels. Discharge regulations must be adhered to.

  • Page 6: Installation

    INSTALLATON WALL DRILLING AND BRACKET FIXING Please read the instructions carefully. • Unpack the canopy and check that all functions are working. Ensure that the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency at the installation site. • Check that the area behind the installation surface to be drilled is clear of any electrical cables or pipes, etc.
  • Page 7 Recirculation Mode Recirculation mode means that the air is re-circulated back into the kitchen. This method is suggested when heavy cooking with a lot of steam, smoke etc. It is not necessary to remove any duct knockouts for this. Filters should be used to help remove cooking odours.
  • Page 8 Extraction-air mode If you choose extraction-air mode, there are two methods for ventilation, including ‘horizontal ventilation’ and ‘vertical ventilation’. Please use a tool to take out the cover before using and install check valve on the hole. The square air check valve for horizontal ventilation is not supplied. Ensure the power has been turned off before beginning this installation.
  • Page 9 1. Remove the hood from the packaging. 2. Lay the hood upside down on a table covered with cardboard or paper to prevent scratching or scuff marks. 3. Hood Installation should be within 0.8m radius range. 4. It is recommend that the bottom of the hood should be less than 650mm and no more than 750mm above the heating elements and/or burners.
  • Page 10 IMPORTANT When assessing the air pressure, the ventilation system of the whole house/apartment must be taken into consideration, e.g. hob and gas cookers. Government regulations must be adhered to for the extraction of exhaust air. If the extractor hood is used without a duct (air circulating mode) but with an activated carbon filter, there are no operating restrictions.
  • Page 11 Method 2 - Attaching to the Wall IMPORTANT When cutting or drilling holes into the wall or ceiling, make sure not to damage electrical wiring or other hidden utilities. 1. To mount onto the wall, drill 2 x 10mm diameter holes, 538mm apart from one another as shown in the below picture.
  • Page 12 Carbon Filter Installation 1. Remove the grease filter and then remove the iron wire. 2. The filter cotton is located on the metal mesh and fixed by two iron wires. 3. To replace with a new carbon filter, reverse the steps to install. WARNING: The filter cotton cannot be washed or recycled. It should be replaced after approximately 2-3 months of use. Please Note: Filter cotton is not supplied with your appliance.

  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS Lamp On Light Lamp Off Motor High Max Power Voltage Picture ILCOS D Code LED Modules 1.5W 220-240V~ DBS-1.5- (Self-ballasted) H-33.2/120 Square/Diameter 33.2mmx120mm Replacing the Bulb IMPORTANT Before replacing the light bulb double check that the cooker hood is secure.
  • Page 14 1. Switch off the extractor hood and isolate it by removing the mains plug or switching off the fuse. 2. Remove the grease filter. 3. Remove the light by levering it out of the hood body. This may require some pressure or force. Ensure that this is not excessive and done so carefully. 4. Disconnect the light connection. 5. Replace the light with a new bulb (same model). Make sure that the light connection is attached correctly.

  • Page 15: Cleaning And Maintenance

    CLEANING & MAINTENANCE Disconnect range hood from power supply before cleaning or servicing. 1. Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood. 2. Do not use harsh abrasives. 3. Avoid the use of scouring powders or dishwasher compounds. 4.

  • Page 16: Troubleshooting

    TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 01473 277 508. Please have the model code and purchase information available. Please Note: Any repairs should be done by a qualified technician.

  • Page 17: Fuse Replacement

    FUSE REPLACEMENT (CLASS I) Fuse Cover This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste.

  • Page 18: Statesman Warranty Information

    STATESMAN WARRANTY/GUARANTEE TERMS & CONDITIONS THANK YOU FOR CHOOSING STATESMAN As a valued customer we would like to offer you a FREE 2-year warranty to cover your product against any electrical or mechanical defects. This means that in the unlikely event you develop a fault or problem with your product we will happily repair or replace the item free of charge.
  • Page 19 Please quote the Product Code and the PO number on the rating label and give details of the exact fault. We will then decide whether to replace the item. IMPORTANT NOTE: Before we arrange the replacement, you will be required to return a copy of your proof of purchase. Please retain your original.
  • Page 20 UK Address: 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR EU Address: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508...

This manual is also suitable for:

Vh160wh
