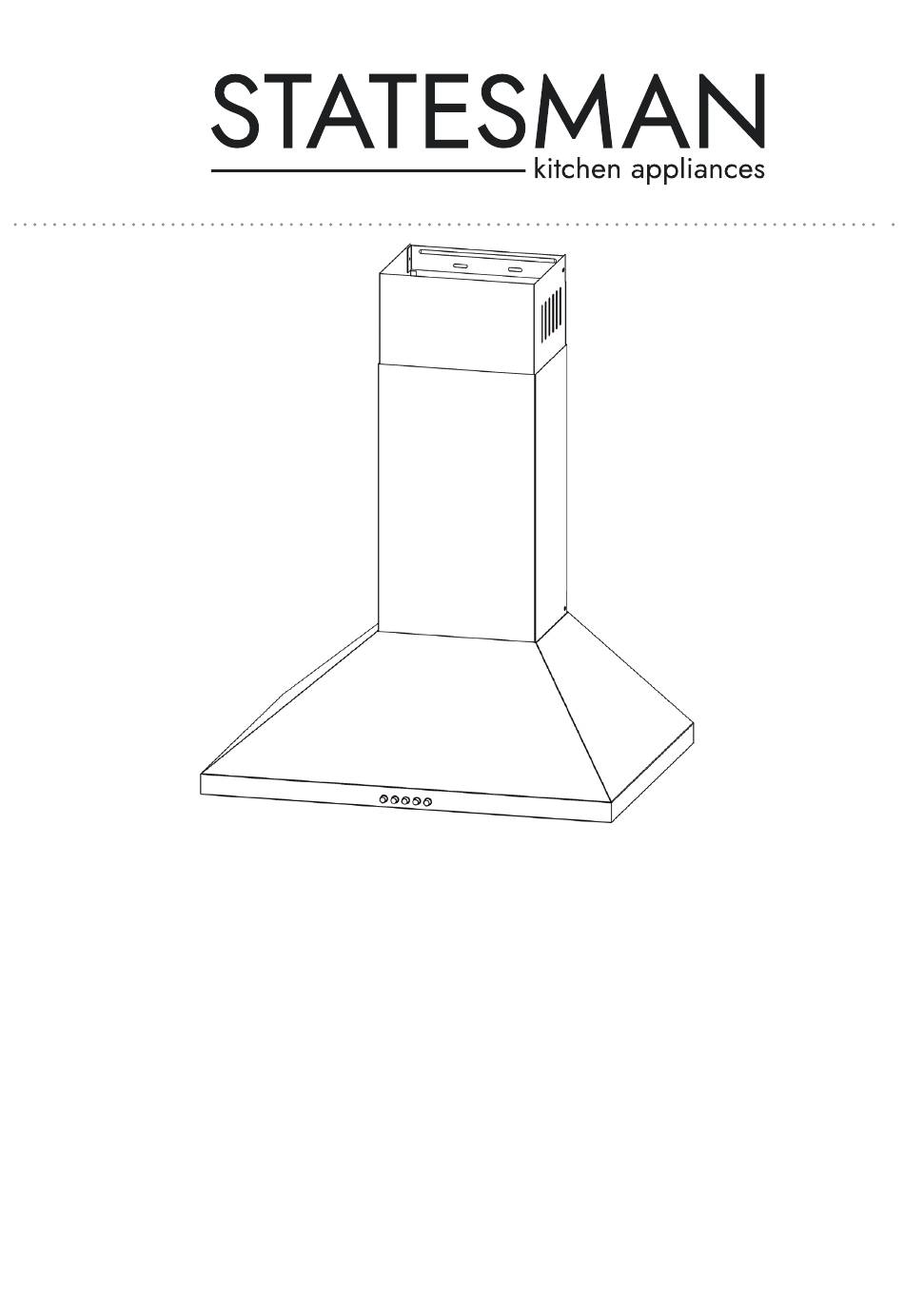

- Page 1 CHM160SS 60CM CHIMNEY COOKER HOOD STAINLESS STEEL Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3-4 Appliance Overview ............5-6 Installation ..............7-10 Operating Instructions ............10 Cleaning and Maintenance ........11-12 Troubleshooting ..............13 Fuse Replacement ............14 Disposal Information ............14 Statesman Warranty Information ........15... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please ensure you read all instructions and warnings in this user guide prior to first use. Keep this user guide for future reference. • The installation and repair work must be undertaken by a qualified and competent person. • The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions of installation. - Page 4 • If any fault occurs with the appliance, please call after-sale service department. • Please keep the kitchen well ventilated when in use. • Prior to any maintenance or cleaning, ensure the power is off. • Constantly check food frying to avoid the overheating of oil which may become a fire hazard. • If the power cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard.
-
Page 5: Appliance Overview
APPLIANCE OVERVIEW Qty. Component Hood Body, complete with: Controls, Light, Blower, Filter. Lower Decorative Chimney Upper Decorative Chimney Flange (optional) The Activated Charcoal filter (optional) Screws 5 x 50 Wall Plugs Screws 4,2 x 9,5 / Screws 4 x 8 Chimney fixing bracket... -
Page 6: Dimensions (Mm)
Dimensions (mm) Option Chimney 400+0 400+300 610-850 400+390 610-940... -
Page 7: Installation
INSTALLATON Wall Drilling and Bracket Fixing Option Chimney 400+0 410-650 400+300 400+390 410-740 As a first step, proceed with the following drawings: • A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted. • A horizontal line A at 835-935 mm above the cooker top. • A horizontal line B at a X mm above the horizontal line A. - Page 8 Mark Points: • Mark a point (1) on the horizontal line A, 80mm to the vertical reference line. • Repeat this operation on the other side, checking that the two marks are leveled. • Mark a point (2) on the horizontal line B, 40mm to the vertical reference line.
- Page 9 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ɸ 150 or ɸ 120mm, the choice of which is left to the installer. • If to install a ɸ 120mm air exhaust connection, insert the reducer flange 3 on the hood body outlet. • Fix the pipe 4 in position using sufficient pipe clamps (not supplied). • Remove possible charcoal filters. Chimney Assembly The chimney can only be installed with exhausting hood. Lower Decorative Chimney • Fix the Lower Decorative Chimney to the hood body with 2 screws 12 (4.2 x 9.5) supplied with the hood.
-
Page 10: Operating Instructions
Upper Decorative Chimney • Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood. OPERATING INSTRUCTIONS OFF MOTOR SWITCH: Press on this switch to stop the motor operation. SPEED SWITCH: Press on this switch, the motor runs at LOW speed. SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed. SPEED SWITCH: Press on this switch, the motor runs at HIGH speed. -
Page 11: Cleaning And Maintenance
CLEANING & MAINTENANCE Grease Filters: Cleaning Metal Self-Supporting Grease Filters • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards. • Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are... -
Page 12: Bulb Replacement
Bulb Replacement Disconnect the power supply before replacing the light modules • Remove the grease filter. • Remove the light by levering its fitting from the hood body (this may require pressure or force to be applied). • Disconnect the connector of the light. • Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly. • Reconnect the power by inserting the mains plug or by switching on the fuse. Max Power Voltage Picture Lamp Cap ILCOS D code... -
Page 13: Troubleshooting
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Note: Any repairs should be done by a qualified technician. -
Page 14: Fuse Replacement
FUSE REPLACEMENT (CLASS I) Fuse Cover This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. -
Page 15: Statesman Warranty Information
You can instantly activate your 24 month warranty by visiting www.statesman.warrantyonline.co.uk. Once your registration has been processed you will receive confirmation of your warranty. The warranty does not cover accessories or consumable parts that require replacement under normal use. This includes shelving, dials, filters, belts and trays... - Page 16 UK Address: 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR EU Address: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508...
