Summary of Contents for STATESMAN CH53SS

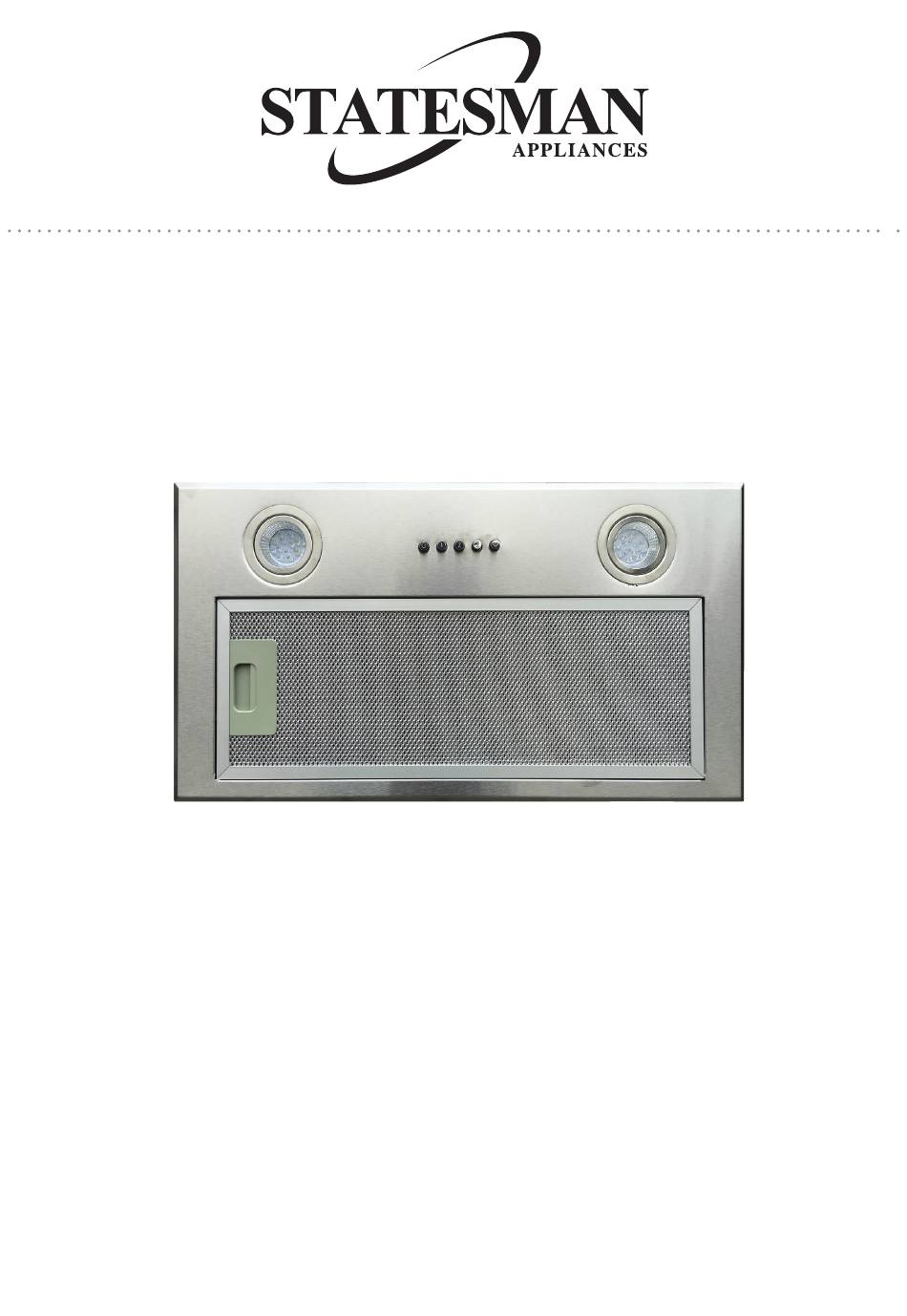

- Page 1 CH53SS 53CM CANOPY HOOD Instruction Manual Serial number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3 Specification ..............4 Appliance Overview ............5 Installation ..............5-6 Operating Instructions ...........7 Cleaning and Maintenance ..........8 Trouble Shooting Guide ..........9 Fuse Replacement ............10 Disposal Information ...........10... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for indoor domestic household use only. When using electrical appliances, basic safety precautions should always be followed: 1. -
Page 4: Specification
TECHNICAL SPECIFICATIONS - CGH60GS Trade Mark Statesman Model Number CH53SS Category Type Hood Energy Efficiency Class Annual Energy Consumption (kWh/a) 77.5 Fluid Dynamic Efficiency Lighting Efficiency Grease Filter Efficiency Time Increase Factor Measured Air Flow Rate at Best Efficiency Point (m3/h) 214.8... -
Page 5: Appliance Overview
Carbon Filters are optional extras, they are available to be purchased from Statesman Spares Department. Carbon Filters are neither washable nor reusable. - Page 6 Min. 650mm 259mm 13mm 497mm 410mm 150mm 256mm 245mm 284mm 492mm 520mm • Remove the Filter from the appliance by pressing the lock catch. • Remove the stainless steel frame by unscrewing the four screws (M4*10). • Remove the screws (ST4*12) on the lid of the terminal box, and disconnect the wires to the control panel.
-
Page 7: Operating Instructions
• Reconnect the disconnect wires to the control panel and light connectors. • Replace the metal filter by putting in one side first then the other side can be gently pushed in. • The air outlet pipe can now be connected to the appliance and feed through the pre-drilled outlet hole Important: Ensure the exhaust hole is not bent more than 90°... -
Page 8: Cleaning And Maintenance
• Place the carbon filters on either end of the motor and turn in a clockwise direction to lock and anti-clockwise to remove. • Carbon Filters are optional extras, they are available to be purchased from Statesman Spares Department. • Carbon Filters are neither washable nor reusable. -
Page 9: Trouble Shooting Guide
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible cause Solution... -
Page 10: Fuse Replacement
FUSE REPLACEMENT (Moulded Plug Top – Class I) Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. - Page 12 Ipswich, IP3 9RR 0844 848 5861 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
