STATESMAN ACH60BL Instruction Manual

60cm angled chimney cooker hood black glass
Hide thumbs

Advertisement

Quick Links

Download this manual
ACH60BL
60CM ANGLED CHIMNEY COOKER HOOD
BLACK GLASS
Instruction Manual
Serial number:
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACH60BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STATESMAN ACH60BL

Summary of Contents for STATESMAN ACH60BL

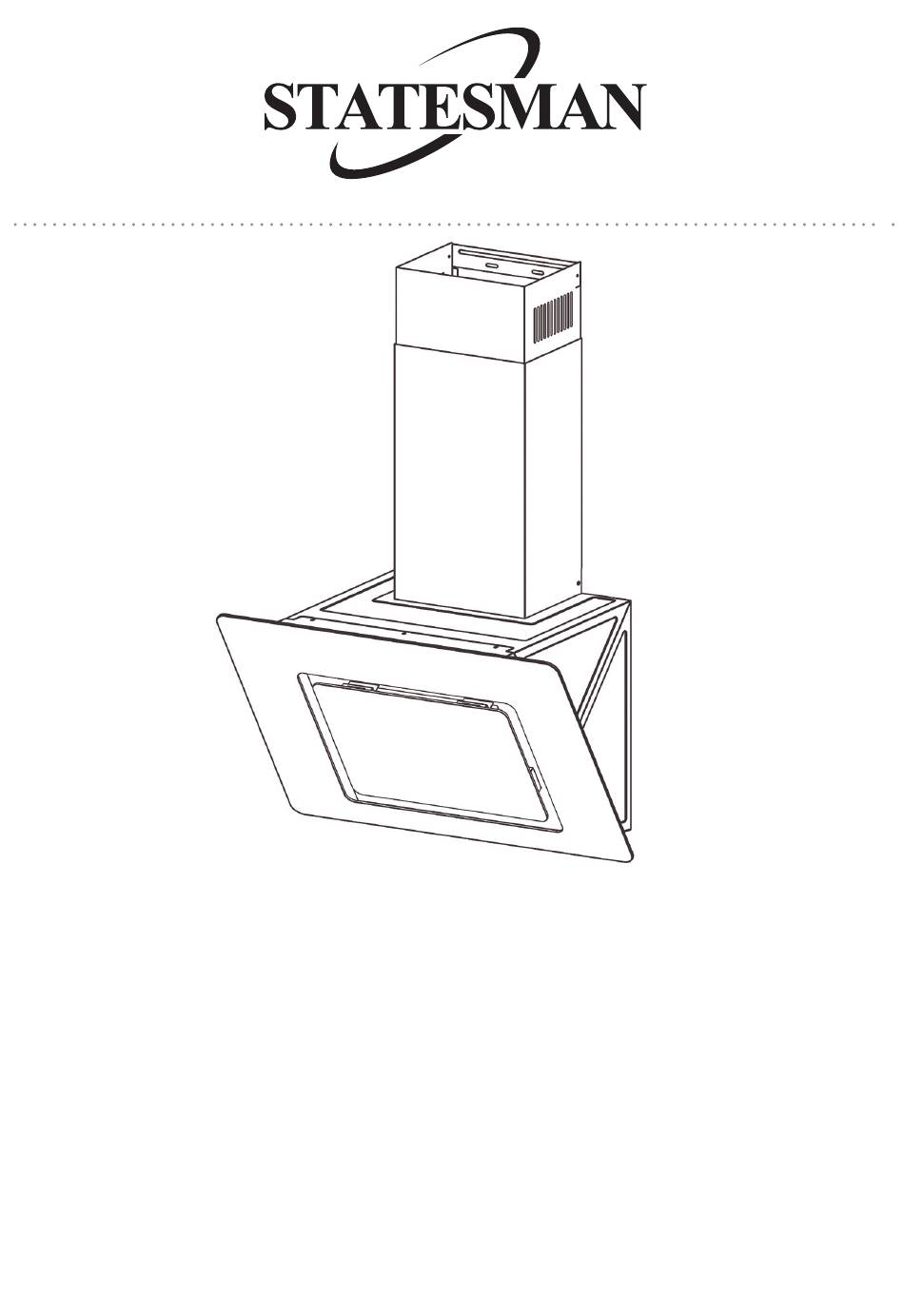

  • Page 1 ACH60BL 60CM ANGLED CHIMNEY COOKER HOOD BLACK GLASS Instruction Manual Serial number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.

  • Page 2: Table Of Contents

    CONTENTS Safety Instructions ............3-5 Appliance Overview ............5-6 Installation ..............7-11 Operating Instructions ............11 Cleaning and Maintenance ........12-13 Fuse Replacement ............13 Troubleshooting ..............14 Service & Disposal Information ........15...

  • Page 3: Safety Instructions

    Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.
  • Page 4 • The cooker hood and its filter mesh should be cleaned regularly according to the instructions. • Do not use open flame, or allow oil to go beneath the appliance. • Do not check that status of the filters whilst the cooker hood is operating. • Do not touch the light bulb within half an hour after appliance is used. • If any fault occurs with the appliance, please call after-sale service department. • Please keep the kitchen well ventilated when in use. • Prior to any maintenance or cleaning, ensure the power is off. • Constantly check food frying to avoid the overheating of oil which may become a fire hazard. • If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller. • If the plug or cord is damaged, please call after-sale service centre.

  • Page 5: Appliance Overview

    exhausting fumes from appliances burning gas or other fuels. • To protect the main body from corrosion of the long term accumulation of dirt, the cooker hood should be cleaned with hot water & non-corrosive detergent every 2 months. CAUTION: Accessible parts may become hot when used with a cooking appliance APPLIANCE OVERVIEW Qty. Component Hood Body, complete with: Controls, Light, Blower, Filter. Lower Decorative Chimney (optional) Upper Decorative Chimney (optional) Flange (optional) Exhaust Pipe The Activated Charcoal filter (optional) Screws 5 x 50 Wall Plugs Screws 4.2 x 9.5 Mounting Bracket 10.
  • Page 6 Dimensions...

  • Page 7: Installation

    INSTALLATON Wall Drilling and Bracket Fixing 10. As a first step, proceed with the following drawings: • A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted. • A horizontal line A at 1270–1560 mm above the cooker top. • A horizontal line B at a minimum 887 (840 optional) mm above the cooker top. • A horizontal line C at a minimum 717mm above the cooker top. Mark Points: • Mark a point (1) on the horizontal line A, 40 mm to the right of the vertical reference line. • Repeat this operation on the other side, checking that the two marks are leveled.
  • Page 8 • Mark a point (2) on the horizontal line B, 80 (135 optional) mm to the right of the vertical reference line. • Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled. • Mark a point (3) on the horizontal line C, 112.5 mm to the right of the vertical reference line. • Repeat this operation on the other side, checking that the two marks are on the same horizontal line. Fix the brackets (Optional): • Drill at the marked points (1) (2) (3), using a ɸ10 mm drill bit. • Insert the Wall Plugs 11 into the holes (1) (2) (3). • Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) supplied with the hood. • Fix a Chimney fixing bracket 11 with X2 screws 10 (5 x 50) supplied with the hood. Hook the hood body: • Open the panel. • Remove the Metal grease filter using the handles provided.
  • Page 9 Choose a venting mode There are two venting modes – extraction-air mode and recirculation mode. Before installing select one mode. Extraction-air mode, the air is discharged out of the house by a pipe. Recirculation mode, the air is purified and discharged into the house through two rows of holes on the adjustable decorative cover. Note: For recirculation mode no pipe is needed; instead install a carbon filter. Suction power will be lowered when a carbon filter is attached. Recirculation mode Extraction-air mode Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of which is left to the installer. • To install a ɸ 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet. • Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
  • Page 10 Chimney Assembly The chimney can only be installed with exhausting hood. Lower Decorative Chimney • Fix a Chimney fixing bracket 11 onto the Lower Decorative Chimney with X2 screws 8 (4.2 x 9.5) supplied with the hood. • Hook the brackets 9 onto the hood body, and fix them with X2 screws 8 (4.2 x 9.5), making sure that they are well seated. • Slightly widen the two sides of the lower chimney and hook then between the brackets 9, fix the lower chimney onto the brackets 9 with X2 screws 8 (4.2 x 9.5) supplied with the hood.

  • Page 11: Operating Instructions

    Upper Decorative Chimney • Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 11 which is fixed on the Lower Decorative Chimney. • Fix the upper chimney onto the bracket 11 with X2 screws 8 (4.2 x 9.5) supplied with the hood. OPERATING INSTRUCTIONS OFF MOTOR SWITCH: Press on this switch to stop the motor operation. SPEED SWITCH: Press on this switch, the motor runs at LOW speed. SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed. SPEED SWITCH: Press on this switch, the motor runs at HIGH speed. ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights, and press again to turn them off.

  • Page 12: Cleaning And Maintenance

    CLEANING & MAINTENANCE Grease Filters: Cleaning Metal Self-Supporting Grease Filters • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Pull the comfort panels to open them. • Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards. • Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence on the filter efficiency).

  • Page 13: Fuse Replacement

    Bulb Replacement 1.5W LED light. • Switch off the extractor hood and isolate the extractor hood by pulling out the mains plug or switching off the fuse. • Remove the grease filter. • Remove the light by levering its fitting from the hood body (this may require pressure or force to be applied). Max Power Voltage Picture Lamp Cap ILCOS D code Square / Diameter DSS-1.5-S-33.2 1.5W 220-240V —— : 33.2mm x 120mm /120 • Disconnect the connector of the light. • Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly. • Reinstall the light back to the hood body.

  • Page 14: Troubleshooting

    TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Note: Any repairs should be done by a qualified technician. Fault Cause Solution Light on, but motor does Remove blockage The blades are blocked not work The capacitor is damaged Replace capacitor The motor is damaged Replace motor...

  • Page 15: Service & Disposal Information

    Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on: 0844 848 5861 Please have the following details ready;...
  • Page 16 Ipswich, IP3 9RR 0844 848 5861 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
