Summary of Contents for STATESMAN VH60WH

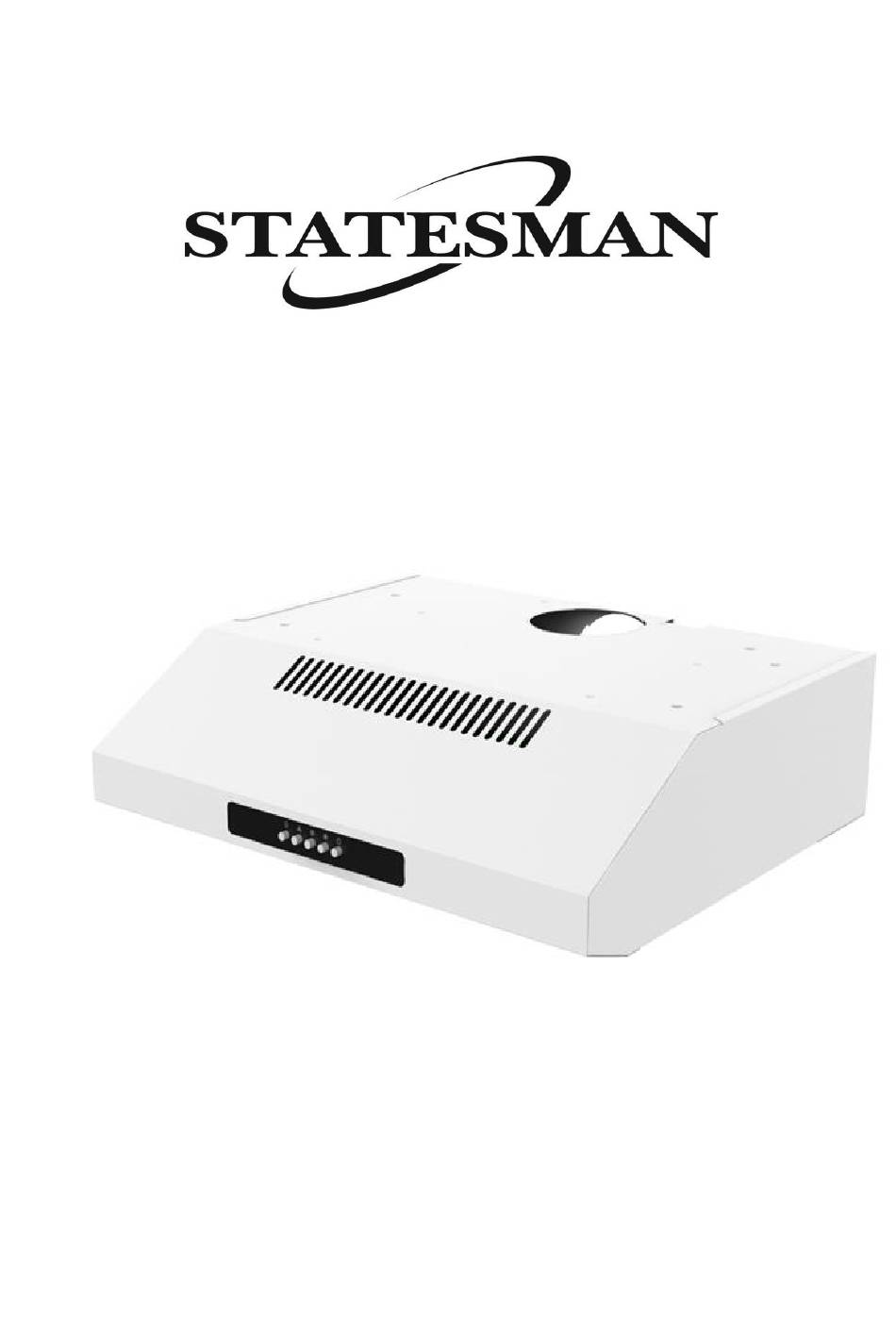

- Page 1 VH60WH 60CM VISOR HOOD WHITE INSTRUCTION MANUAL...
- Page 2 Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.
- Page 3 If the supply chord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller. If the plug or cord is damaged, please call after-sale service centre. ...
- Page 4 Selection of venting direction- A. Vertical Discharge B. Horizontal discharge C. Ductless Information! The air must be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels. Regulation concerning the discharge of are have to be fulfilled.
- Page 5 Vertical Discharge- Vertical is the most common. If you select this venting direction, you only need to open ducting knockout by inserting a flat head screwdriver under one end and prying it up. Then snip or break the attachment points by tin snips.
- Page 6 After selecting venting direction and completing installation, you can turn the knob to achieve ductless or duct. Open the filter, then you can see the knob. The knob arrowed here is duct- The knob arrowed here is ductless-...
- Page 7 Installation- Ensure the power has been turned off before beginning this installation. Plug must be assembled in places easy to drag and insert. To install this hood you will require 2 assistants. You will need the following tools and materials to complete the installation- ...
- Page 8 Exhaust-air mode- The exhaust air is conducted upwards via a ventilation shaft or directly through the outside wall into the atmosphere. The exhaust air must not be conveyed into a function smoke flue or into a shaft which vents a room with a fireplace. Conveyance of exhaust air in a non-functioning smoke flue or exhaust- gas flue requires the prior consent of an appropriate heating engineer.
- Page 9 Method 1- 1. According to the figure, make sure the position of the hood is in the cabinet. The wood strips should be lined up with the 4 keyhole slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood.
- Page 10 Method 2 If the installation surface in the cabinet doesn’t adapt to install the cooker head, then as per fig, fix the position of cooker hood on the wall. In the wall, install 2 screws (supplied) according to the relative position of 2 key holes on the back of the hood.
- Page 11 Hood using method- Turn the hood ON when cooking at high heat or when cooking flaming foods. 1. Adjust the knob to the correct position 2. Insert the power plug firmly Press the light switch on, the bulbs will light. Press the , the motor runs at a low speed.
- Page 12 Cleaning Instruction- Disconnect range hood from power supply before cleaning or servicing. 1. Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood. 2. Do not use harsh alkalis or abrasives 3. Avoid the use of scouring powers or dishwasher compounds 4.
-
Page 13: Service And Spare Parts
SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on; 0844 848 5861 Please have the following details ready;...
