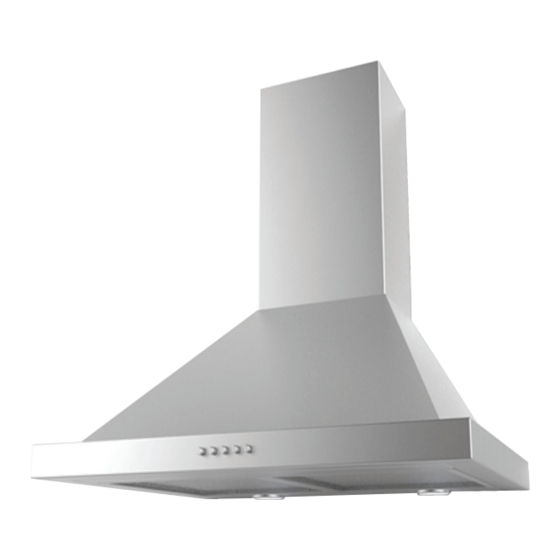

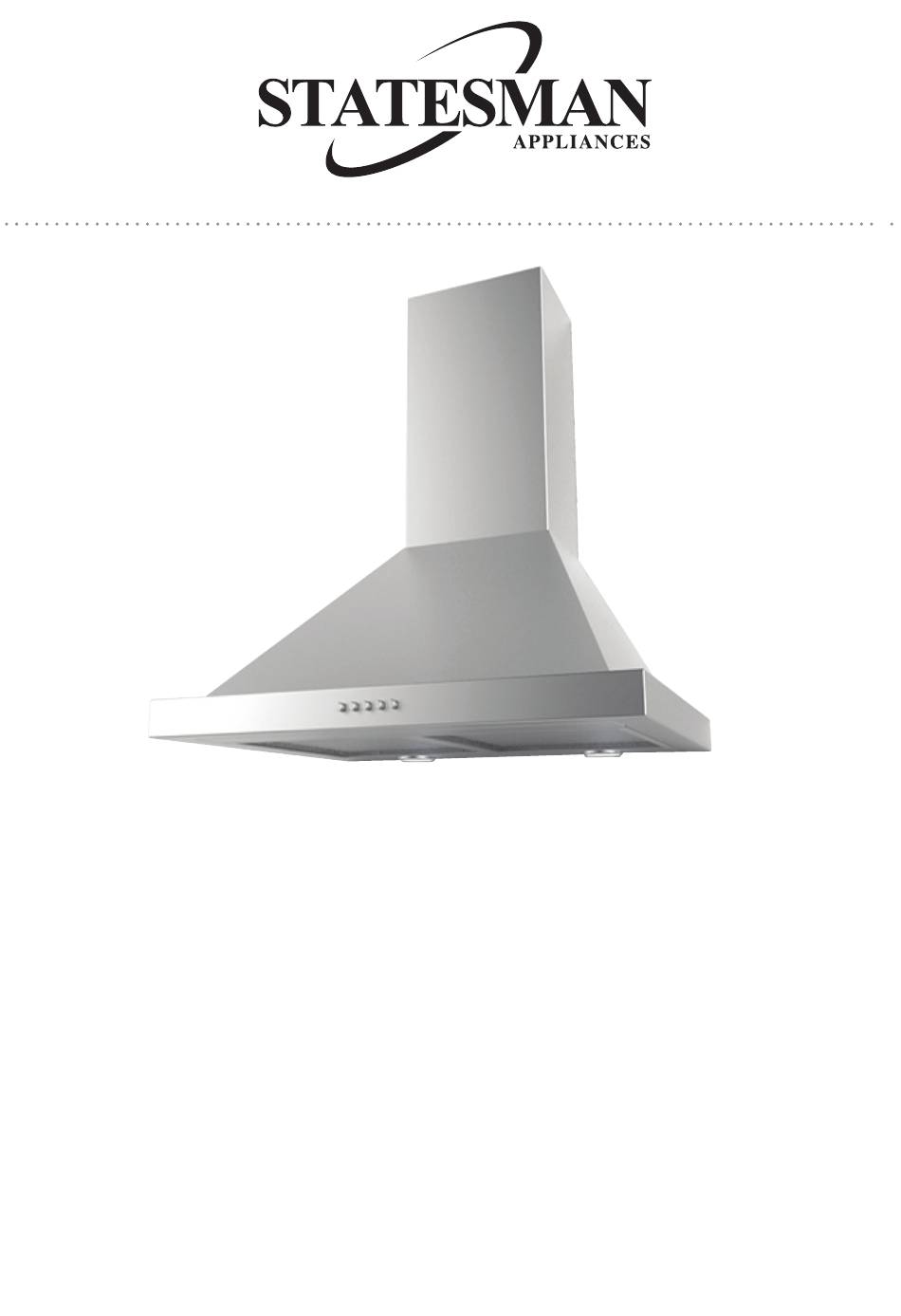

- Page 1 CHM90SS 90CM STAINLESS STEEL CHIMNEY HOOD Instruction Manual Please read these instructions carefully before use and retain for future reference...
- Page 2 Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.
- Page 3 COMPONENTS Number Name Number Name Grease filter Smoke duct Control box cover u-shaped section Junction box Adjustable bracket Bracket Adjustable decorating trim Connection box Power cord groupware Plate type lamp shade Bracket Seals Control box cover Front plate Lamp Switch box E14 Lamp socket Switch Junction box Switch box cover Volute feet Body groupware Motor...
-
Page 4: Installation
Feature • The cooker hood is made of high quality materials in a streamlined design. • Equipped with high power and low noise electric motor, the cooker hood produces strong suction and low noise. • Special wind tunnel construction, free dirt will be absorbed in a second. Installation • The cooker hood should be places 65-75cm above the cooking plane for safe and effective use. see Fig.1 • There must be adequate ventilation of the room when the cooker hood is working. • Fix the outlet on the motor box. See Fig 2 • Drill 3 holes with a diameter of 8mm to accommodate the bracket, and the holes must be aligned. • Insert screws into the holes and tighten. • Fix the drilling template. See Fig 3 • Hang the cooker hood on the bracket. See Fig 4 • Fix an extra screw to prevent the cooker hood inadvertently sliding off the bracket. See Fig 5... - Page 5 • Fix the external vent to the outlet, then feed it through to the external wall. See Fig 6 • Put the U-shaped section on the suction. See Fig.7 • Adjustable decorating hood can be used to adjust the height. If necessary, please insert it into the U-shaped section and pull upward to a suitable height. • Fix the grease filter at the bottom of the cooker hood. (If removed at the beginning.) Notice of Installation • It can not share the same air ventilation tube with other appliances such as gas tube, warmer tube, and hot wind tube. There will be a hazard of pressure, combustion, impaired and harmful gases drawn back. • The bending of ventilation tube should be ≥120°, parallel or above the start point/ should be connected to the external wall. • Please make sure the bracket is placed horizontally. • After installation, make sure that the extractor is placed horizontally to avoid grease collection at one end. See Fig 8. • After installation, make sure that the plug can be accessed if necessary Safety Warning • This appliance is not intended for use by young children or infirm persons without supervision. • Plug the power chord into the power socket outlet with earthing continuity terminal. • The cooker hood is for home use only, not suitable for barbecue commercial purposes. • The cooker hood and its filter mesh should be cleaned regularly according to the instructions.
-
Page 6: Maintenance
• If the supply chord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller. • If the plug or cord is damaged, please call after-sale service centre. • There is a fire risk if cleaning is not carried out in accordance with the instructions. • In case of a damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians. • Use the unit according to the instructions to avoid fire hazard. • The exhaust air must be not be introduced into a smoke flue or chimney that is used for exhausting fumes from appliances burning gas. • Follow the local laws applicable for external air evacuation. • There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. • There is a fire risk if cleaning is not carried out in accordance with the instructions. • Do not flambé under the range hood • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Use- Speed adjustment. See Fig 9 • Press Stop button, the motor will stop running. • Press the Low (speed) button, the motor runs at low speed • Press the Mid (speed) button, the motor runs at mid speed • Press the High (speed) button, the motor runs at high speed. • Press the Light button, the 2 lighting lamps will come on. -
Page 7: Troubleshooting
The Installation drawing of filter A1- Clean the fan and other surfaces of the appliance regularly using a cloth moistened with rubbing alcohol or non abrasive liquid detergent Replace Halogen Lamp Allow the lamp to cool down before replacing. • First, remove the lamp cover • Unscrew the defective halogen lamp and replace it with a new one (power:40W) • Replace the lamp cover carefully; making sure it’s in position. Cleaning the Cooker Hood • To protect the main body from corrosion caused by long term accumulation of dirt, the cooker heads should be cleaned with hot water and non-corrosive detergent every 2 months. • Please do not use abrasive detergent as it will damage the body • Never immerse the motor and any other electrical parts in water or other liquid. • Before cleaning, ensure the power is off. • The carbon filters are neither washable nor reusable and must be replaced every 4 months. Troubleshooting Fault Cause Solution Light on, but motor does The blades are blocked not work The capacitor is damaged Replace capacitor The motor is damaged Replace motor The internal wiring of motor... - Page 8 Fault Cause Solution Vibration The blade, if damaged, can Replace the blade cause vibrating The motor is not tightly fastened Fasten the motor tightly The cooker hood is not tightly Fix the cooker hood tightly fixed The distance between the cooker Readjust the distance Insufficient Suction and the cooker top is too large Too much ventilation from open Choose a new place to install doors or windows the appliance or close some doors/windows The machine inclines The fixing screws are not tight Tighten the fixing screw enough and make it horizontal The hanging screws are not Tighten the hanging screw tight enough and make it horizontal Main Parameters Voltage 220-240 ~ 50Hz Rated Power 205W Lighting Power 40W X 2 Motor Power 125W Motor Single Motor Inner diameter of Air tube...
-
Page 9: Service And Spare Parts
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried in accordance to with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased it. SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on: 0844 848 5861 Please have the following details ready; • Model Name/ Model Number • Serial Number • Date of Purchase • Where Purchased • Customer Name and address including post code • Contact Telephone Number • Accurate description of the fault Spare Parts information can be obtained by calling our Spare Parts Department on: 0844 848 5862...
