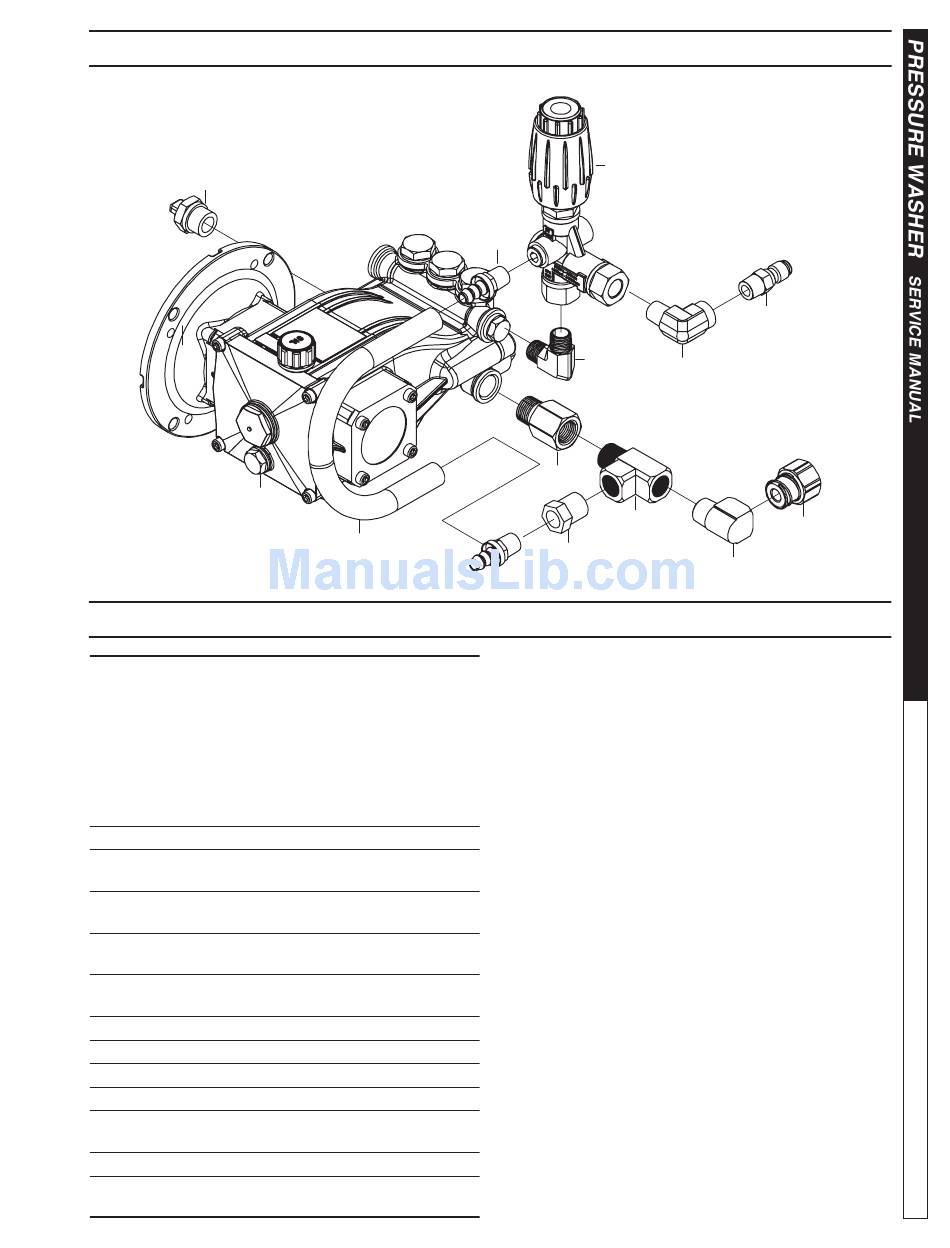

PUMP ASSEMBLY EXPLODED VIEW

2
2
1
PUMP ASSY EXPLODED VIEW PARTS LIST
ITEM
PART NO.
DESCRIPTION
1
8.754-761.0
PUMP, LEUCO LF2030S,2.1
@3000, 1725RPM
(HD 2.0/1000 Ed)
8.754-763.0
PUMP, LEUCO LF2830S,
2.8@3000, 1725RPM
(HD 3.0/1000 Ea)
8.754-764.0
PUMP, LEUCO LF3530F,
3.5@3000, 3450RPM
(HD 3.5/2000 Ea)
2
8.707-256.0
Pump protector,1/2"
3
8.706-168.0
Elbow, 3/8" NPT-p/n-
tf3529x6 Steel
4
8.750-299.0
Unloader, Vrt3, 8 GPM
@4500 psi
5
8.706-207.0
Elbow, 3/8", Street 90 deg,
Steel
6
9.802-171.0
Coupler, 3/8" Clug, Male,
Steel/zinc
7
8.706-944.0
Hose Barb, 3/8' barb x 3/8' ML 2
8
8.711-785.0
Hose, 3/8" Push on, per ft
9
8.706-917.0
Bushing, 1/2' x 3/8' Brass
10
8.706-860.0
Tee, 1/2" Street Brass
11
8.706-984.0
Adapter, 1/2" FTP x 1/2" MPT,
brass
12
8.706-829.0
Elbow, 1/2" Street, Brass
13
9.802-146.0
Swivel, 1/2" MP x 3/4"
GHF W/Strainer
7
8
7
QTY
1
1
1
1
1
1
1
1
18''
1
1
18''
1
1
9.801-811.0 • Rev. 06/17
4
3
5
11
10
9
12
6
13
9
