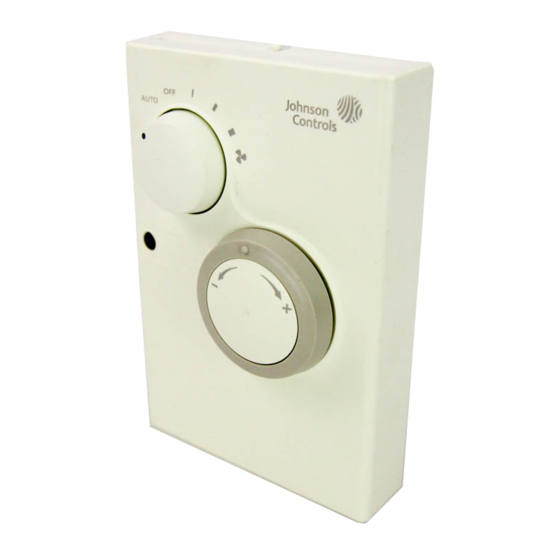

TM-11x1 Series Room Temperature Module

Installation Instructions

Applications

The TM-11x1 Series of Room Temperature Modules
are designed for use with the TC-9102 Direct Digital
Control (DDC) terminal unit controller. The setpoint dial
enables the room occupant to adjust the working
setpoint of the controller. On scaled models, the
marked adjustment range is 55 to 85°F; the controller
determines the actual setpoint. On Warmer/Cooler
models, the adjustment range is marked +/- from the
midpoint of the dial; the controller determines the
equivalent setpoint temperature.
With the occupancy button, the occupant can switch
the controller's operating mode between occupied and
standby. In addition, the TM-11x1 Series offers the
option of a temporary occupied mode during
unoccupied mode.
The TM-11x1 Series Room Temperature Module also
features a Light-Emitting Diode (LED) that indicates the
current operating mode.
For TC-9102 Fan Coil Unit controllers, a Room
Temperature Module with a 3-speed fan override
adjustment is available, and models without a
temperature sensor are provided for applications
where the room temperature sensor is mounted inside
the Fan Coil Unit.
IMPORTANT: The TM-11x1 Series Room
Temperature Modules are intended to provide an
input to equipment under normal operating
conditions. Where failure or malfunction of the
TM-11x1 Temperature Module could lead to
personal injury or property damage to the controlled
equipment or other property, other precautions must
be designed into the control system. Incorporate and
maintain other devices, such as supervisory or
alarm systems, or safety or limit controls intended to
warn of or protect against failure or malfunction of
the TM-11x1 Temperature Module.
Installation

Parts Included

Two #6-32 x 7/8 in. (22 mm) wallbox mounting screws
are included with the TM-11x1 Module.

Special Tools Needed

For tightening and loosening the TM-11x1 Series Room
Temperature Module security screw, order the optional
Allen-head tool (T-4000-119) from the nearest
Johnson Controls® representative.
