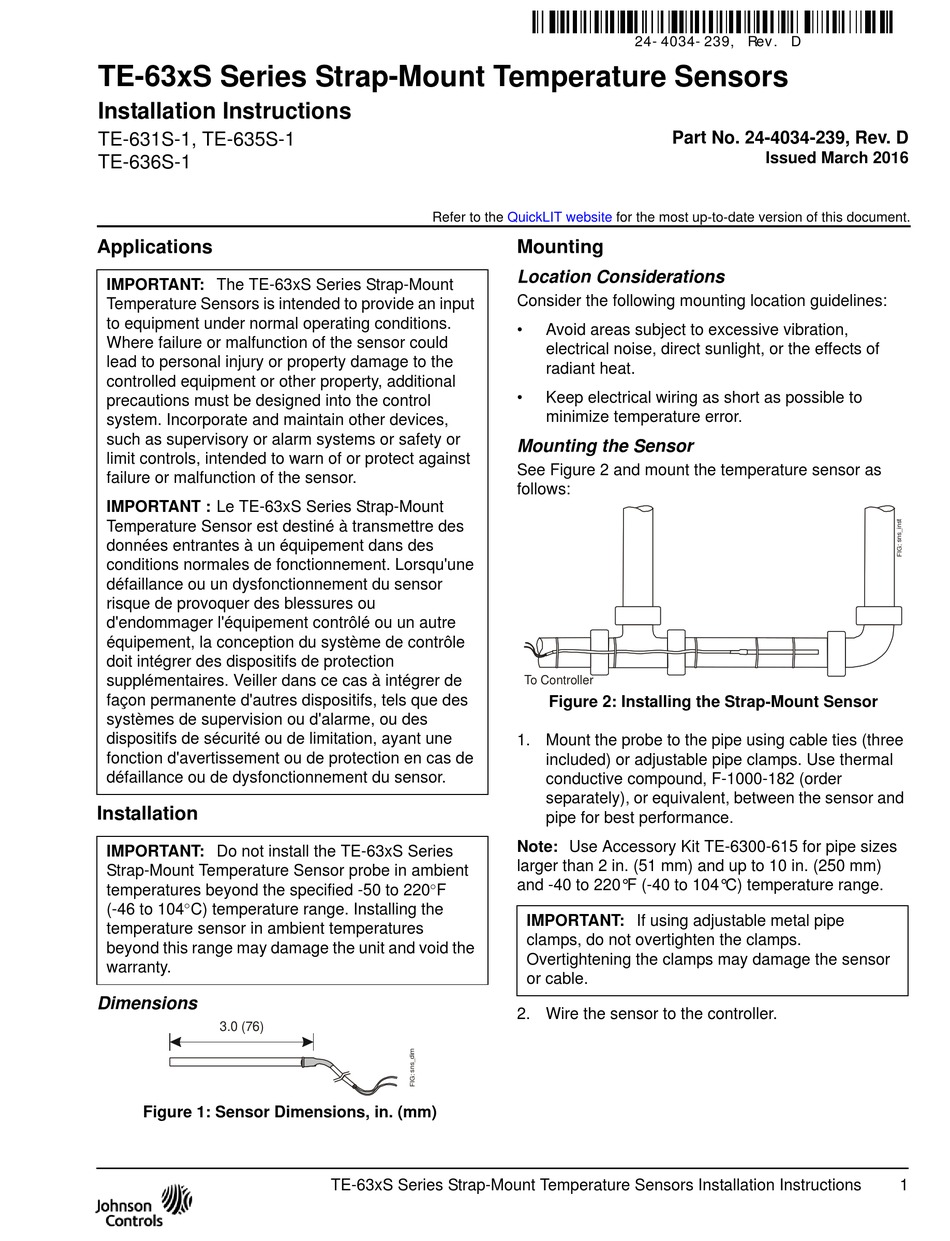

TE-63xS Series Strap-Mount Temperature Sensors

Installation Instructions

TE-631S-1, TE-635S-1
TE-636S-1
Applications
IMPORTANT: The TE-63xS Series Strap-Mount
Temperature Sensors is intended to provide an input
to equipment under normal operating conditions.
Where failure or malfunction of the sensor could
lead to personal injury or property damage to the
controlled equipment or other property, additional
precautions must be designed into the control
system. Incorporate and maintain other devices,
such as supervisory or alarm systems or safety or
limit controls, intended to warn of or protect against
failure or malfunction of the sensor.
IMPORTANT : Le TE-63xS Series Strap-Mount
Temperature Sensor est destiné à transmettre des
données entrantes à un équipement dans des
conditions normales de fonctionnement. Lorsqu'une
défaillance ou un dysfonctionnement du sensor
risque de provoquer des blessures ou
d'endommager l'équipement contrôlé ou un autre
équipement, la conception du système de contrôle
doit intégrer des dispositifs de protection
supplémentaires. Veiller dans ce cas à intégrer de
façon permanente d'autres dispositifs, tels que des
systèmes de supervision ou d'alarme, ou des
dispositifs de sécurité ou de limitation, ayant une
fonction d'avertissement ou de protection en cas de
défaillance ou de dysfonctionnement du sensor.
Installation
IMPORTANT: Do not install the TE-63xS Series
Strap-Mount Temperature Sensor probe in ambient
temperatures beyond the specified -50 to 220F
(-46 to 104C) temperature range. Installing the
temperature sensor in ambient temperatures
beyond this range may damage the unit and void the
warranty.
Dimensions
3.0 (76)
Figure 1: Sensor Dimensions, in. (mm)
Refer to the QuickLIT website
TE-63xS Series Strap-Mount Temperature Sensors Installation Instructions
24- 4034- 239, Rev . D
Part No. 24-4034-239, Rev. D
for the most up-to-date version of this document.
Mounting
Location Considerations
Consider the following mounting location guidelines:
• Avoid areas subject to excessive vibration,
electrical noise, direct sunlight, or the effects of
radiant heat.
• Keep electrical wiring as short as possible to
minimize temperature error.
Mounting the Sensor
See Figure 2 and mount the temperature sensor as
follows:
To Controller
Figure 2: Installing the Strap-Mount Sensor
1. Mount the probe to the pipe using cable ties (three
included) or adjustable pipe clamps. Use thermal
conductive compound, F-1000-182 (order
separately), or equivalent, between the sensor and
pipe for best performance.
Note: Use Accessory Kit TE-6300-615 for pipe sizes
larger than 2 in. (51 mm) and up to 10 in. (250 mm)
and -40 to 220°F (-40 to 104°C) temperature range.
IMPORTANT: If using adjustable metal pipe
clamps, do not overtighten the clamps.
Overtightening the clamps may damage the sensor
or cable.
2. Wire the sensor to the controller.
Issued March 2016
1
