TM-21x1 Series Room Temperature Module

Installation Instructions

Applications

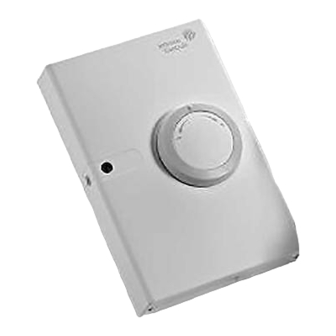

The TM-21x1 Series of Room Temperature Modules
are designed for use with the Facility Explorer Series of
field controllers. The setpoint dial enables the room
occupant to adjust the working setpoint of the
controller. On scaled models, the marked adjustment
range is 55 to 85°F; the controller determines the
actual setpoint temperature. On Warmer/Cooler
models, the adjustment range is marked +/- from
midpoint of the dial; the controller determines the
equivalent setpoint temperature.
With the occupancy button, the occupant can switch
the controller's operating mode between occupied and
standby. In addition, the TM-21x1 Series offers the
option of a temporary occupied mode during
unoccupied mode.
The TM-21x1 Series Room Temperature Module also
features a Light-Emitting Diode (LED) that indicates the
current operating mode.
IMPORTANT: The TM-21x1 Series Room
Temperature Modules are intended to provide an
input to equipment under normal operating
conditions. Where failure or malfunction of the
TM-21x1 Temperature Module could lead to
personal injury or property damage to the controlled
equipment or other property, other precautions must
be designed into the control system. Incorporate and
maintain other devices, such as supervisory or
alarm systems or safety or limit controls, intended to
warn of or protect against failure or malfunction of
the TM-21x1 Temperature Module.
Installation
Parts Included
Two #6-32 x 7/8 in. (22 mm) wallbox mounting screws
are included with the TM-21x1 Module.
Special Tools Needed
For tightening and loosening the TM-11x1 Series Room
Temperature Module security screw, order the optional
Allen-head tool (T-4000-119) from the nearest
Johnson Controls® representative.
TM-21x1 Series Room Temperature Module Installation Instructions
24- 10225- 12, Rev . C
Part No. 24-10225-12, Rev. C
Issued March 2016
