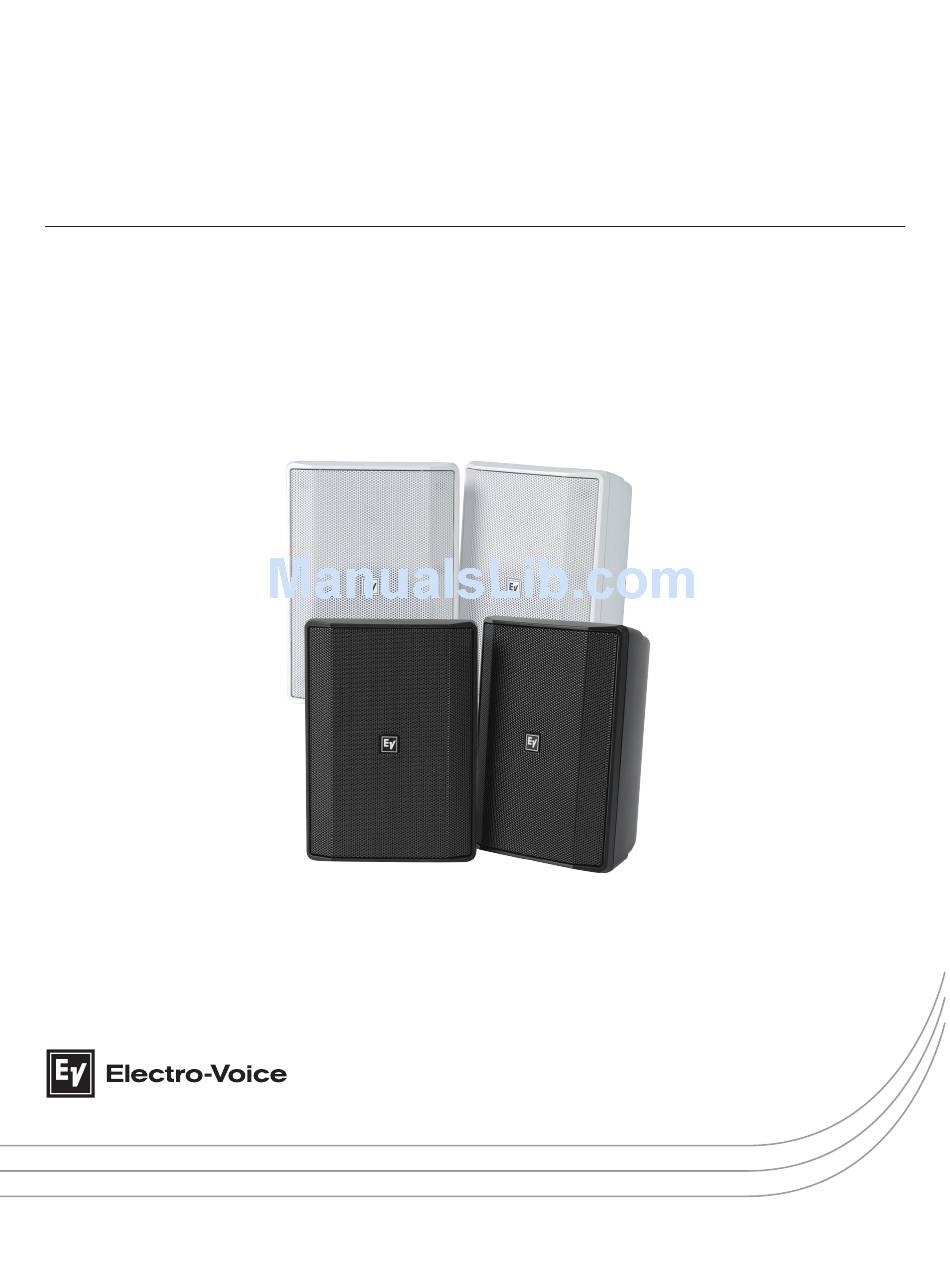

- Page 1 EVID Surface Mount S Series - X Models EVID-S5.2XB | EVID-S5.2XW en | Installation manual...
-
Page 3: Table Of Contents
Suspension Notices Introduction System features Product information Packing list Installation and wiring Installing the speaker U-Bracket installation options Wiring Transformer taps Replacing the logo Troubleshooting Technical data Dimensions Frequency response and impedance Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358... -
Page 4: Safety
Suspending any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of suspending objects overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into account all current national, federal, state, and local laws and regulations. It is the responsibility of the installer to ensure all loudspeakers are safely installed in accordance with all such requirements. -
Page 5: Introduction
Introduction The EVID-S series, from Electro-Voice, is a line of compact, high-performance, two-way, full- range surface mount speakers, with excellent wide and uniform coverage, and outstanding performance. Their design makes these practically invisible for use in background and foreground music, paging, and sound reinforcement applications, making EVID-S ideal for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. -
Page 6: Packing List
Safety screws for the U-Brackets U-bracket Weather covers Weather cover screws Grille logos (spares) Installation manual Table 2.2: Components list A (x2) C (x4) D (x2) E (x2) F (x8) G (x2) Figure 2.2: Components list 2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice... -
Page 7: Installation And Wiring
Wire the speaker, as shown in the wiring section. Insert the two screws (provided) into the U-Bracket mounting points. Loosely tighten the two screws using the Allen wrench (provided). Aim the speaker. Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358... -
Page 8: U-Bracket Installation Options
• Wiring, page 9 U-Bracket installation options Using a U-Bolt The U-Bracket can be mounted using a standard 2-inch or 4-inch U-Bolt. Figure 3.2: U-Bolt — 2-inch Figure 3.3: U-Bolt — 4-inch 2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice... -
Page 9: Wiring
The speaker can be wired using either 2-wires, for input only, or 4-wires, for input and parallel output. Reference the polarity markers on the Euroblock. To wire the speaker using the weather cover, do the following: Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358... -
Page 10: Transformer Taps
You can select the mode of operation (70 V/100 V/8 ohm) and power taps using the rotary switch on the input panel. Configuring the transformer settings To configure the transformer settings, do the following: Select the desired power tap by using the rotary switch on the input panel. 2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice... -
Page 11: Replacing The Logo
Remove the existing logo. Clean the surface with alcohol. Align the logo with the logo recess on the grille. Remove the paper backing. Insert the logo. Press firmly to ensure the logo is applied. Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358... -
Page 12: Troubleshooting
Poor System Check and correct the system grounding, as required. Grounding or Ground Loop If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor. 2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice... -
Page 13: Technical Data
Shipping weight: 9.5 kg (21.0 lb) Included hardware: U-Bracket, 5-mm Allen wrench and input cover Packaged quantity: 2 Half space (wall mounting). Half space (on wall) averaged 100 Hz – 10 kHz, 1 W. Without U-Bracket. Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.358... -
Page 14: Dimensions
[7.09 in] 169.0 mm [6.65 in] 255.0 mm [10.04 in] 148.0 mm [5.83 in] 193.0 mm [7.60 in] Figure 5.1: EVID-S5.2X dimensions Frequency response and impedance Figure 5.2: EVID-S5.2X frequency response and impedance 2017.08 | 01 | F.01U.345.358 Installation manual Electro-Voice... - Page 16 Bosch Sicherheitssysteme GmbH Bosch Security Systems, Inc Robert-Bosch-Ring 5 12000 Portland Avenue South 85630 Grasbrunn Burnsville MN 55337 Germany www.boschsecurity.com www.electrovoice.com © Bosch Sicherheitssysteme GmbH, 2017...
