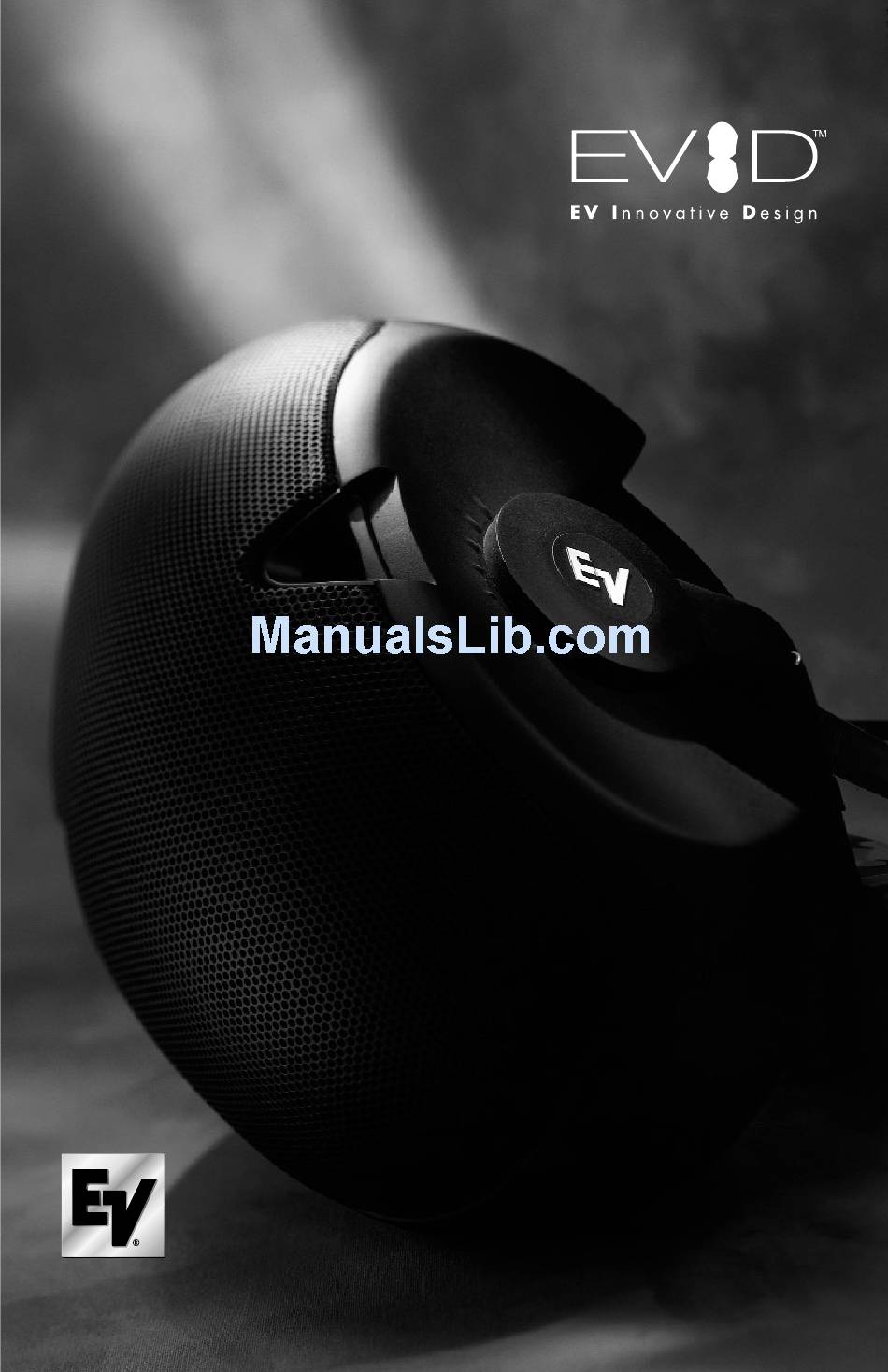

- Page 1 Owner's Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ....ii Step 3: Wire the Speaker ..8 Product Description ....1 Step 4: Mount the Speaker to the Bracket . -
Page 3: Product Description
Product Description Welcome Important Features • Thank you for purchasing EVID™ Series Line-array enhanced coverage control • loudspeakers. Read through this manual to Organic, unobtrusive shape • familiarize yourself with the features, SAM™ (Strong-Arm-Mount™) system applications, and precautions before you for secure and reliable mounting •... -
Page 4: Model Summary
Product Description Model Summary Packing List (3.2, 4.2, 6.2) Listed and illustrated below are the parts in- EVID™ 3.2 cluded in each boxed pair of EVID™ speakers. Most compact of the EVID™ Series, the EVID™ 3.2 uses dual 3.5-inch LF drivers Figure Quantity Part with a .75-inch titanium direct radiator... -
Page 5: Evid™ Product Family
Product Description EVID™ Product Family Product Feature Identification Illustrated below are the major components 8-Ohm Impedance of the EVID™ Series full-range speakers. Part Number Model Description 301045-001 Dual 3.5" full range A. Shielded dual woofers B. Coherent Coverage Waveguide horn shielded (black) (4.2 and 6.2 only) C. -
Page 6: Sam™ (Strong-Arm-Mount™)
Product Description SAM™ (Strong-Arm-Mount™) Step-by-Step Installation System and Wiring (3.2, 4.2, 6.2) EVID™’s SAM™ system (Strong-Arm- Step 1: Mount the SAM™ Bracket Mount™) excels at meeting the four require- The SAM™ bracket can be mounted on ments for mounting FGM/BGM systems: either side of the speaker, enabling optimal simple, quick, versatile, and reliable. -
Page 7: Step 2: Select Voltage Tap (Models 4.2T And 6.2T Only)
Product Description Step 2: Select Voltage Tap (Models Step 3: Mount the Speaker to the 4.2t and 6.2t Only) SAM™ Bracket Before mounting the speaker to the brack- Attach the speaker to the SAM™ bracket et, select the proper voltage tap setting for with the socket head bolt, as shown in your installation. -
Page 8: Step 4: Wire The Speaker
Product Description Attach both logo caps as shown in Figure 11 after tightening and securing the speaker. EV logo cap EV logo cap (small) (large) Connect seismic security cable Figure 12: Secure seismic security cable Step 6: Test System Operation... -
Page 9: Packing List (12.1 Subwoofer)
Product Description Packing List (12.1 Subwoofer) Product Feature Identification Below is the list of parts included with the The 12.1 subwoofer comes with a dual-mode EVID™ 12.1 subwoofer. The parts are illus- mounting bracket that enables the unit to trated in Figure 14. be easily mounted at either a wall/wall (cor- ner) or on a wall/ceiling (midwall) junction. -
Page 10: Step-By-Step Installation And Wiring (12.1 Subwoofer)
Product Description Step-by-Step Installation Step 2: Install the Safety Line Using accepted safe rigging practices, and Wiring (12.1 Subwoofer) secure one end of a suitable safety line (use cable, not chain, which will rattle) to a Step 1: Mount the Bracket strong, secure point above the speaker, a The mounting bracket can be installed two point that can withstand the shock of the... -
Page 11: Step 4: Mount The Speaker To The Bracket
16-thread Phillips-head screws through the screwdriver, securely tighten the second remaining clip and, with the clip pointing Phillips-head screw. Gently rotate the EV ® up, thread the screw finger-tight into the logo a quarter turn and press firmly at its lower mtg. -
Page 12: Step 5: Test System Operation
Product Description cross-tees. This stabilizes the enclosure from rocking. Trim the ceiling panel to fit the new opening(s) and drop into place. It is the installer's responsibility to assure that the Rungs chosen rigging points are strong enough to support the load. Warning: Never try to install this speaker in a suspended ceil- ing without proper rigging support! Floor Mounting... -
Page 13: Uniform Limited Warranty
Uniform Limited Warranty Electro-Voice ® products are guaranteed Incidental and Consequential against malfunction due to defects in mate- Damages Excluded rials or workmanship for a specified period, Product repair or replacement and return as noted in the individual product-line to the customer are the only remedies pro- statement(s) below, or in the individual vided to the customer. -
Page 14: Integrating The 12.1 Subwoofer
Appendix A: Integrating the Subwoofer system impedance to be determined by the Installation Examples number of satellites per channel. The EVID™ Series is a product family with the flexibility to fit the requirements of Using a Separate Amplifier many different applications. Listed below Channel for the 12.1 are some suggested combinations for sys- In certain specialized applications, it may be... -
Page 15: Appendix B: Painting The Speaker
Painting Process (12.1 Subwoofer) • Remove the four screws securing the front hatch and lift off the hatch panel. Carefully twist and lift off the EV ® logo and set it aside. • The foam grille blocks are held in place by sharp pins protruding through the baffle board. -
Page 16: Appendix C: Troubleshooting Table
Appendix C: Troubleshooting Table Problem Possible Cause(s) Action 1. No sound Amplifier Connect a known working test speaker to the amplifier outputs. If there is no sound, check that all the elec- tronics are on, the signal routing is correct, the source is active, the volume is turned up, and so on. -
Page 17: Evid Owner's Manual
U.S.A. and Canada only. For customer orders, contact the Customer Service department at 800/392-3497 Fax: 800/955-6831 For warranty repair or service information, contact the Service Repair department at 800/685-2606 For technical assistance, contact Technical Support at 866/78 AUDIO Please refer to the Engineering Data Sheet for warranty information. Specifications subject to change without notice.
