Connect your X.linkLE audio/video and SDI
cables to the Axio LE card
Connect the X.linkLE audio/video cable from the back of the X.linkLE
1
breakout box to the X.linkLE audio/video cable connector (labeled B) on
your installed Axio LE card. Tighten the thumb screws until snug to ensure a
stable connection.

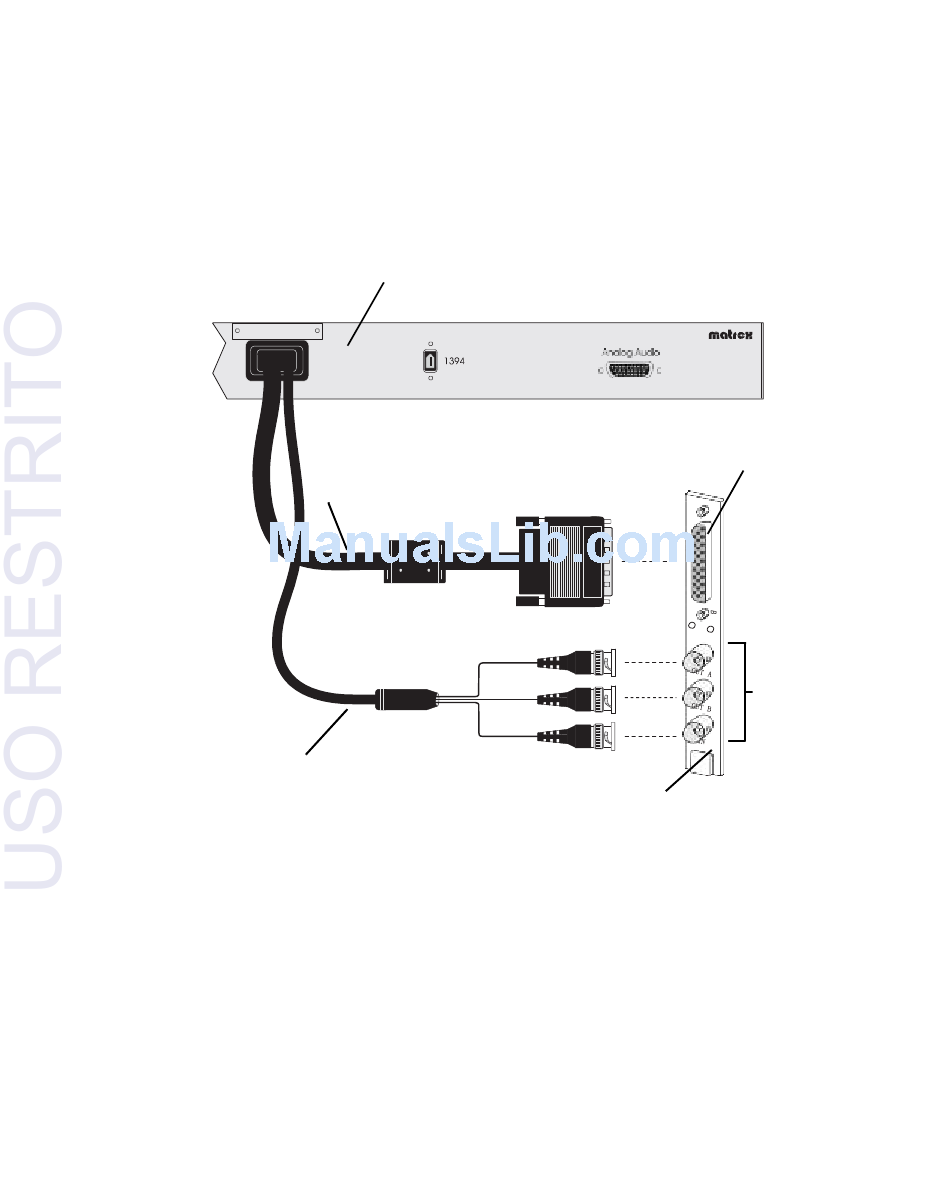

Back of X.linkLE breakout box (partial view)
X.linkLE audio/video cable
X.linkLE SDI cable
2 Connect the X.linkLE SDI cable from the back of the X.linkLE breakout box
to the respective SDI connectors (labeled OUT A, OUT B, and IN) on your
installed Axio LE card.
²Caution
connectors (bent pins can cause your Matrox Axio LE system to not perform
properly). Also, do not bend the attached cables too sharply. Excessive
bending or flexing can damage internal, shielded wires.

Connect your X.linkLE audio/video and SDI cables to the Axio LE card

SDI OUT A
SDI OUT B
SDI IN
Axio LE card bracket
Use extra care when attaching the cables to their respective
Axio LE audio/video
cable connector (B)
Axio LE
SDI
connectors
19
