The rear panel of the SMC8014WN2 Wireless Cable Modem Gateway contains a reset
button and the ports for attaching the supplied power adapter and making additional
connections. Figure 4 shows the rear panel components and Table 4 describes them.

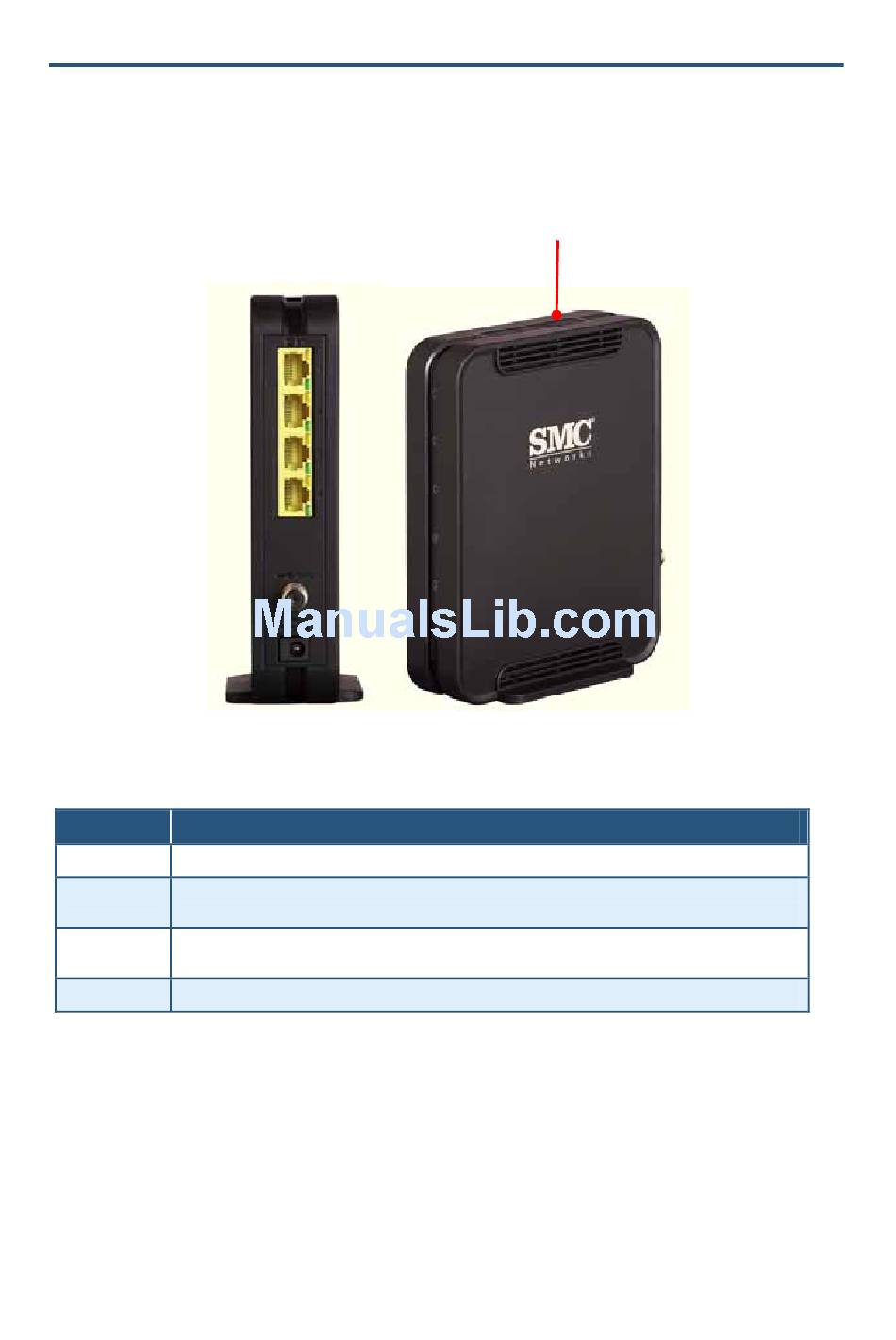

Figure 4. Rear Panel of SMC8014WN2 Wireless Cable Modem Gateway
Item
Power Connect the included power adapter to this port.
Reset Use this button to reset the power or restore the default factory settings. The button is recesses to prevent
accidental resets. Use a paper clip or a pencil tip to push the Reset button.
ETH 1-4 Four 10/100 auto-sensing switch (RJ-45) ports. Connect your local-area network devices, such as a PC,
hub, or switch, to these ports.
CATV Connect your cable line to this port.
