The rear panel of the SMC8014WN Wireless Cable Modem Gateway contains a reset button
and the ports for attaching the supplied power adapter and making additional connections.

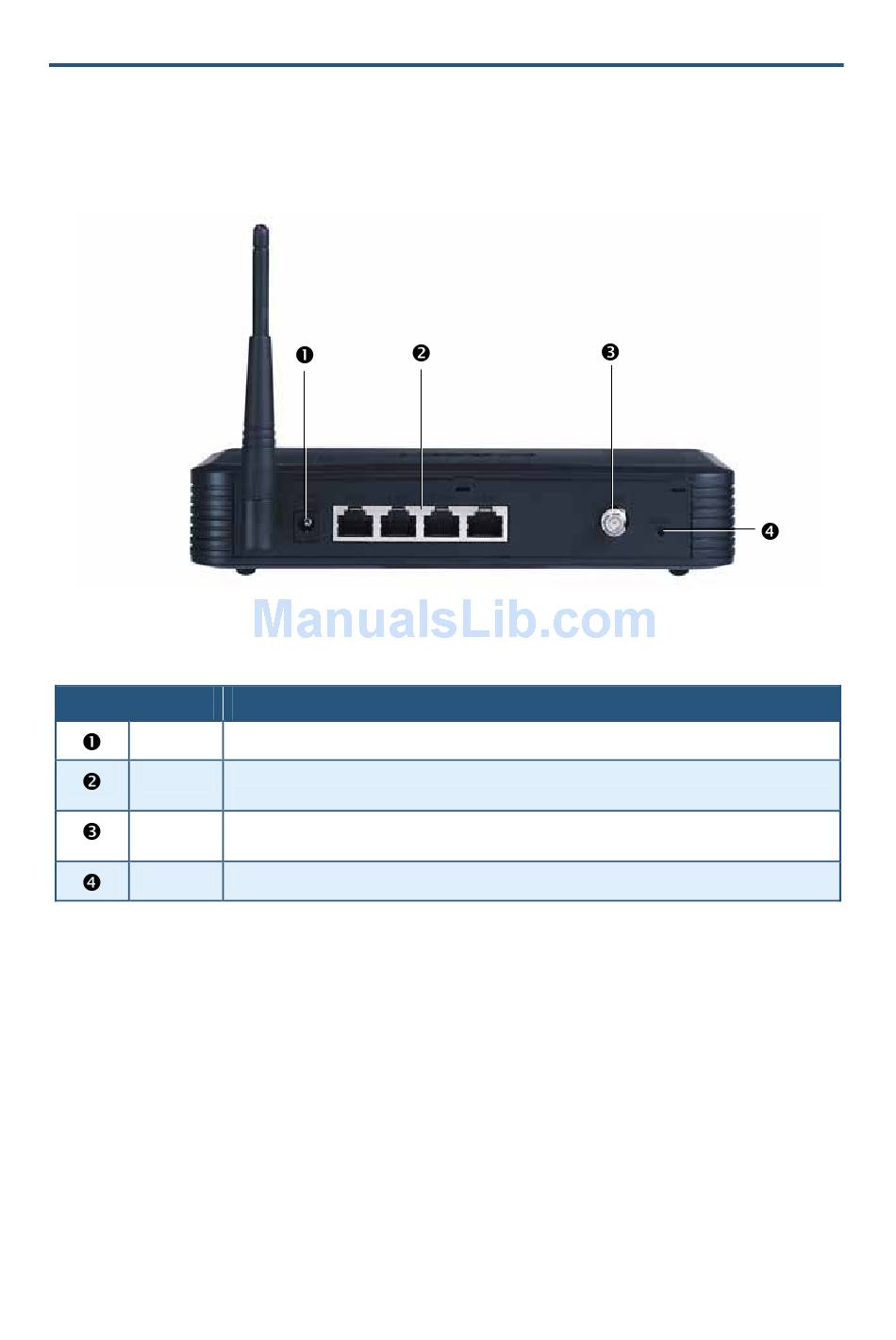

Figure 2 shows the rear panel components and Table 2 describes them.
Figure 2. Rear Panel of SMC8014WN Wireless Cable Modem Gateway
Item
Power
Reset
LAN 1-4
CATV
SMC8014WN and SMC8014WN2 Wireless Cable Modem Gateway Administrator Manual
錯誤! 尚未定義樣式。
Table 2. SMC8014WN Rear Panel
Connect the included power adapter to this port.
Use this button to reset the power or restore the default factory settings. The button is recesses to
prevent accidental resets. Use a paper clip or a pencil tip to push the Reset button.
Four 10/100 auto-sensing switch (RJ-45) ports. Connect your local-area network devices, such as a PC,
hub, or switch, to these ports.
Connect your cable line to this port.
Description
