Dynojet Power Commander V Installation Instructions page 4

FIG.D
FIG.E
PCV
FIG.F
Unplug O2
17-071
Unplug
PCV
Unplug CPS
www.powercommander.com

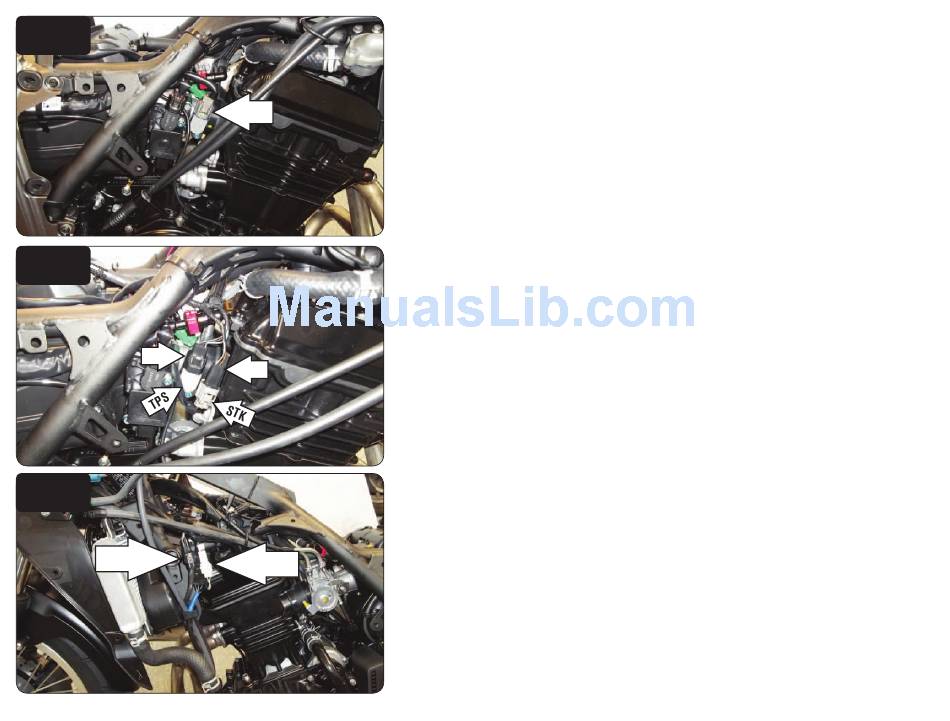

9 Locate and unplug the primary Throttle Position Sensor on the right hand side
of the throttle bodies (Fig. D).
This is the GREY 3-pin connector.
Do NOT unplug the secondary TPS with the BLACK connector.
10 Plug the connectors from the PCV wiring harness in-line of the TPS and the
stock wiring harness (Fig. E).
Make sure you do NOT plug the PCV in-line of the secondary TPS with the stock
BLACK connector.
11 Locate and unplug the stock Crank Position Sensor connectors.
This is a WHITE 2-pin connector pair on the left side of the frame.
12 Also unplug the stock O2 sensor connectors (Fig. F).
This is the BLACK 4-pin connector pair on the left side of the frame.
2017 Kawasaki Versys-X 300 - PCV F/I - 4
