SOLZAIMA TEK Basic Instruction Manual page 30

Attention: all three wires in the power feed cable – earth, neutral and live – should be
connected. We take no responsibility for any damage resulting from non-compliance with
this warning.
* The electrical components should always be connected to the power supply;
d)

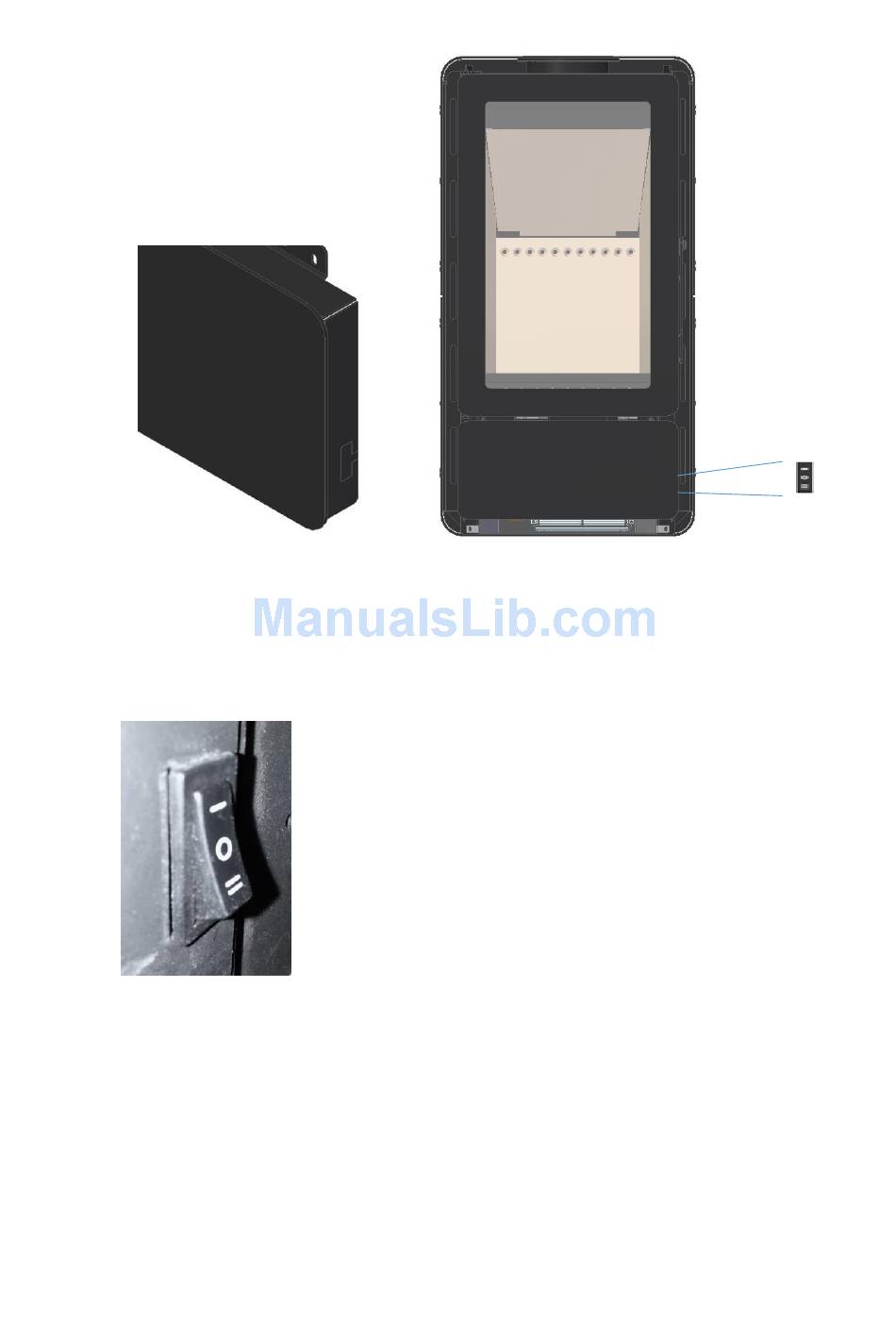

Fig. 39 – Installation of ventilation kit
Position I – Tangential fan automatically turns on
with an air flow of 60m3/h when the
thermostat reaches 50 °C.
Position 0 – Tangential fan keeps inactive.
Position II – Tangential fan is activated manually
with an air flow of 165m3/h.
Fig. 40 – 3 Position Switch
30
