Fig. 24 – holder System 3
Fig. 23 – Fixing System 3 Fig. 25 – Clamp the fastener placement the stove
Version Tek Wall
To proceed with the installation kit optional wall of this range must follow these steps:

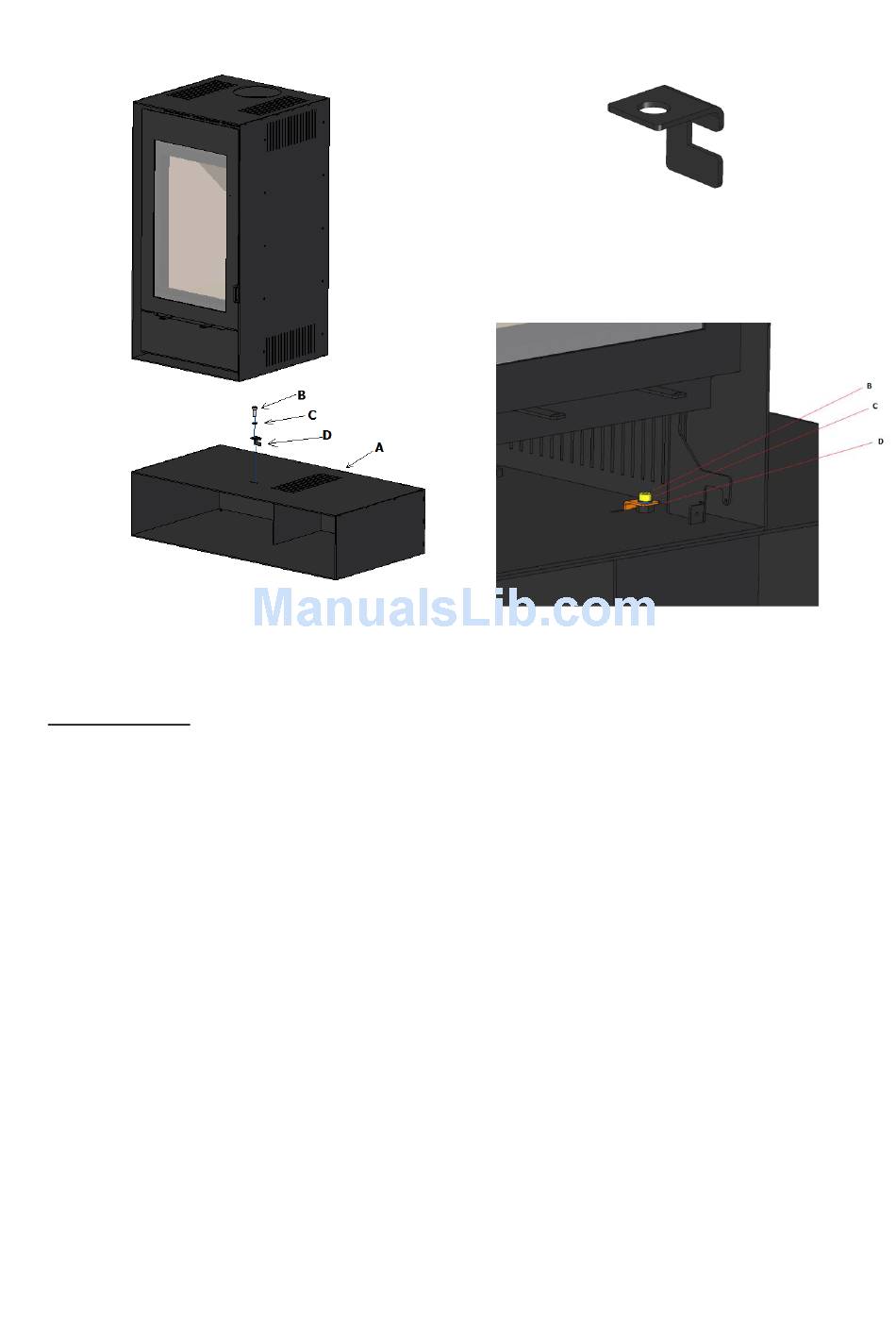

1 - Remove the bracket (A) installed on the heater, unscrew the screws (B). Warning: When
removing the screws, the stove no longer has the support (A) is the only foothold that the stove has
the floor. Before removing all the screws should ensure that the stove is safe and will not fall see
Figure 26.
2 - Install wall bracket (Figure 27 [D]) using the supplied components according to the height at
which to place the stove. Use the wall bracket (Figure 27 [A]) as a way to verify the correct position
of the supports;
3 - Followed must replace the floor support (Fig 26 [A]) for the wall mount (Figure 27 [A]) provided
in the kit purchased, using the same screws and washers from the previous operation;
4 - Finally, put the stove on the wall brackets (Figure 27 [D]) pre-installed. To do this you must first
put the stove in the 2 supports simultaneously and then fit the stove into the slots on both brackets.
Figure 28.
