3.2.1. Vertical/horizontal fume outlet

All our free standing fire models can be provided with either a horizontal OR vertical fume

outlet, at the client's choice. Please note that this unit comes pre-installed with the vertical option.

To change the fume outlet initial vertical position to the horizontal position, please follow

these steps:

TEK Basic and TEK Stone models:

Remove the top cover of the unit by sliding it horizontally and backwards to place the

guide pins in their rearmost position. With the pins in this position, carefully lift and

remove the top cover. For the "Tek Stone" model, just carefully lift the top cover and

remove it away from the unit. The stone cover is fixed in position on the top of the unit

by its own weight;

Remove the fume baffle (as described in section 9.2 under the "Cleaning and

Maintenance" chapter) taking care not to damage any of the vermiculite plates;

On the rear side of the stove, open the section corresponding to the horizontal fume

outlet. To do this, use cutting pliers to cut off the mini-joints that secure this section to

the external casing of the unit;

(A)

1st

ste

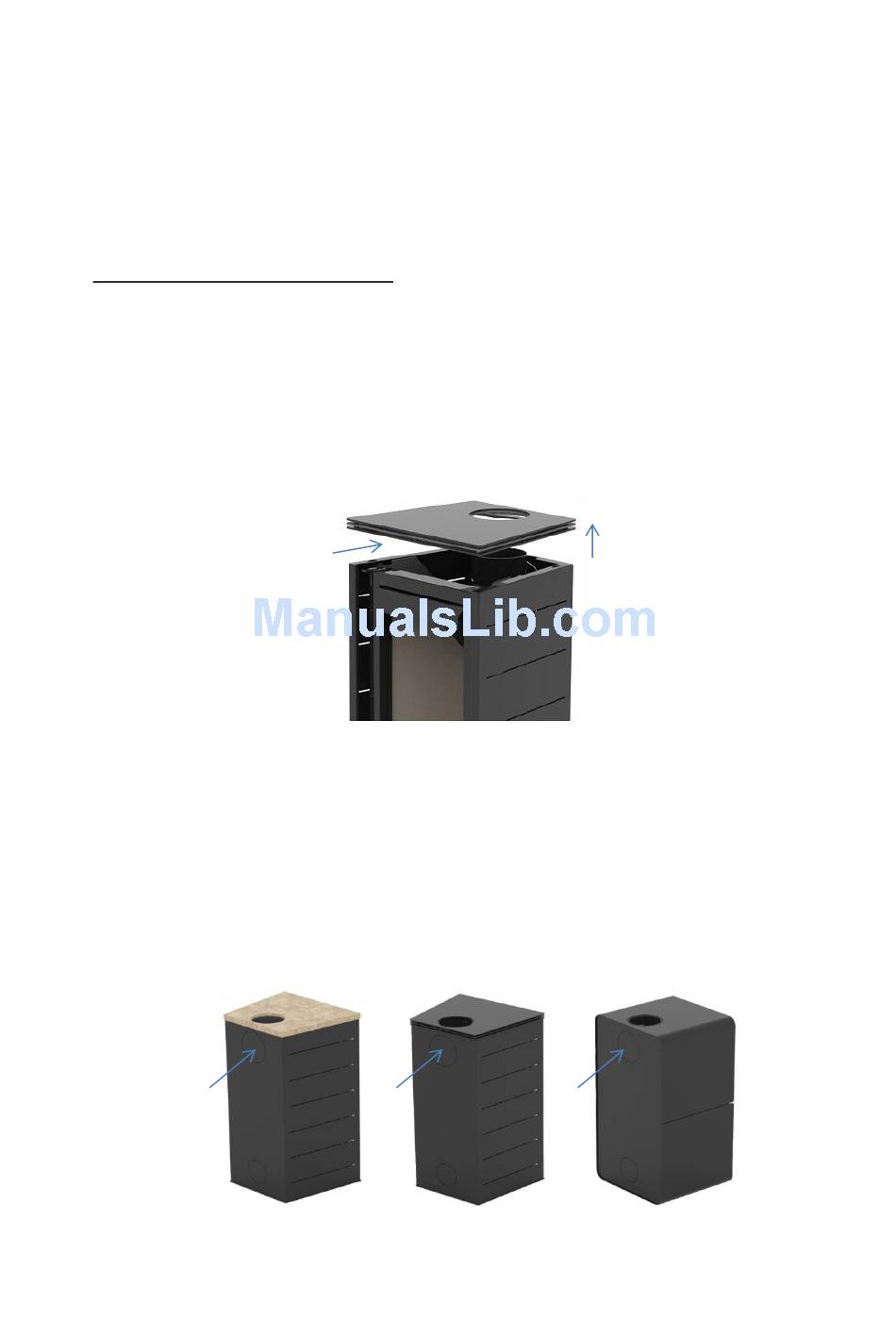

Fig.13 – Removing the top metal cover

(A)

Fig. 14 – Rear view of each model; (A) Section to be removed

before changing the fume outlet to the horizontal position.
