SOLZAIMA TEK Basic Instruction Manual page 16

Version Tek Unit
1- Remove the cap installed on the stove (Fig 20 [A]), running diagonally and then raise it to
release the clips of equipment;
2 Install the optional module separately purchased by the reverse order that the top cover is
removed from the oven, with the same support points (Figure 20 [B]).

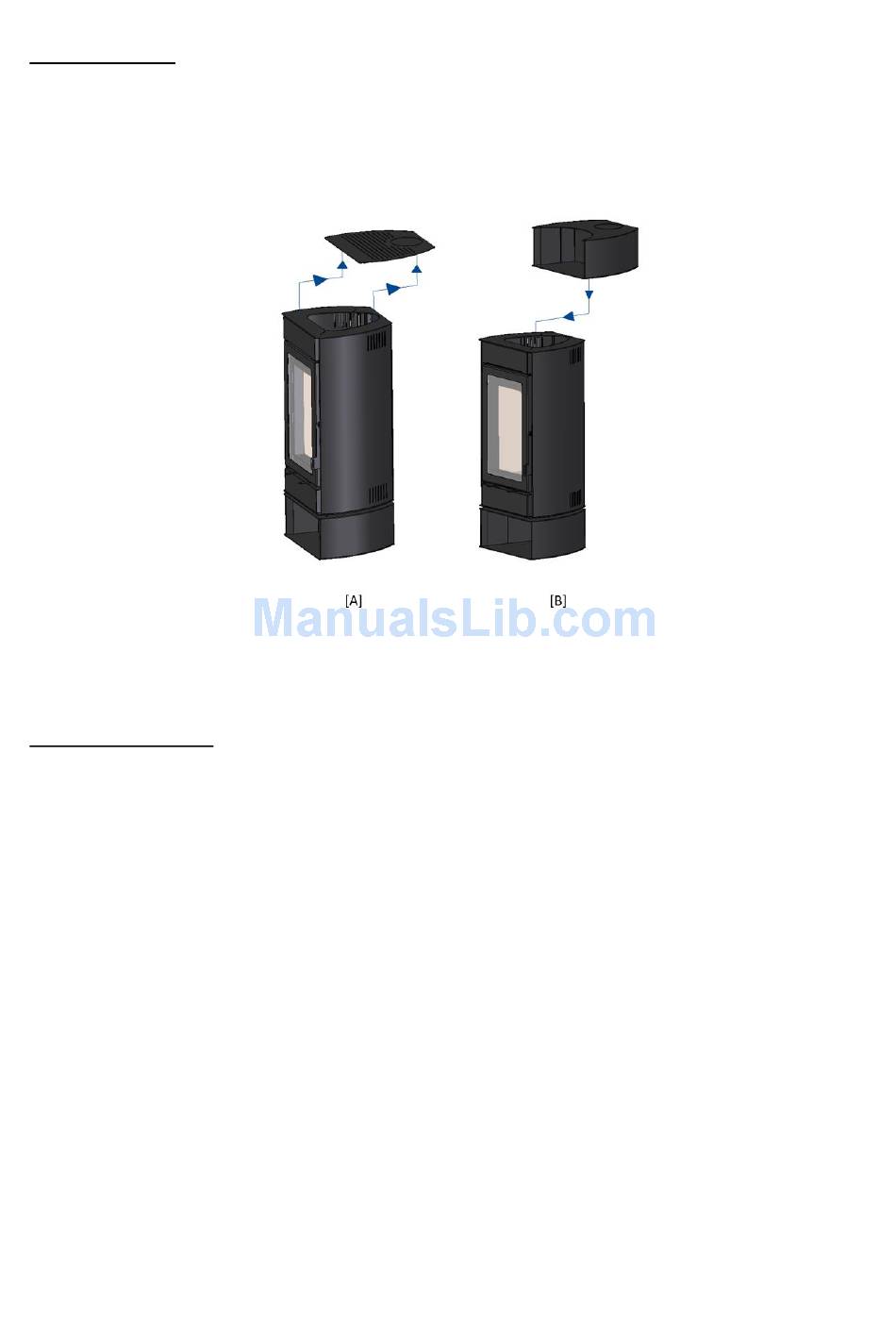

Fig. 20 – [A] Remove stove top; [B] Installation of optional module
System 1 (Figure 21)
1 - Placement of the module (A) in the desired location and position the stove in the top of the
same ensure that the side and the front of the stove are aligned with the side and the front of the
module;
2 - Using screws (B) and washers (C) included in the kit, secure the module to the stove through
existing holes in the top of the module by the inner part;
System 2 (Figure 22)
1 - Placement of the module (A) in the desired location and position the stove in the top of the
same ensure that the side and the front of the stove are aligned with the side and the front of the
module;
2 - Using screws (C) and washers (D) included in the kit, secure the module to the stove through
existing holes in the top of the module by the upper inner part thereof;
3. Remove the container (B) within the module to access the area of the screws fixing the module.
16
