FURTHER INFORMATION
C
210 200
100
260
15
6
1
7
4
NOTES
IMPORTANT ! PRESSURE RELIEF VALVE OUTLET (5)
• The outlet of the safety group emptying must be sized according to the requirements of the DTU (unifi ed technical
document) and must never be obstructed.
It must be connected, via a funnel which allows a distance of at least 20mm, to a vertical exhaust pipe with a diameter
at least equal to that of the device connection pipe.
• The outlet of the safety group emptying must be installed in a place protected from the risk of freezing and inclined
downwards.
WARNIG !
In the absence of such a precaution, the intervention of the safety valve could cause damage to people, animals
and things and THE MANUFACTURER can not be held responsible.

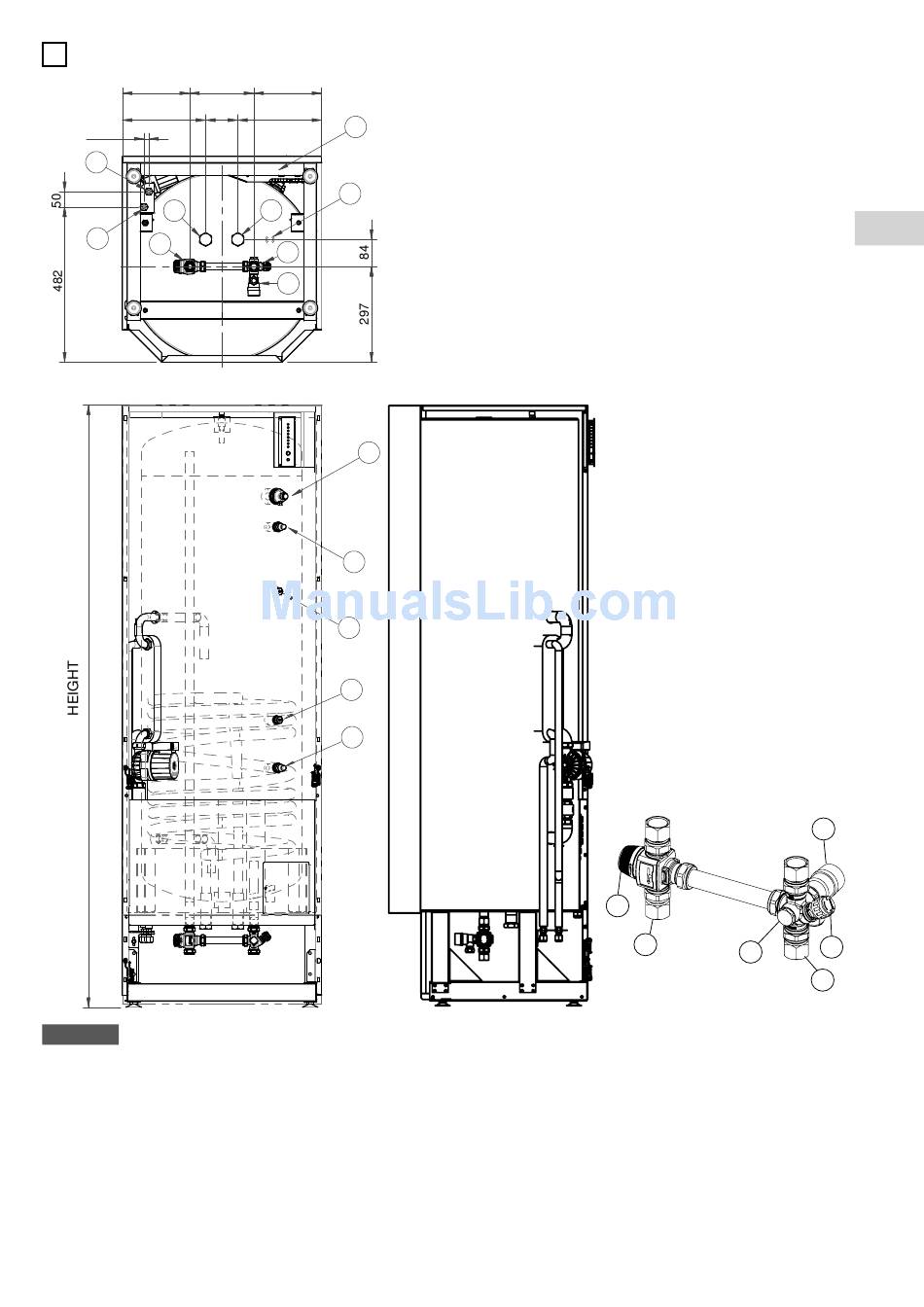

1. SOLAR COIL INLET
210
2. SOLAR COIL OUTLET
260
3. COLD DOMESTIC WATER INLET
8
4. HOT WATER OUTLET
5. PRESSURE RELIEF VALVE OUTLET (6 bar)
SEE NOTES BELOW
6. REFRIGERANT IN
9
7. REFRIGERANT OUT
2
8. ELECTRIC INLETS
9. SENSOR'S THERMOWELL FOR SOLAR SYSTEM
3
10. MAGNESIUM ANODE
11. ELECTRICAL HEATERS
5
12. STRATIFICATION SENSORS
13. WATER DISCHARGE + EXPANSION VESSEL CONNECTION
14. THERMOSTATIC MIXING VALVE
15. COLD WATER INLET VALVE
10
11
12
12
11
HEIGHT
200 LITRE UNIT 1460 mm
300 LITRE UNIT 1875 mm
WEIGHT
200 LITRE UNIT 103 Kg
300 LITRE UNIT 133 Kg
14
9
4
13
EG
5
15
3
