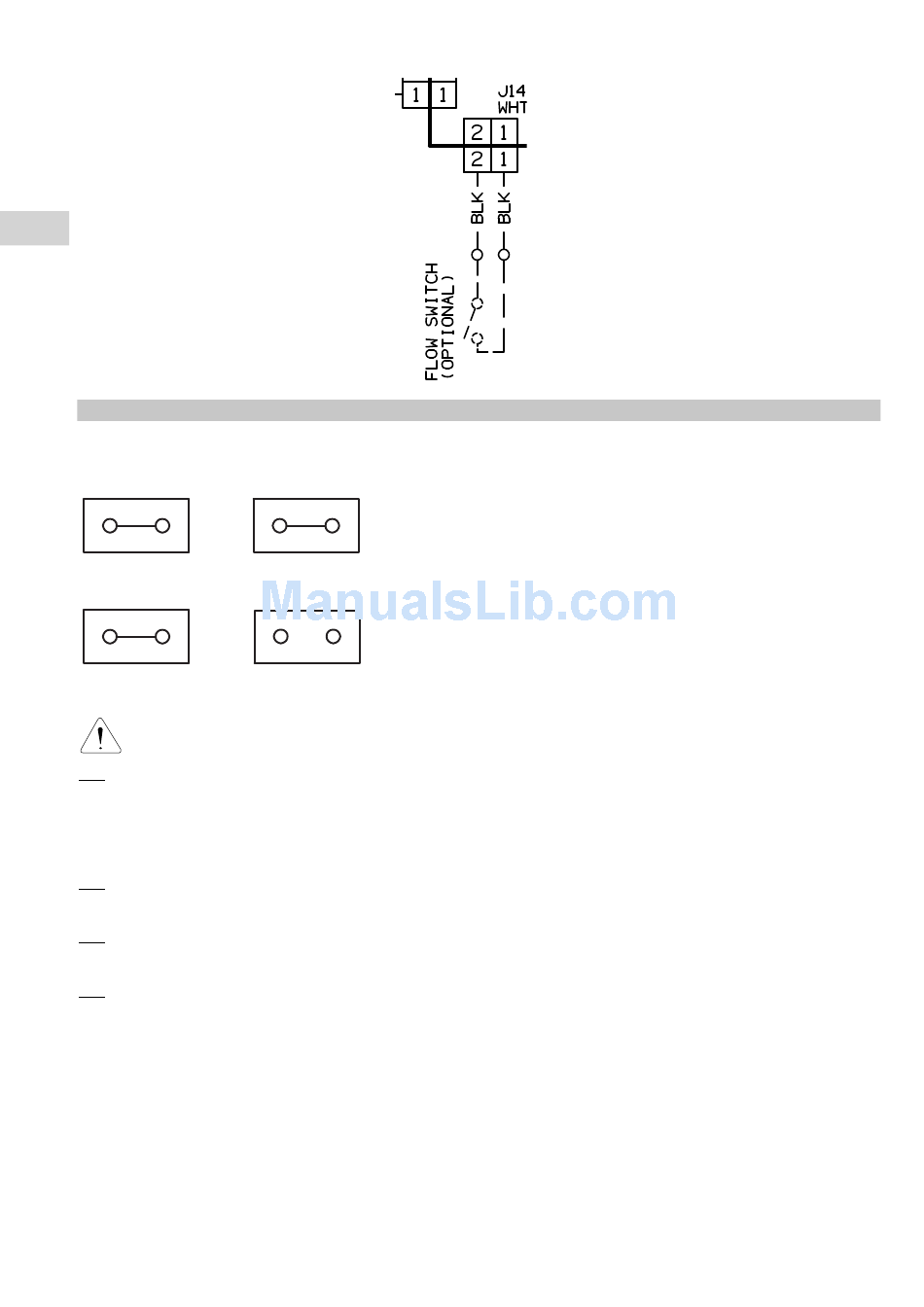

Flow switch connection on DHW (optional)
Connect the fl ow switch to the connector J14.
SEE SECTION G
EG

JUMPERS SETTING (CONTROL BOARD)

FACTORY SETTING
JP1
JP3
WARNING !
Power down the system before changing the settings.
JP1
Application type selection:
CLOSED: connect the unit to the special Emix port (when Emix Tank is part of a system).
OPEN: Connect the unit to refrigerant port on the outdoor unit (if there is no Emix port) -
see DHW application with outdoor unit G30 / G42.
JP2
Internal use. Do not change factory setting. If changed, the unit will not run properly.
JP3
Internal use. Do not change factory setting. If changed, the unit will not run properly.
JP4
Internal use. Do not change factory setting. If changed, the unit will not run properly.
JP1=
JP2=
JP2
JP3=
JP4=
JP4
CLOSED
CLOSED
CLOSED (DO NOT CHANGE)
OPEN (DO NOT CHANGE)
