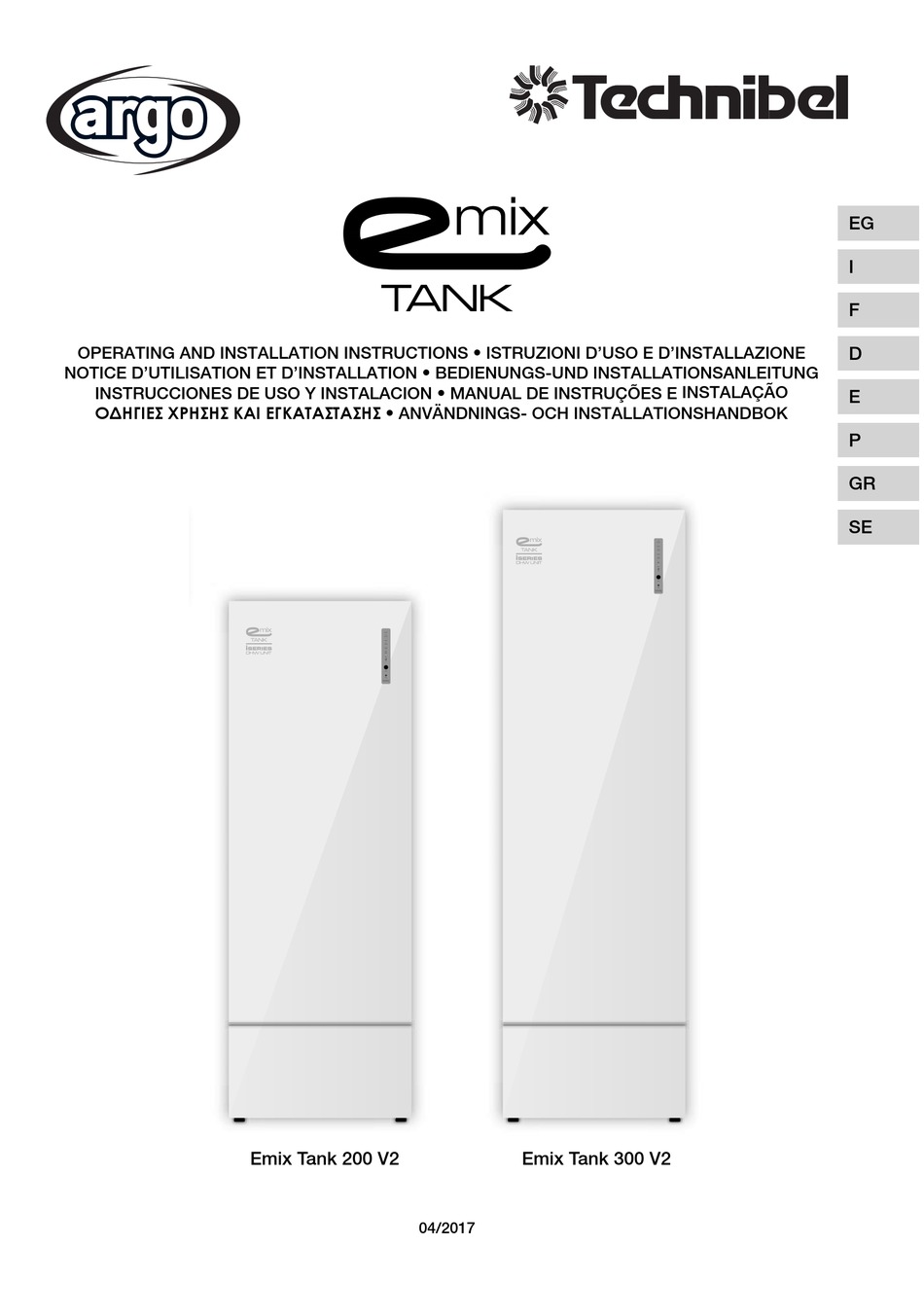

- Page 1 NOTICE D’UTILISATION ET D’INSTALLATION • BEDIENUNGS-UND INSTALLATIONSANLEITUNG INSTRUCCIONES DE USO Y INSTALACION • MANUAL DE INSTRUÇÕES E INSTALAÇÃO ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ ΚΑΙ ΕΓΚΑΤΑΣΤΑΣΗΣ • ANVÄNDNINGS- OCH INSTALLATIONSHANDBOK Emix Tank 200 V2 Emix Tank 300 V2 EMIX TANK 220 EMIX TANK 300...
-
Page 2: Table Of Contents
DECLARATION OF CONFORMITY This product is marked as it satisfies Directives: – LVD no. 2014/35/EU (Standard: EN 60335-1:2012 + A11:2014; EN 60335-2-21:2012). – EMC no. 2014/30/EU (Standard: EN 55014-1:2006 + A1:2009 + A2:2011; EN 55014-2:1997 + A1:2001 + A2:2008; EN 61000-3-2:2014; EN 61000-3-3:2013). –... - Page 3 IMPORTANT! Please read before installation This system meets strict safety and operating standards. For the installer or service person, it is important to install or service the system so that it operates safely and efficiently. Recommendations • The personnel responsible for receiving the unit must conduct a visual inspection in order to identify all damage to which the unit may have been subjected during transport: refrigerating circuit, electrical cabinet, chassis and cabinet.
-
Page 4: Installation Location
When connecting refrigerant tubing • Keep all tubing runs as short as possible (max. 10m), accordingly to the allowable distances from the outdoor unit (see manual). • Use the flare method for connecting tubing. • Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before connecting them; screw by hand and then tighten the nut with a torque wrench for a leak-free connection. -
Page 5: Rating Data
(therefore renewable energy) and providing the service at the same time as heating and cooling the environ- ments. Emix Tank 200 & 300 liters Emix Tank 200 and 300 liters offers you a complete solution, including: • The Emix concepts and components. • A tank of 200 or 300 liters made in steel with porcelainized coating. -
Page 6: Models Combination
MODELS COMBINATION Emix Tank must be connected to an outdoor unit compatible with Emix. For specifi c models see catalogue.(*) (*) The models WITHOUT EMIX PORT can not support this new device for the production of domestic hot water. This manual will use some models abbreviations of compatible outdoor units of the catalogue (Example G30 means AEI1G30EMX-GR9FI30). -
Page 7: Tubing Length And Elevation Difference Limits
TUBING LENGTH AND ELEVATION DIFFERENCE LIMITS Refrigerant Circuit Emix Tank is a component that may be connected with other indoor units at the same time by using the special connec- tion for Emix and duly considering the length of the Emix Tank pipe to be added to the total length set by the outdoor unit (we advise a specifi c insulation of the Emix Tank pipes to guarantee the minimum dispersion of energy). -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS HOW TO REMOVE THE BOTTOM COVER The cover can be removed by pulling it out from the bottom. When the cover is partially removed, pull it towards you. MAIN PARTS Control panel Cold water inlet Hot water outlet Solar coil inlet Solar coil outlet... - Page 9 FURTHER INFORMATION 1. SOLAR COIL INLET 2. SOLAR COIL OUTLET 3. COLD DOMESTIC WATER INLET 4. HOT WATER OUTLET 5. PRESSURE RELIEF VALVE OUTLET (6 bar) SEE NOTES BELOW 6. REFRIGERANT IN 7. REFRIGERANT OUT 8. ELECTRIC INLETS 9. SENSOR’S THERMOWELL FOR SOLAR SYSTEM 10.
- Page 10 REFRIGERANT CONNECTION BETWEEN EMIX TANK AND OUTDOOR UNIT G30 / G42 ONLY DHW (SEE SECTION “ONLY DHW APPLICATION”) R410A, 3/8” IN R410A, 3/8” OUT Emix Tank G140 R410A, 3/8” IN R410A, 3/8” OUT Emix Tank OTHER OUTDOOR UNITS R410A, 3/8” IN R410A, 3/8”...
- Page 11 HYDRAULIC CONNECTION BETWEEN EMIX TANK AND DOMESTIC WATER CIRCUIT • Connect the water to the tank. Install an expansion vessel of 18 litres minimum and service valves on the connections of the water circuit in order to make installation and maintenance operations easier. The output of the safety valve should be connected to a drain.
- Page 12 CONNECTION OF FLOW SWITCH ON DOMESTIC HOT WATER (OPTIONAL) FLOW SWITCH Place the fl ow switch on the domestic hot water tap as shown in fi gure. Connect the fl ow switch to the connector J14 on the main board. FLOW SWITCH SPECIFICATIONS: Diameter: 3/4”...
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS General • The acceptable voltage variation is: ± 10% during operation. • The electrical connection conduits must be fixed. • Class 1 unit. Power supply and signal cables connection Emix Tank must always be connected to the electrical power supply in a separate manner compared to the connection of the outdoor unit, using only the bipolar shielded cable as all the other indoor units. - Page 14 WIRING DIAGRAM TERMINAL BLOCKS AND ELECTRICAL CONNECTIONS REMOTE CONTROL ON / OFF TO OUTDOOR UNIT NOTE : The unit must be supplied with a dedicated DELAYED FUSE electrical line. WARNING ! Main switch for disconnection from the Always connect Phase to L and Neutral to N supply line must have a contact separation DO NOT INVERT THE WIRES, OTHERWISE in all poles that provides full disconnection...
- Page 15 LENGTH, SIZE OF WIRES AND DELAYED FUSE L ( m ) S ( mm L ( m ) S ( mm SEE OUT.UNIT 0,75 16 A Supply power wire A: Multipolar electric wire. Size and length of the suggested electric wire are showed on table. The wire must be Mod.
-
Page 16: Jumpers Setting (Control Board)
Flow switch connection on DHW (optional) Connect the fl ow switch to the connector J14. SEE SECTION G JUMPERS SETTING (CONTROL BOARD) FACTORY SETTING JP1= CLOSED JP2= CLOSED JP3= CLOSED (DO NOT CHANGE) JP4= OPEN (DO NOT CHANGE) WARNING ! Power down the system before changing the settings. -
Page 17: Switches Setting (Control Board)
SWITCHES SETTING (CONTROL BOARD) WARNING ! Power down the system before changing the settings. SW1: SETTING OF ELECTRICAL BACKUP HEATERS See section “Setting of electrical heater elements”. SW3: SETTING OF TANK VOLUME Set SW3 in order to select the water volume of the tank. SW3 is pre-set in the factory OFF - OFF = 300 l ON - OFF = 200 l EMIX TANK CONNECTION- ONLY DHW APPLICATION - G30 / G42... -
Page 18: How To Disconnect And/Or Remove Emix Tank
HOW TO DISCONNECT AND/OR REMOVE EMIX TANK UNIT How to disconnect the refrigerant circuit In case of Emix Tank is connected to a normal indoor unit port, (for example with G30 or G42) the unit must be discon- nected exactly as any other indoor unit. On the outdoor unit, electrically disconnect the reversing valve to force the system in cooling. -
Page 19: System Layout
SYSTEM LAYOUT... -
Page 22: Operating Instructions
OPERATING INSTRUCTIONS Safety instructions Read this booklet carefully before using this appliance. If you still have any difficulties or problems, consult your dealer for help. This appliance is designed to give you domestic hot water. Use this only for its intended purpose as described in this ... -
Page 23: Control Panel
CONTROL PANEL The control panel is located on the front of Emix Tank. From top to bottom we can see: 1...5: GREEN LED: they indicate the water tempera- ture, both in the confi guration menu (desired temperature) and in the operation menu (actual temperature). -
Page 24: How To Use Emix Tank
HOW TO USE EMIX TANK When Emix Tank unit is correctly connected and electrically powered the RED LED is ON (stand by). Power ON / OFF of Emix Tank To switch on Emix Tank, push and hold the BUTTON for about 4 seconds until the RED LED turns off and the GREEN LEDs of water temperature light up. - Page 25 Antilegionella cycle setting To activate / deactivate the Antilegionella cycle, enter the confi guration menu, then quickly press the BUTTON until the only YELLOW LED is fl ashing. Then wait a few seconds until all the 5 GREEN LEDs light up and press the BUTTON once more. 3 consecutive beeps confi rm the setting.
-
Page 26: Operation Of The Electrical Heater Elements
OPERATION OF THE ELECTRICAL HEATER ELEMENTS In addition to the already described modes in the section “EMIX TANK CONFIGURATION”, Emix Tank software can auto- matically manage electrical back up heaters under certain conditions. This mean that these operation modes are not to be set and that can not be deactivated. -
Page 27: Auto-Diagnosis Table
AUTO-DIAGNOSIS TABLE Error Cause BLUE YELLOW Error on outdoor unit Communication error with outdoor unit Sensor REFRIGERANT OUT damaged or disconnected Sensor H2O IN damaged or disconnected Sensor H2O OUT damaged or disconnected ... -
Page 28: Wiring Diagram
WIRING DIAGRAM - SCHEMA ELETTRICO - SCHÉMA ÉLECTRIQUE - SCHALTPLAN - ESQUEMA ELÉCTRICO - ESQUEMA ELÉTRICO - ΔΙΑΓΡΑΜΜΑ ΣΥΝΔΕΣΜΟΛΟΓΙΑΣ - ELSCHEMA... - Page 29 Via Alfeno Varo, 35 - 25020 Alfianello - BS - Italy Tel. +39 0331 755111 - Fax +39 0331 755501 www.argoclima.com...
