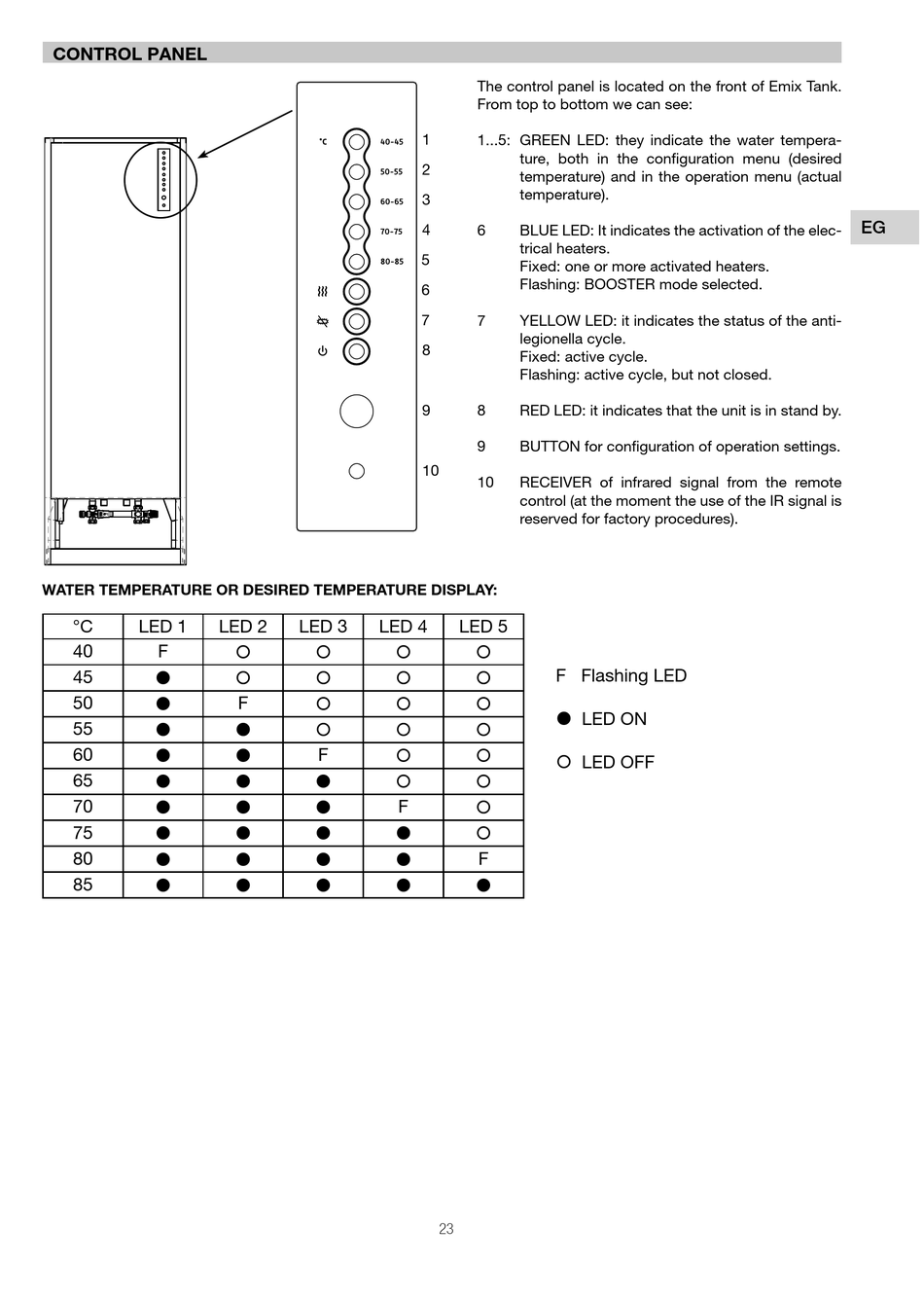

CONTROL PANEL

WATER TEMPERATURE OR DESIRED TEMPERATURE DISPLAY:
°C LED 1
40 F

45

50
55 

60

65

70
75 

80

85
LED 2 LED 3 LED 4
 
 

F



F
 
 
 
 
 
The control panel is located on the front of Emix Tank.
From top to bottom we can see:
1
1...5: GREEN LED: they indicate the water tempera-
ture, both in the confi guration menu (desired
2
temperature) and in the operation menu (actual
temperature).
3
4
6 BLUE LED: It indicates the activation of the elec-
trical heaters.
5
Fixed: one or more activated heaters.
Flashing: BOOSTER mode selected.
6
7
7 YELLOW LED: it indicates the status of the anti-
legionella cycle.
8
Fixed: active cycle.
Flashing: active cycle, but not closed.
9 8 RED LED: it indicates that the unit is in stand by.
9 BUTTON for confi guration of operation settings.
10
10 RECEIVER of infrared signal from the remote
control (at the moment the use of the IR signal is
reserved for factory procedures).
LED 5
 
  F Flashing LED
 
 LED ON
 
 
 LED OFF
 

F



F
 
