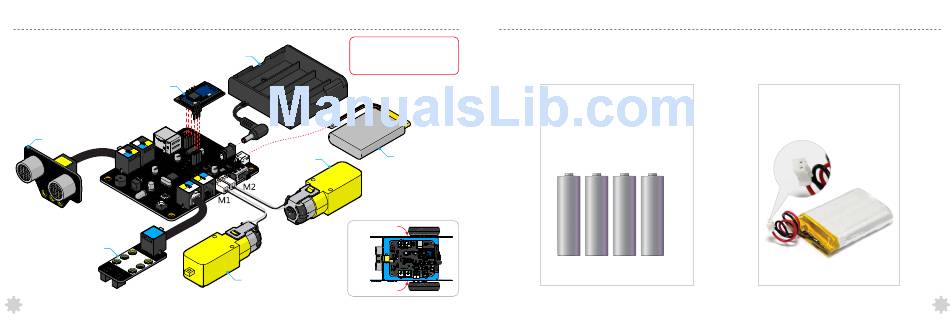

Wiring

Bluetooth/2.4G Module
Me Ultrasonic Sensor
M a
k e
b l o
c k
Line Follower Sensor
9
Note:
You may need to switch the sequence
AA Battery Holder
of two wires (M1, M2) to correct rotation
direction.
Motor (Right)
Motor (Right)
Motor (Left)
Motor (Left)

Batteries Suggestion

mCore Voltage Range: 3.7V DC-6V DC. There are two options for the power supply:
Option 1:
4 x AA batteries (Not included)
3.7V Lithium Battery
Option 2:
3.7V Lithium Battery (not included)
with standard 2.0 interface. It
supports on-board charge via USB
cable.
