EPG Views

Tables Detail View - Section View

Version 00e
MTS400 Series Analyzer Applications User Manual
A specific departure from the Table Summary view described previously is the
EPG view that is displayed when a section of the EPG table is highlighted. For a
description of the general presentation of the EPG view, see page 1- -137.

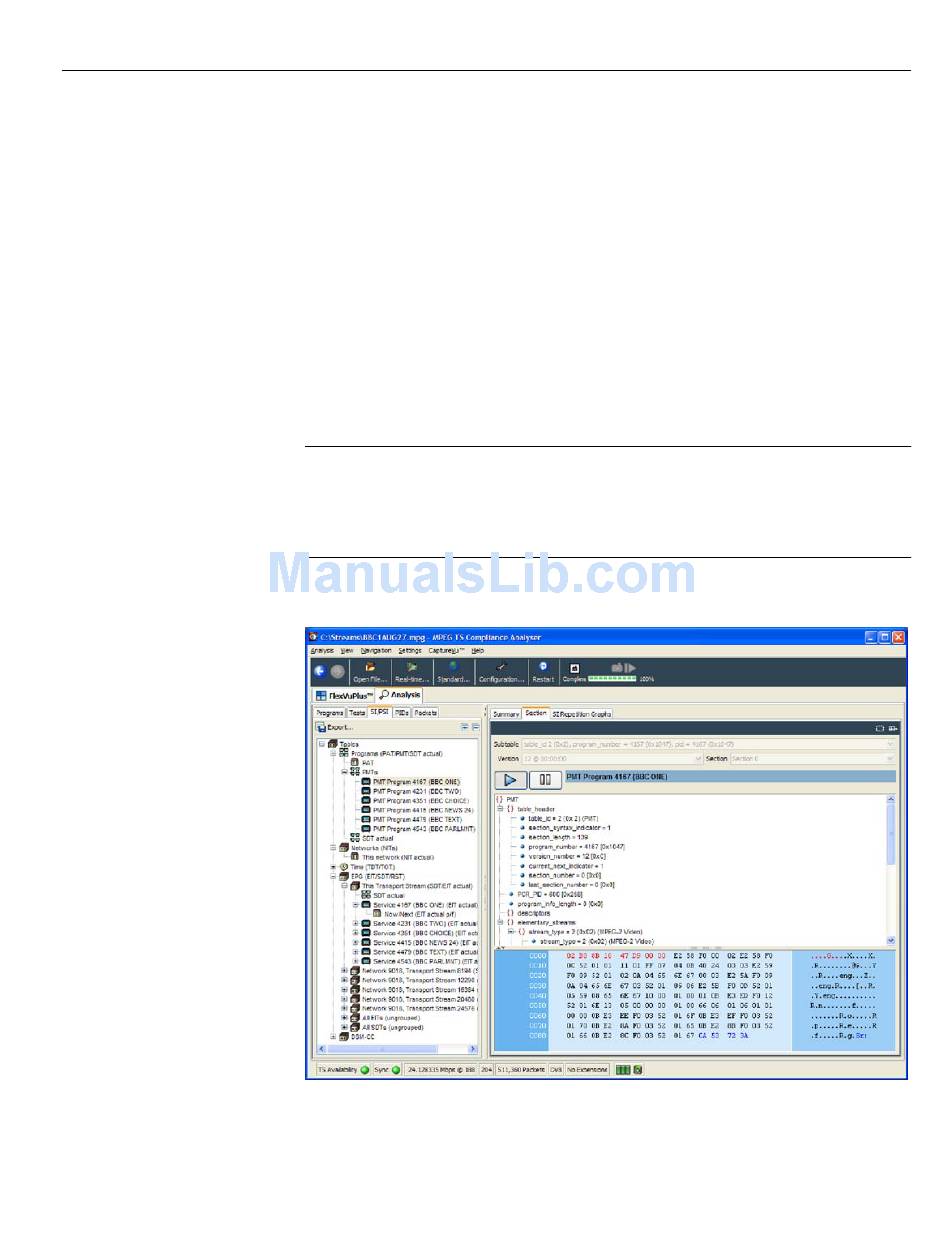

The detailed section view is available when the selected node in the service
information tree represents a table or subtable in the transport stream. During
real-time analysis, the view is continually updated.
The subtable identity, version, and section are displayed at the top of the table
pane.
NOTE. In deferred mode, where two or more subtables, versions or sections are
found in the stream, the relevant field is active, and an alternative selection can
be made from the drop-down list.
In real-time mode, only the latest version and section can be viewed.
The table pane shows all fields that make up a section (for example, PMT). The
fields are arranged in a hierarchical order. The presence of subordinate fields is
TSCA - Using the Tables View
1- 69
