SECTION I

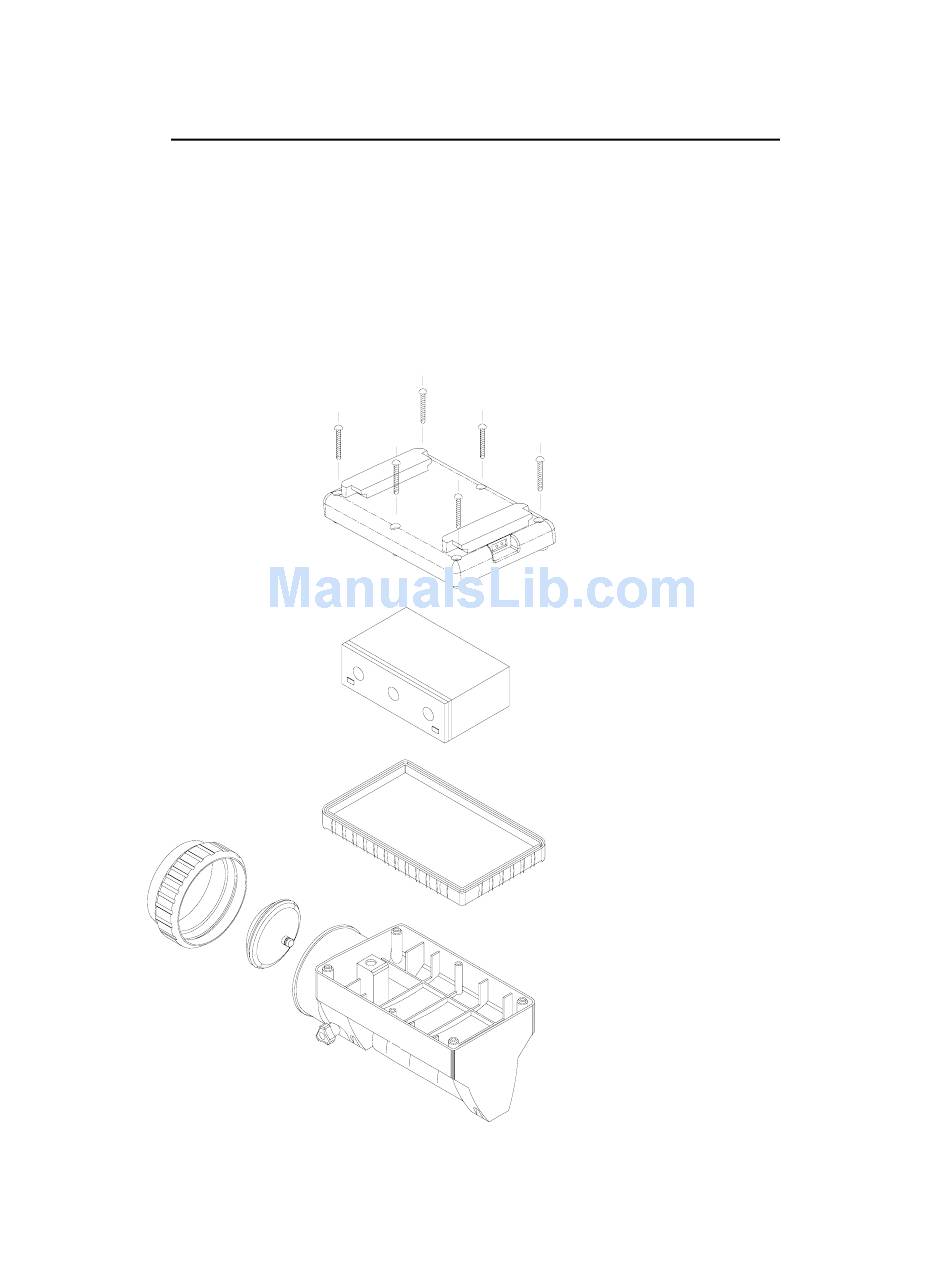

LITEBOX HOUSING DISASSEMBLY/ASSEMBLY PROCEDURES
Disassembly
1. Use a Phillips screwdriver to remove the six screws from the bottom of the Litebox.
2. Separate the top and bottom halves of the housing by pulling them apart.
3. Remove the black rubber gasket.
4. Disconnect the battery leads and remove the battery.
- 5 -
