Pinout Connections Examples; One 18 Pin Connector - Danfoss JS7000 Electrical Installation Instructions

Electrical Installation
JS7000 Analog and CAN Output
Electrical installation

One 18 pin connector

8 | © Danfoss | May 2017

Pinout connections examples

Analog grip pinout connections example
Pin Signal number
number
7 Digital1
12 Digital6
14 Digital8
3 Proportional1
5 Proportional3

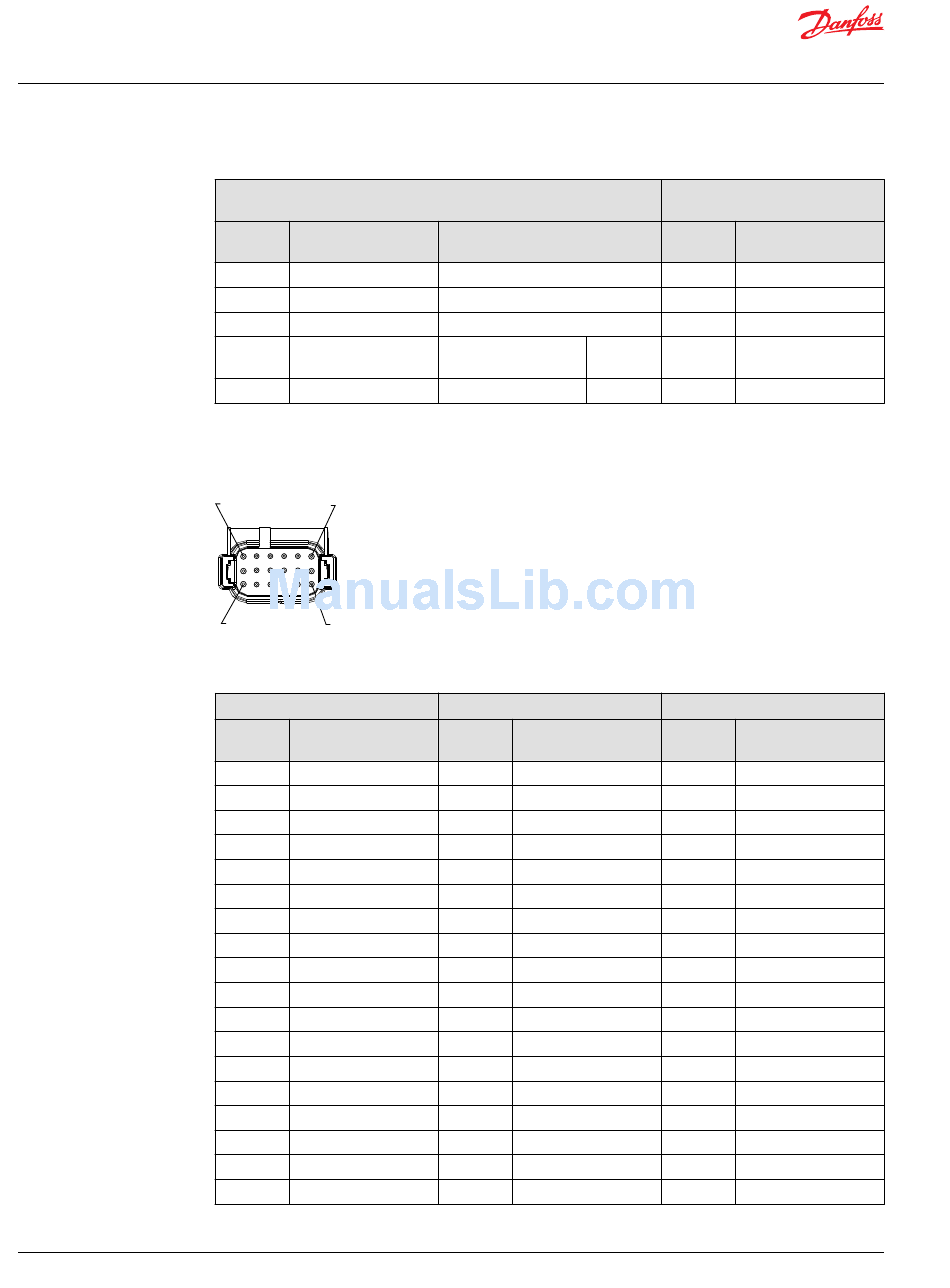

18 pin DEUTSCH connector (DT16-18SB-K004)
18
13
6
1
P200065
Pinouts
Analog
Pin Signal name
number
1 Battery Ground
2 +5V
*
3 Proportional1
*
4 Proportional2
*
5 Proportional3
*
6 Proportional4
7 Digital1
8 Digital2
9 Digital3
10 Digital4
11 Digital5
12 Digital6
13 Digital7
14 Digital8
15 Proportional Y Axis 1
16 Proportional X Axis 1
17 Proportional Y Axis 2
18 Proportional X Axis 2
*
Reference Proportional analog pinouts
Description
Faceplate push-button 1
Back side push-button 6
Trigger switch
Face plate proportional PN, S2, S3
1
Back side proportional 3 PN, S2, S3
CAN
Pin Signal name
number
1 Battery Ground
2 Battery Power
3 CAN Hi
4 CAN Lo
5 CAN Shield
6 Not Connected
7 Reference Ground
8 Reference +5V
9 Not Connected
10 Not Connected
11 Not Connected
12 Not Connected
13 Not Connected
14 Not Connected
15 Proportional Y Axis 1
16 Proportional X Axis 1
17 Proportional Y Axis 2
18 Proportional X Axis 2
on page 7 for proportional roller with redundant output (HR option)
CAN and CAN+ minimum pinout
connections example
Pin Signal number
number
1 Battery Ground
2 Battery Power
3 CAN Hi
4 CAN Lo
5 CAN Shield
CAN+
Pin Signal name
number
1 Battery Ground
2 Battery Power
3 CAN Hi
4 CAN Lo
5 CAN Shield
6 Digital Input 7
7 Sensor Ground
8 Sensor Power +5V
9 Analog/Digital Input 1
10 Analog/Digital Input 2
11 Analog/Digital Input 3
12 Analog/Digital Input 4
13 Digital Input 1
14 Digital Input 2
15 Digital Input 3
16 Digital Input 4
17 Digital Input 5
18 Digital Input 6
