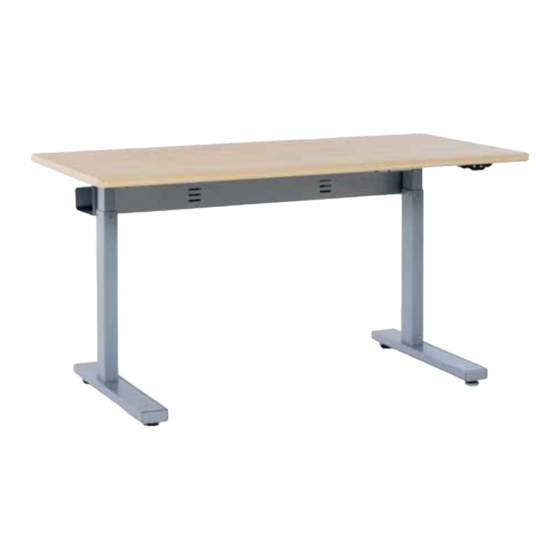

Elevate II 48w 29d
Elevate II 60w 29d
For the latest User Installation Guide please visit: www.ergotron.com
300-5577-00 rev. J • 10/16
A S S E M B LY I N S T R U C T I O N S
Elevate
Single Surface Table
Part#
MVBD48SS/xx
MVBD60SS/xx
II
™
1 of 8
Advertisement
Related Manuals for Ergotron Elevate II
Summary of Contents for Ergotron Elevate II

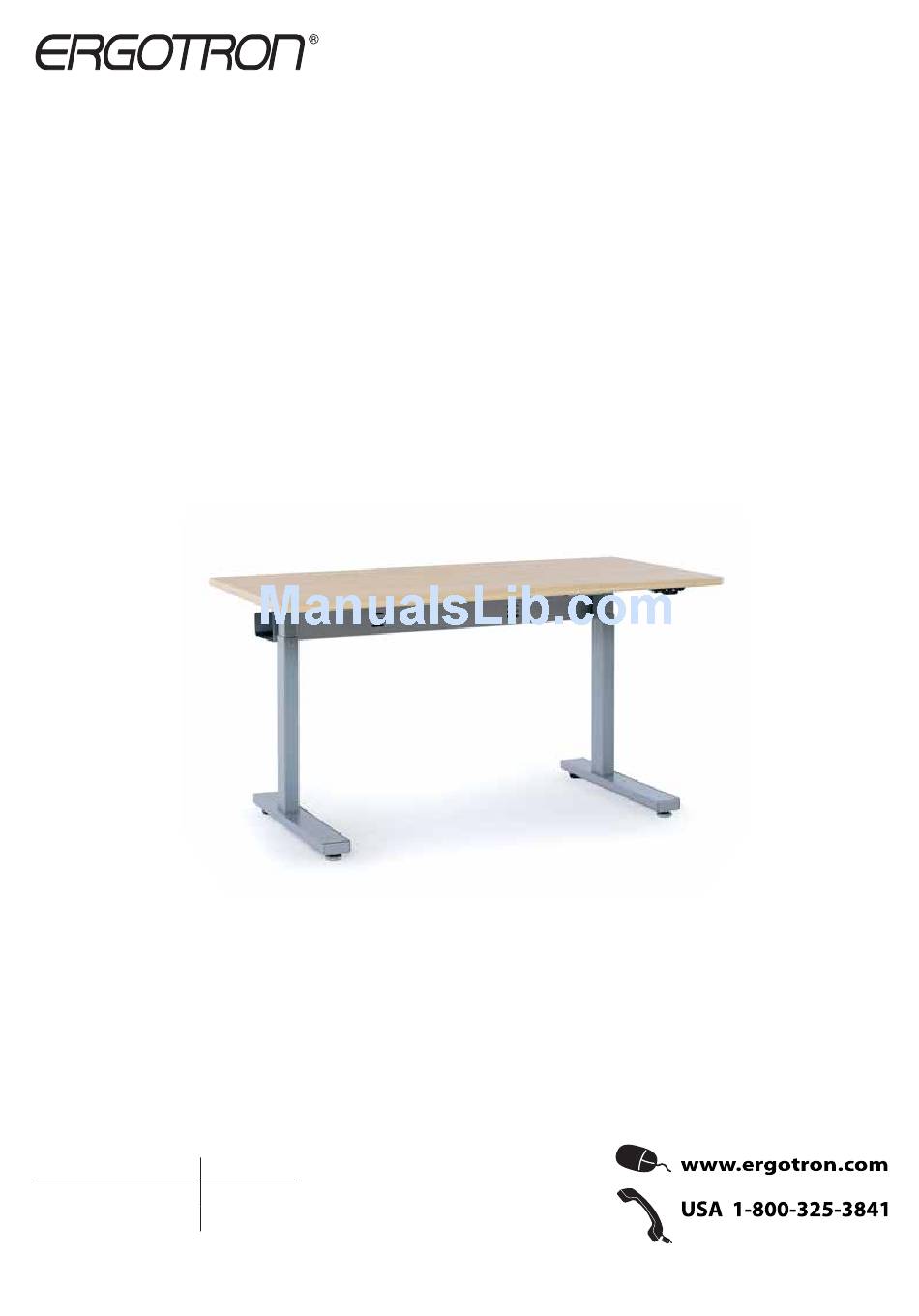

- Page 1 A S S E M B LY I N S T R U C T I O N S Elevate ™ Single Surface Table Product Part# Elevate II 48w 29d MVBD48SS/xx Elevate II 60w 29d MVBD60SS/xx For the latest User Installation Guide please visit: www.ergotron.com 300-5577-00 rev. J • 10/16 1 of 8...
-
Page 2: Important Safety Instructions
IMP ORTA NT S AF ET Y I N S T RUC TI O NS When using an electrical furnishing, basic precautions should always be followed, including the following. Read all instructions before using Elevate II. D A N G E R To reduce the risk of electric shock, always unplug this furnishing from the electrical outlet before cleaning. - Page 3 02 Gusset X (not shown) 225-4611-00 03 Gusset Y 225-4612-00 TO O L S 04 Electric Leg 575-5085-00 Your Elevate II comes with these tools: 05 Motor Housing 225-4613-00 • 5/32" hex Anthro driver 06 Cross Pan • 5/32" hex driver bit 225-4619-00 225-4615-00 •...
- Page 4 S T E P 1 - AT TAC H G U S S E TS TO TO P Lay the worksurface upside down on a cushioned, non-marring surface. Locate the front edge of the table. On Plus tables, the front of the table has a sloping waterfall edge.
- Page 5 STEP 3 - INSTALL THE CROSS PAN Align the Cross Pan with the Leg Assemblies so the pair of fl anges on the pan line up with the pre-drilled holes on the table. Attach the back of the pan to the top with four 3/4" Button Hd PB Screws (325-5575-00) Attach the front of the pan to the top with three more 3/4"...
- Page 6 Step 5 - INSTALL C ABLE TR AY Align the Cable Tray with the back of the table so the holes on the threaded posts on the cross pan line up with the holes on the cable tray. Attach the tray to the pan with three Nylock Nuts using your own 3/8" socket or the 3-way wrench provided.
- Page 7 Duty Cycle Elevate II has a 10% duty cycle. This provides 6 minutes of movement per hour or two minutes of continuous use at full load. Once the table reaches its duty cycle, the table shuts down to cool; this usually takes about 20 minutes.
-
Page 8: Troubleshooting Guide
For local customer care phone numbers visit: http://contact.ergotron.com © 2016 Ergotron, Inc. All rights reserved. All trademarks are the property of their respective companies. Anthro is a registered trademark and brand of Ergotron Inc. Anthro-DNA is a trademark of Ergotron Inc.
