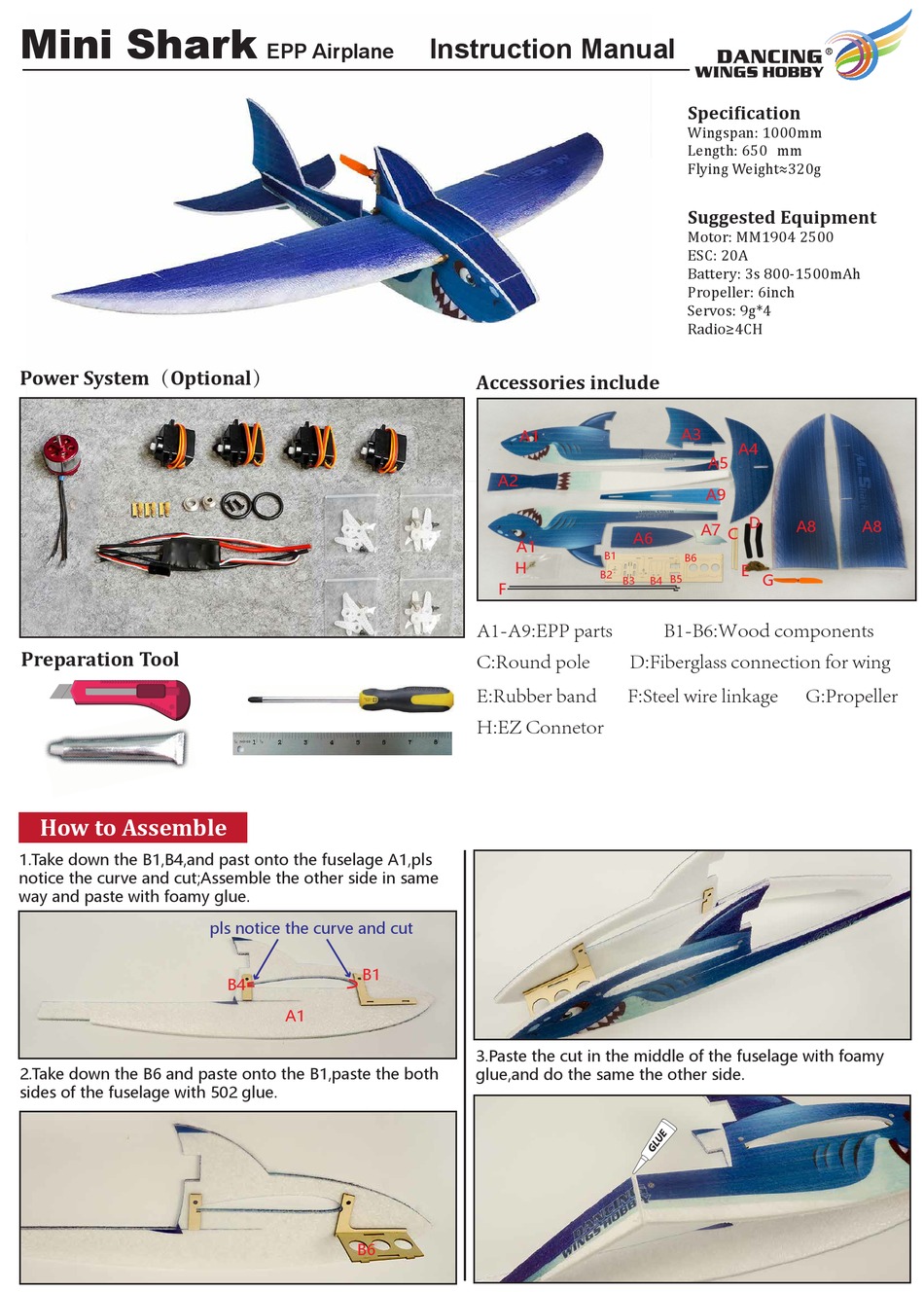

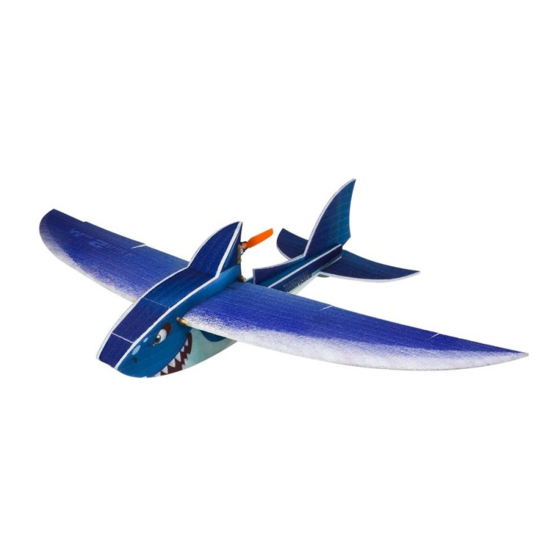

Mini Shark
Power System（Optional）
Preparation Tool
How to Assemble
1.Take down the B1,B4,and past onto the fuselage A1,pls
notice the curve and cut;Assemble the other side in same
way and paste with foamy glue.
2.Take down the B6 and paste onto the B1,paste the both
sides of the fuselage with 502 glue.
EPP Airplane
pls notice the curve and cut
B1
B4
A1
B6
Instruction Manual
Accessories include
A1
A2
A1
B1
H
B2
F
A1-A9:EPP parts
C:Round pole
E:Rubber band
H:EZ Connetor
3.Paste the cut in the middle of the fuselage with foamy
glue,and do the same the other side.
Wingspan: 1000mm
Speci�ication
Length: 650 mm
Flying Weight≈320g
Motor: MM1904 2500
Suggested Equipment
ESC: 20A
Battery: 3s 800-1500mAh
Propeller: 6inch
Servos: 9g*4
Radio≥4CH
A3
A4
A5
A9
D
A8
A7
C
A6
B6
E
G
B4 B5
B3
B1-B6:Wood components
D:Fiberglass connection for wing
F:Steel wire linkage
A8
G:Propeller
