Insportline RK4201 Assembly Instructions

Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
RK4201
OWNER'S MANUAL
ASSEMBLY INSTRUCTIONS

Advertisement

loading

Related Manuals for Insportline RK4201

Summary of Contents for Insportline RK4201

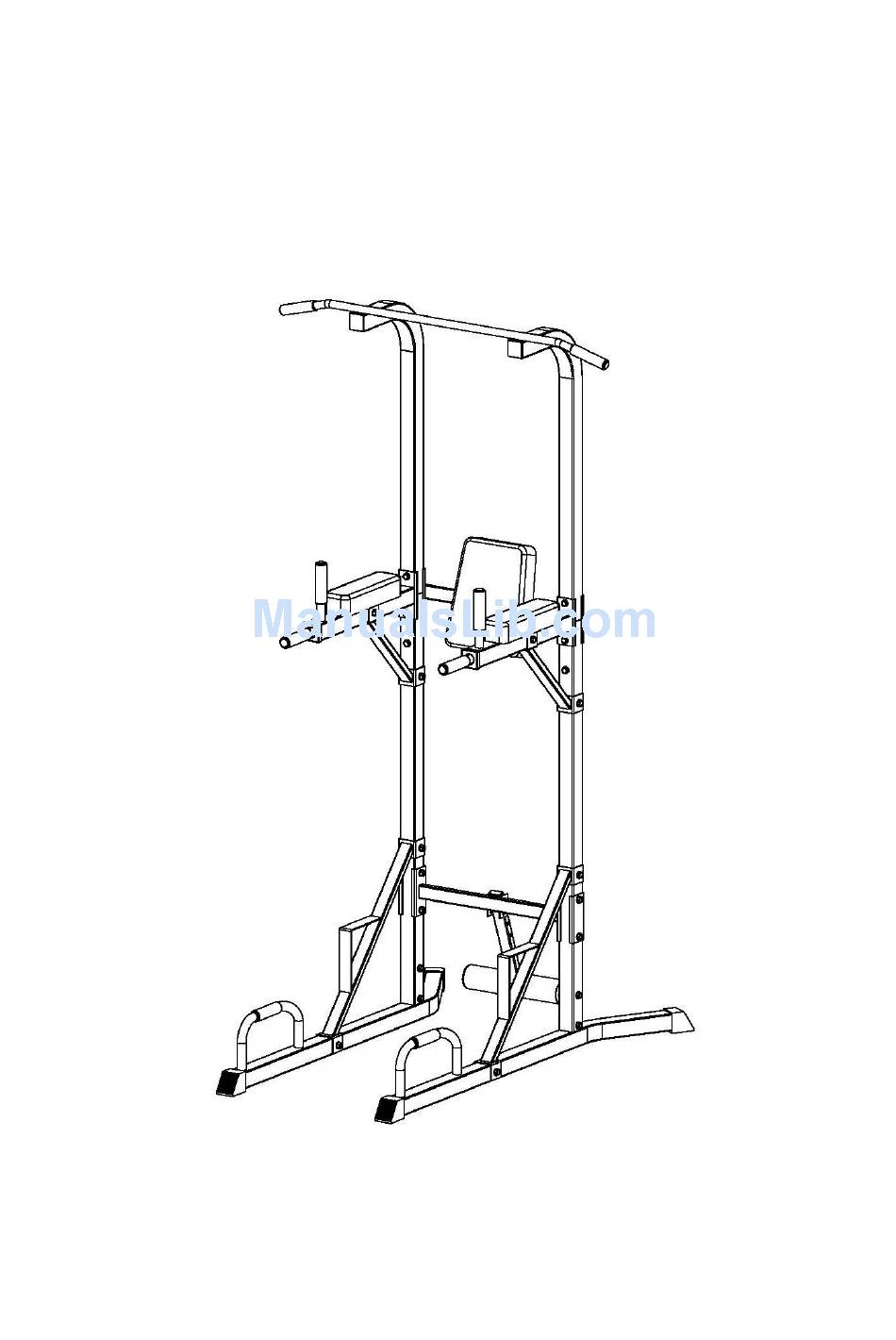

  • Page 1 RK4201 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS...
  • Page 2 HARDWARE ILLUSTRATION...

  • Page 3: Parts List

    PARTS LIST A-1x N-2x 13-4x-M10*20 LEFT BEAM JOINT TUBE CROSS HEAD BOLT B-1x 1-1x 14-2x-M10*20 RIGHT BEAM BACK REST BOLT C-2x 2-2x 15-6x-M10*65 DOWN POST ARM REST BOLT D-1x 3-4x 16-18x-M10*70 HORIZONTAL SQUARE END CAP BOLT SUPPORT E-2x 4-2x 17-6x-8 DIAGONAL WASHER PLASTIC BUSHING...

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 1. Attach square end caps (3) to left beam (A) and right beam (B). Attach handle support (K) to left beam (A) and right beam (B) with cross head bolt M10*20 (13). 2. Slide down posts (C) onto left beam (A) and right beam (B), screw with two bolts M10*20 (14), four bolts M10*65 (15), ten washers 10 (18) and four nuts M10 (20).
