Connecting your DVI video monitor

¦ Note
DVI video monitor.
In order to preview the video output from your Matrox RT.X2 system, the Matrox
RT.X2 card has a DVI connector that's used to connect a DVI monitor that
accepts digital input, such as a digital flat-panel LCD monitor.
¡ Important Only DVI monitors that accept digital input are supported. In
order to preview full-resolution HDV video, your DVI monitor must support
a display resolution of at least 1920 × 1200.

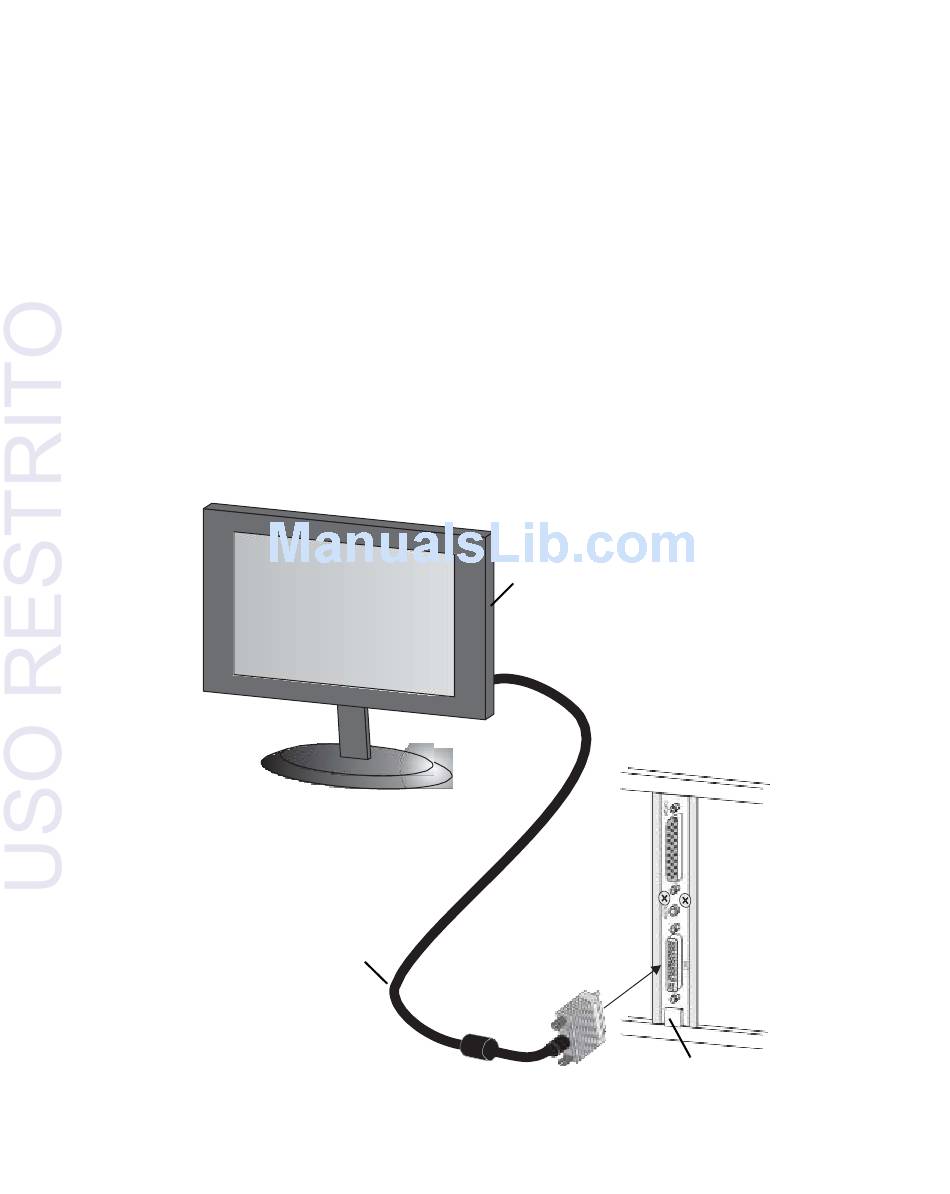

° To connect a DVI video monitor:
Connect the DVI cable to your monitor following the manufacturer's
1
instructions for your monitor. Some monitors may have the DVI cable
permanently attached to the back of the monitor.
2 Connect the other end of the DVI cable to the DVI connector on your
installed RT.X2 card.
Connecting your external devices
RT.X2 LE and RT.X2 SD do not have a DVI connector for connecting a
DVI cable
(not supplied)
DVI video monitor
RT.X2 card
bracket
