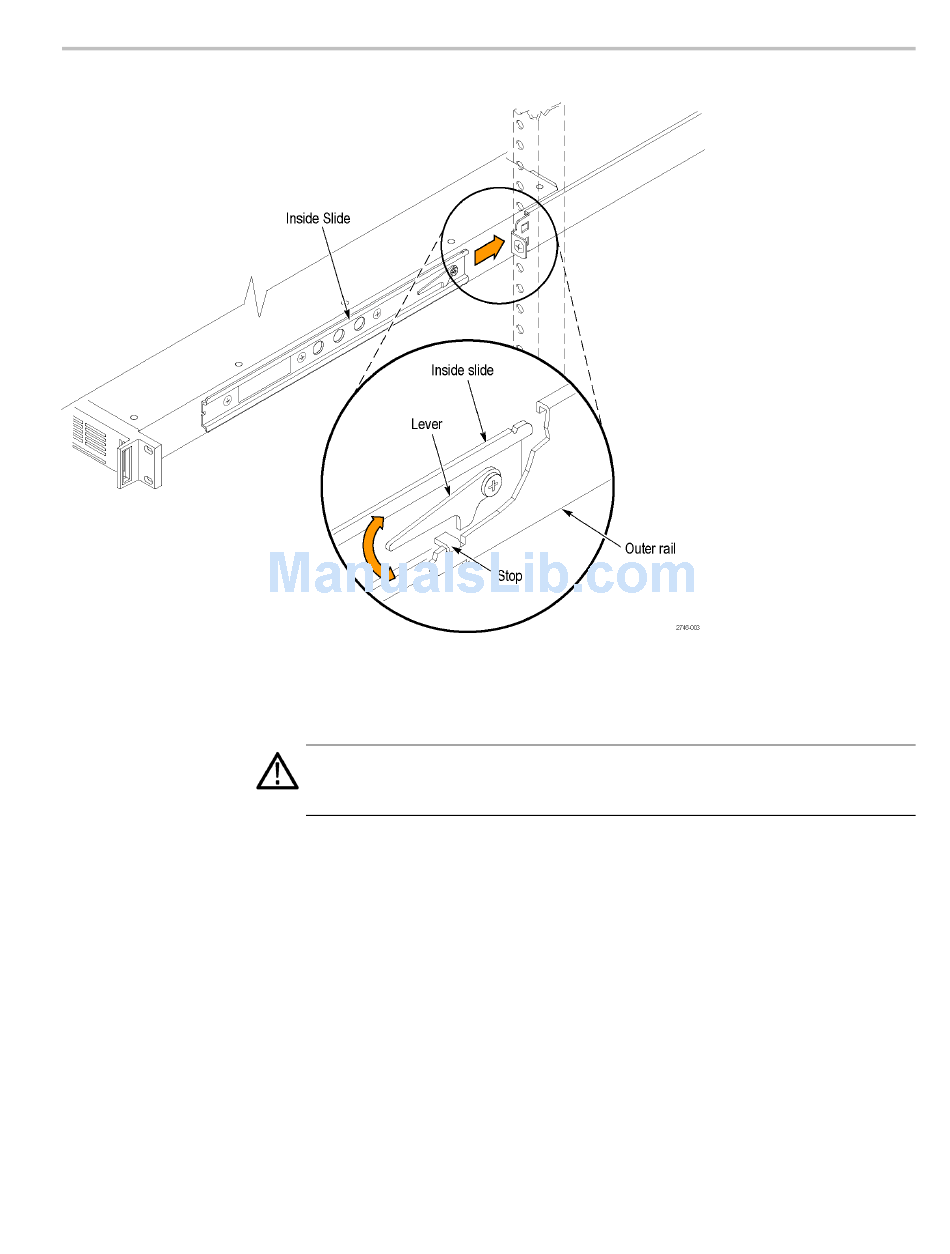

Figure 13: Installing or removing the instrument into or from the rack

Video Sync Pulse Generator and ECO422D SD/HD Changeover Unit System Integration
To remove the instrument from the equipment rack.
WARNING.
To prevent injury when removing the product from the rack, do not
forcefully and abruptly pull the product from the rack. Pull with the minimum
force required to move the instrument with a consistent, even motion.
1. Loosen the knob screws, if present, that attach the front of the instrument
to the rack.
2. Gently pull the instrument toward you until you can reach the levers at the
rear of the instrument.
3. Tilt both lever handles upward simultaneously to allow them to clear the
stops. (See Figure 13.)
4. Pull the instrument past the stops and out of the rack.
Installation
29
