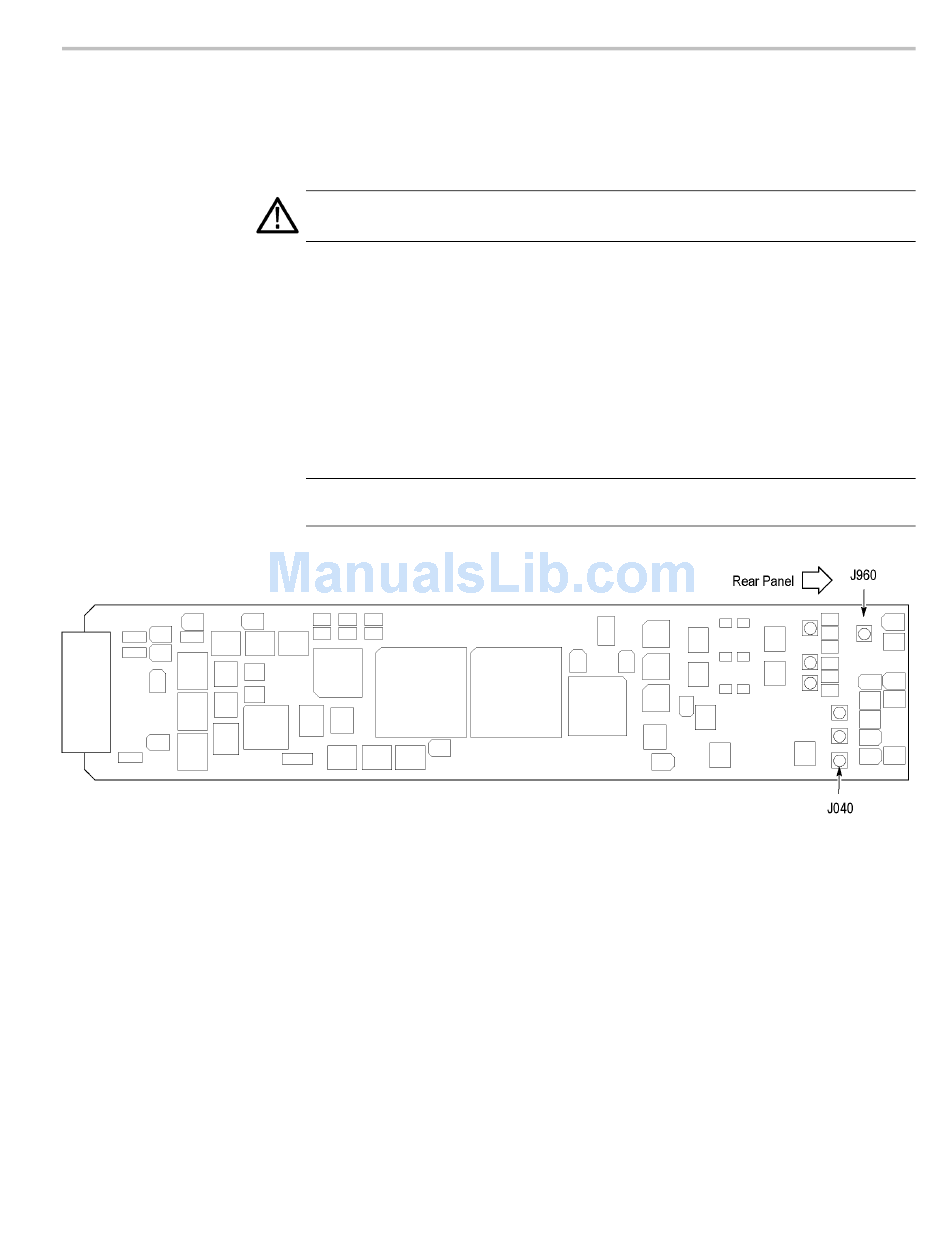

Figure 33: Location of J040 and J960 on the AGL7 module

Video Sync Pulse Generator and ECO422D SD/HD Changeover Unit System Integration
Changing the input/output configuration. The CW connector is configured at the
factory to be an input for CW signals. You can reconfigure the connector to output
a 48 kHz word clock signal by changing the position of an internal cable.
CAUTION.
To prevent damage to the mainframe and the module, be sure to
disconnect the power cord before removing the module.
To output a 48 kHz word clock signal from the CW connector:
1. Disconnect the coaxial cable from the connector labeled J040 on the
AGL7 module. (See Figure 33.)
2. Reconnect the cable to the connector labeled J960 on the AGL7 module.
3. Place the 48 kHz CLOCK label provided with the module on the rear panel
below the CW connector.
NOTE.
The word clock signal automatically follows the format of the
Black 1 signal.
Instrument connections
59
