Arkon Slim-Grip SM515 User Manual

SM427 | Bicycle Handlebar Mount with Universal Holder SM515 |
Slim-Grip™ Universal Holder with Mini Windshield Suction and Dashboard Mount
GN015-HPB-2
Mini Windshield
Suction Pedestal
AP013
Circular Adhesive
Dashboard Disk

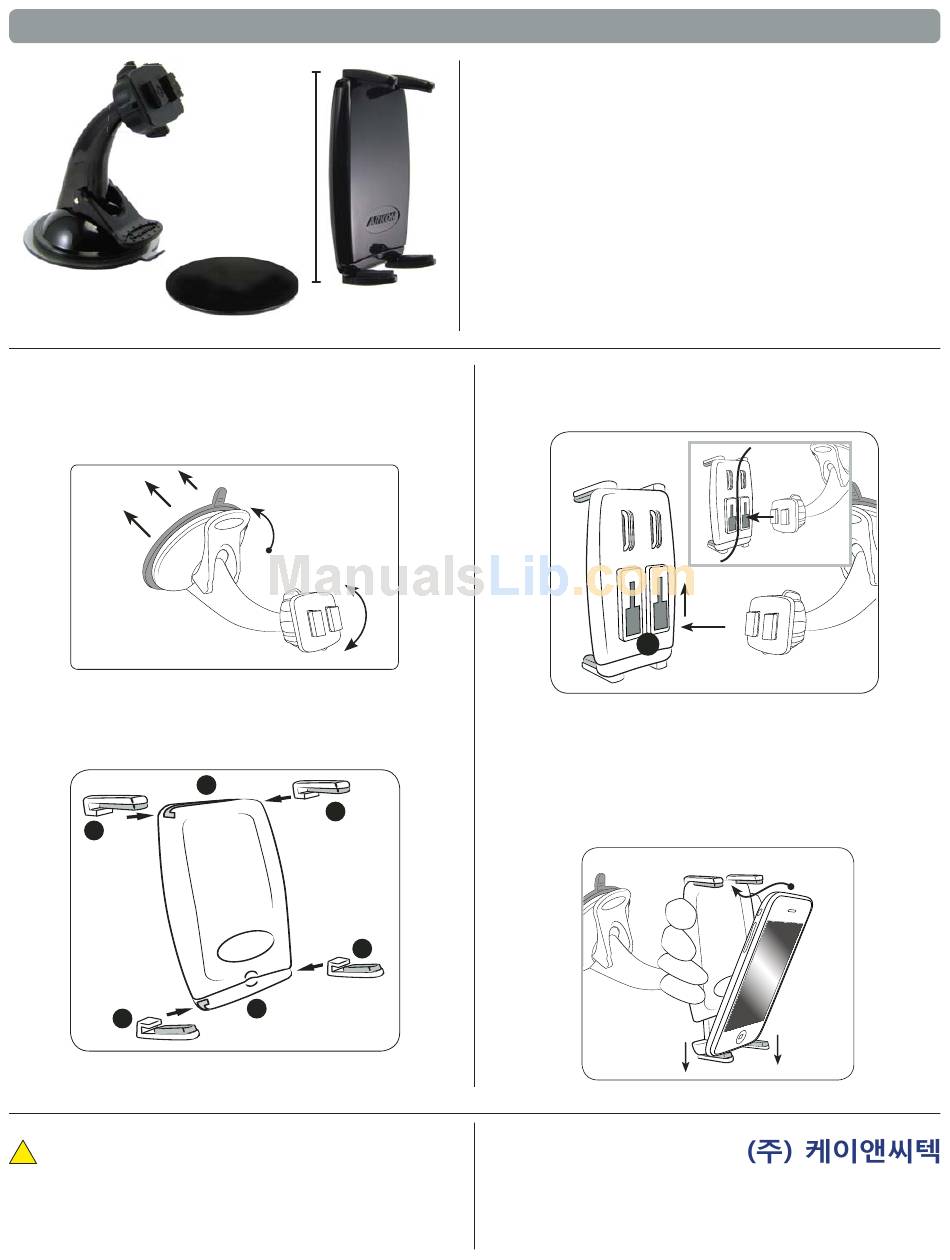

Windshield Mounting
Step 1. Find a safe location on the interior of the vehicle's windshield
to mount the pedestal. Firmly push the suction base (A)
against the windshield and fl ip the base lever down (B) to the
locked position. See diagram below.
A
Install the Support Legs to the Holder
Insert the holder support legs (A) by sliding them into the
Step 1.
support leg grooves (B) on the top and bottom of the holder.
A
A
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
82 mm
expandable to
118.5 mm
SM050-HPB-2
Universal Phone
Holder
B
B
A
A
B
Package Contents:
(1) SM050-HPB-2 Universal phone and portable device holder
(1) GN015-HPB-2 - Mini Windshield Suction and Dashboard Mount
(1) AP013 - Circular Adhesive Dashboard Disc
• Compatible with most smartphones, mobile phones, and cell phones having
heights between 80mm and 115mm tall
• Apple iPhone - All models
• RIM BlackBerry - All non-fl ip models
• HTC Phones - All non-fl ip models
• Motorola Phones - All non-fl ip models
• Nokia Mobile Phones - All non-fl ip models
• Palm - All non-fl ip models
• LG Mobile Phones - All non-fl ip models
• Samsung - All non-fl ip models
• Sony Ericsson - All non-fl ip models
• Sanyo - All non-fl ip models
• Pantech - All non-fl ip models
• Google - All non-fl ip models
Connecting the Slim-Grip™ Holder to Dual T-Tab Pedestal
Step 1. Connect the dual T-slots (A) on holder to the dual T-tabs (B) on
the pedestal head.
A
Insert Phone into Holder
Step 1. Secure holder with your hand for support, as spring-loaded
mechanism requires signifi cant force to operate. Hold your phone
and insert into universal holder by pushing down on the bottom
spring-loaded support legs with moderate amount of pressure
(C). Slide the top of the device under the top support legs (D) until
it fi ts snuggly in the holder.
Consumer Hotline:
USA
(800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
*All brand names and product
names are trademarks or registered
trademarks of their respective owners.
Optional Cord
Catcher
B
D
C
Continued on other side...
Representative in KOREA
www.knctek.com
TEL : 02) 839-5701
FAX : 02) 830-5703
Designed in USA | Made in China And Taiwan
© Copyright 2010 Arkon Resources, Inc.
