Arkon IPM2-FSM Manual

IPM2-FSM |
Flexible Gooseneck Seat Bolt or Floor Mount for Apple iPad 2
IPM2-FSM
Flexible iPad
Floor or Console Mount
1 Passenger Seat Bolt Mounting
For a simple mount that can be easily moved to another vehicle, install
using the passenger seat track bolt.
Do not place mount in or near an air bag deployment zone or
!
where it will obstruct view of the road.
With a socket wrench, loosen the passenger seat track bolt, insert
the seat track bolt bracket, and retighten the seat track bolt.
1
2 Alternative Floor or Console Mounting
For a more permanent mount, connect the Floor / Console Mount Bracket
to the floor or console. This will require drilling into your vehicle's
interior surface.
!
Drilling into the dash, floor, or console will permanently damage
the vehicle. Use caution and consult a mobile install professional
to avoid drilling into the gas tank, electrical system or other highly
sensitive vehicle components.
Fig. A Screw the mount bracket to the mount. Depending on your vehicle,
you may need to change the orientation of the bracket.
Fig. B
Attach the Floor / Console Bracket with screws.
!
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
Package Contents:

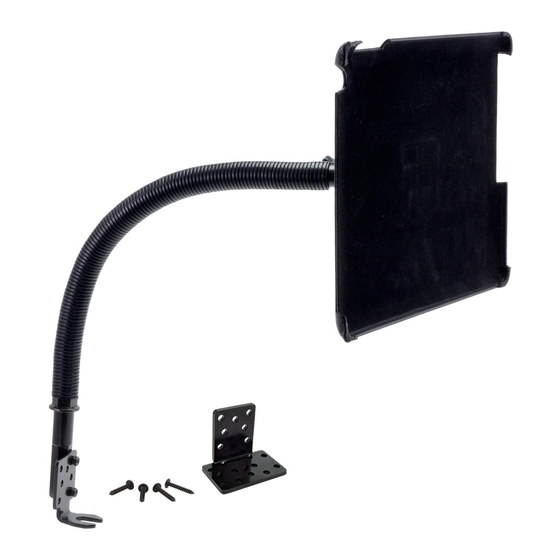

(1) IPM2-FSM - 20" Flexible aluminum gooseneck floor or console mount
Includes: (1) Seat Bolt Bracket, (1) Floor / Console Bracket, (4)Screws
Do not place mount in or near an air bag deployment zone or where it
!
will obstruct view of the road.
A
Mount Base
Floor Bracket
3
Pedestal Head Adjustments
Step 1. Adjust the steel shaft by bending with both hands to the
desired location of the male dual T head.
4
Attach the IPad 2 Hard Case Holder
Step 1. Attach the hard case iPad 2 holder to the headrest mount by
inserting the dual T-tabs on the mount to the dual T-slots on
the holder.
4
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
Apple and iPad are trademarks of Apple, Inc
B
Mount Base
Floor Bracket
ARKON
Continued on other side...
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2011 Arkon Resources, Inc.
