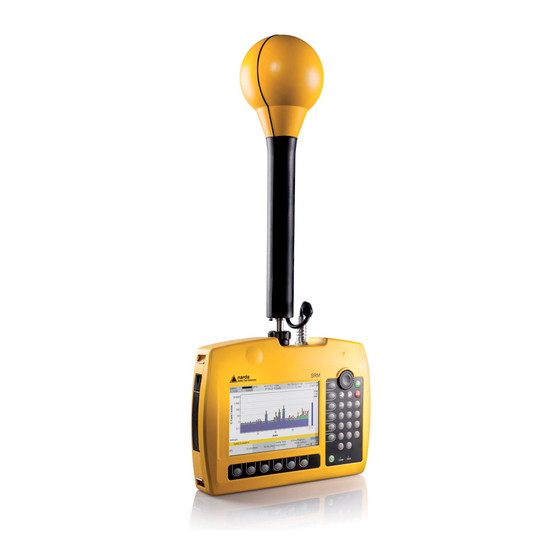

NARDA SRM-3006 Manual

Selective radiation meter for electromagnetic fields up to 6 ghz
Hide thumbs Also See for SRM-3006:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
SRM-3006: SELECTIVE RADIATION METER
FOR ELECTROMAGNETIC FIELDS
UP TO 6 GHz
SRM: WHEN SAFETY COUNTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRM-3006 and is the answer not in the manual?

Questions and answers

Related Manuals for NARDA SRM-3006

Summary of Contents for NARDA SRM-3006

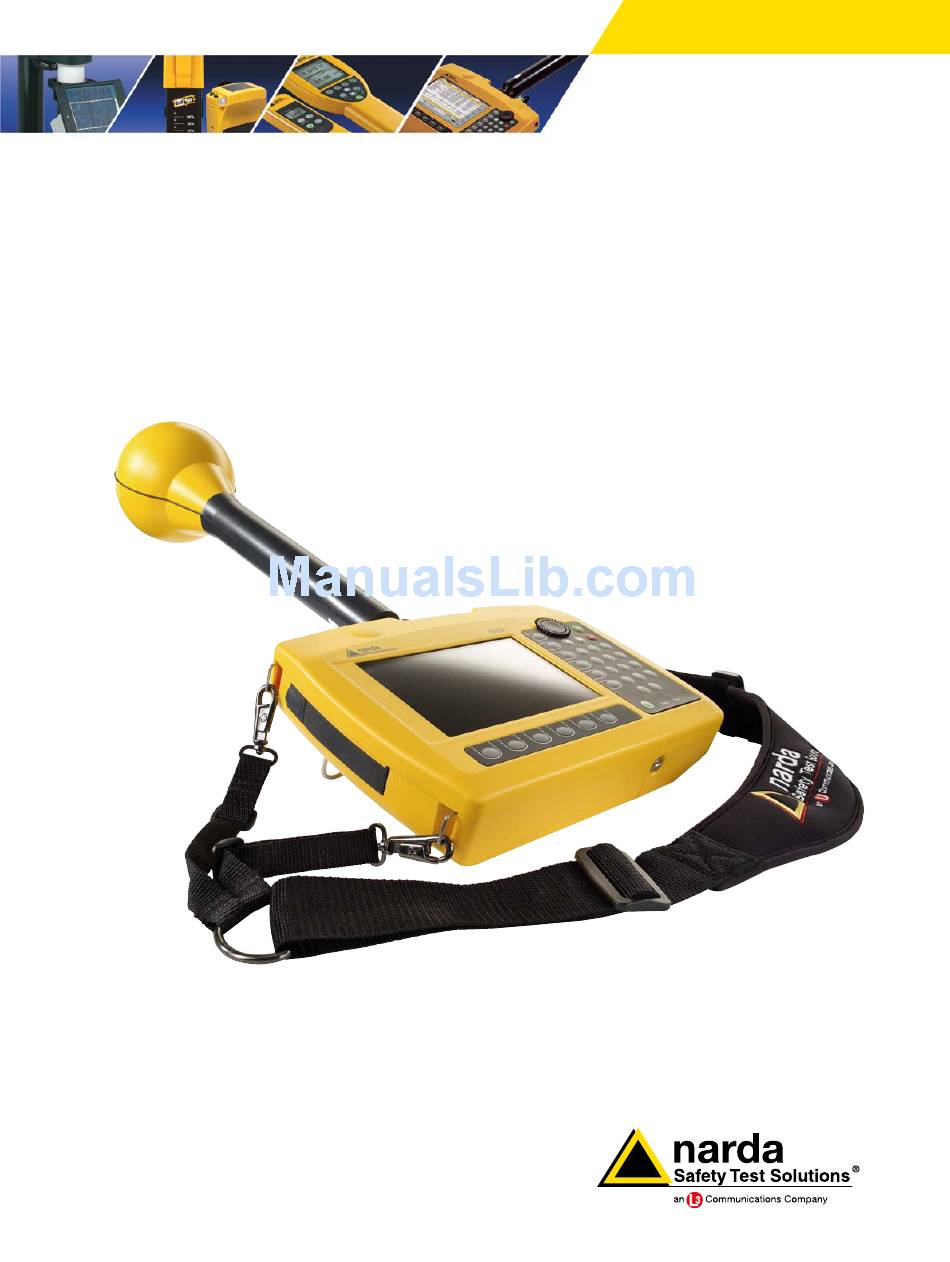

  • Page 1 SRM-3006: SELECTIVE RADIATION METER FOR ELECTROMAGNETIC FIELDS UP TO 6 GHz SRM: WHEN SAFETY COUNTS...
  • Page 2 SAFETY? Radio, TV, mobile phones, wireless services: Electromag- National and international authorities have fixed limit netic fields are the medium wherever such forms of values for such fields to prevent harmful effects. The communication are used. These fields affect everything field strengths allowed in the occupational environment around them including the people that are moving are usually higher than those for the general public,...
  • Page 3 Legislators have laid the responsibility for ensuring safety upon the operators of transmitting equipment and the relevant authorities. These, in turn, can take advantage of the measurement services offered by organizations and independent providers. There is really only one way to make sure everything is safe: CHECK! Photo reproduced by kind permission of...
  • Page 4 You don’t need to be an evaluate results. expert in spectrum analysis to use the SRM. The Selective Radiation Meter SRM-3006 from Narda Safety Test Solutions combines the analysis features of SRM: WHEN SAFETY COUNTS...
  • Page 5 The Selective Radiation Meter and its measuring antennas are matched. Any antenna and any instrument in the range can be combined to form a handy unit. Plug and Play. W/cm The results can be shown in physical units, e.g. electric field strength in V/m, magnetic field strength in A/m, and power density in W/cm or directly as a percentage of the limit values, for example those specified by ICNIRP.
  • Page 6 The SRM can create measurement reports on-site, so The SRM from Narda Safety Test Solutions is calibrated there’s no possibility of transmission errors creeping – traceable to national and international standards. It in.
  • Page 7 The calibration certificate records the traceability of the calibration of the instrument and antenna to recognized standards – with accreditation if requested. Impossible to falsify: Screenshot of a ‘Safety Evaluation’ result.
  • Page 8 The electric and magnetic field strengths at a distance from the source are in a fixed relationship, so it is suffi- Narda Safety Test Solutions has developed a thoroughly cient to measure just one of the two components. This researched range of measuring antennas. They make...
  • Page 9 ISOTROP – SINGLE AXIS Quick and reliable because they are non-directional: All antennas and antenna cables are interchangeable The isotropic antennas detect the field strengths in without affecting accuracy: The calibration data for three mutually perpendicular directions, and the SRM each item is saved in the antenna or cable itself and is automatically calculates the resulting field strength.
  • Page 10 WHO? WHAT? Broadcasting, mobile telephony, industrial equipment: SPECTRUM ANALYSIS What proportion of the overall field is from which source? The answer is of interest to the relevant authori- ties and safety representatives as well as to the opera- tors themselves. There is often a need to know what field strength is emanating from which equipment, which channel or which radio cell.
  • Page 11 SAFETY EVALUATION UMTS DEMODULATION LTE MODE Which channels are occupied? The bar View pulsed signals directly in ‘Scope’ graph display in ‘Safety Evaluation’ mode: The time domain display can be mode shows maximum, average, and set to cover a period of 24 hours or can minimum values simultaneously, so you be more finely resolved, even down to can clearly see what’s going on.
  • Page 12 The SRM-3006 records individual radio channels in real The SRM can operate independently for about three time with microsecond resolution in ‘Scope’ mode; this hours on fully charged batteries.
  • Page 13 ‘Safety Evaluation’ in a residential area: Is it really only the mobile phone base stations that are the source of the field? Practical, on-site battery exchange: With a spare set of batteries, you can run the equipment for a whole day without needing AC line power. ACT AVG MAX MIN MAX AVG MIN AVG...
  • Page 14 The SRM can do a lot of things automatically if you want measure ment location. However, the measurements it to, such as setting a suitable measurement range and themselves are repeated. Narda Safety Test Solutions has selecting the appropriate resolution bandwidth. You equipped the SRM-3006 with programmable measure- can also easily perform measurement steps manually, ment routines for this reason.
  • Page 15 Switching between operating modes also includes some the measured data. The SRM-3006 TS PC software lets clever features. For example, if you determine the center you do all this easily. frequency of a UMTS frequency channel using spectrum analysis, the SRM will continue measuring at exactly You can also combine instrument setups into measure- that frequency when you switch to ‘UMTS P-CPICH...
  • Page 16 – with time intervals ranging from hours right down to the details manually. For example, you can zoom in on microseconds. In ‘Level Recorder’ mode, the SRM-3006 individual lines in the spectrum, compare spectral com- displays the instantaneous peak and RMS values as well Detailed evaluation of a ‘Spectrum...
  • Page 17 RMS values that occurred during the measurement. With a resolution bandwidth extending up to 32 MHz, the SRM-3006 is also fully equipped to handle the latest generation of mobile communications systems. Expert users don’t need to put up with inconvenience, either.
  • Page 18 The Basic Unit has a footprint which is about the same size as this brochure. Together with the measuring Nevertheless, the specifications of the SRM-3006 are antenna, it forms a unit that can easily be carried up such that it can double as a laboratory instrument: any tower.
  • Page 19 Ergonomics for the lab: The SRM can be set at a tilt so it is easy to operate and read. OCC., ICNIRP 1998 OCC., ICNIRP 2010 Gen. Pub., ICNIRP 1998 Gen. Pub., ICNIRP 2010 [V/m] 100k occupational general public The advantage of a specialized device: If required, the SRM evaluates directly according to safety standards.
  • Page 20 (three-axis) E-field measuring antennas up to 3 GHz and www.narda-sts.com for detailed specifications. 6 GHz. Each set also includes the SRM-3006 Tools PC software, USB cable, AC adapter / charger, wrist strap and carry strap. The equipment is fitted in a choice of either a soft case or a rigid shell case.
  • Page 21 Antenna cables • RF cable, 1.5 m • RF cable, 5 m Tripod • Tripod adapter for single- and three-axis antennas • Tripod adapter for three-axis antennas Transport • Soft case or rigid shell case • Shoulder bag • Carry strap Power supply • Spare batteries • Battery charging station Software • SRM-3006 TS PC software with comprehensive data management features Care Packages with extended warranty and calibration SRM: WHEN SAFETY COUNTS...
  • Page 22 IEC / EN 62233 standard for domestic appliances. NARDA: WHEN SAFETY COUNTS Narda Safety Test Solutions is a global leader in the Our three facilities are located at Hauppauge, Long development and production of measuring equipment Island / USA, Pfullingen / Germany and Cisano / Italy.
  • Page 23 SELECTIvE HIGH-FREqUENCY TEST EqUIPMENT PERSONAL MONITORS AREA MONITORING STATIONS SRM-3006 – the tester that selectively detects and Worn on the body, these devices For permanent monitoring of the field strength measures every source in the range from 9 kHz to give reliable warning of excessive situation.
  • Page 24 Tel.: +39 02 269 9871 Fax: +39 02 269 98700 E-Mail: nardait.support@L-3com.com www.narda-sts.it © Narda Safety Test Solutions 2015 ® The name and logo are registered trademarks of Narda Safety Test Solutions GmbH and L3 Communications Holdings, Inc. – Trade names are the trademarks of their respective owners.
