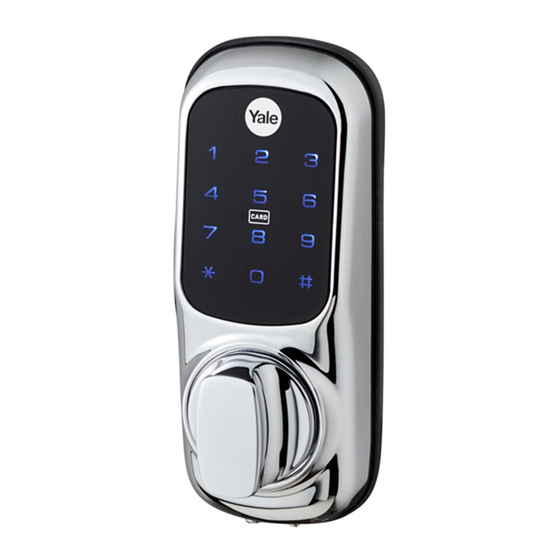

Yale YD-01-CON-ZW-CH Manual

Keyless connected smart door lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

smart
Living
Keyless Connected
Smart Door Lock Manual
Please read the intructions before fitting and using the
Keyless Connected Smart Door Lock.
The functions and design of this product can be changed
without prior notice for performance and quality improvements.
The smarter way to protect your home
•
YD-01-CON-UG REV2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YD-01-CON-ZW-CH and is the answer not in the manual?

Questions and answers

Related Manuals for Yale YD-01-CON-ZW-CH

Summary of Contents for Yale YD-01-CON-ZW-CH

  • Page 1 smart Living Keyless Connected Smart Door Lock Manual Please read the intructions before fitting and using the Keyless Connected Smart Door Lock. The functions and design of this product can be changed without prior notice for performance and quality improvements. The smarter way to protect your home •...
  • Page 2 Living Hereby, ASSA ABLOY Ltd, School Street, WV13 3PW declares that the Keyless Connected Smart Door Lock is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.yale.co.uk/declaration-of-conformity...

  • Page 3: Table Of Contents

    Contents Safety Precautions Introduction Product Features Getting to Know Your Lock Getting Started Opening the Lock with a PIN Code/ Key Card/ Tag or Remote Fob Set/Change Master Code Set a User Code Delete a User Code Set/Delete One Day Code Adding a Key Card/ Tag Delete a Key Card/Tag Register a Remote Fob...

  • Page 4: Introduction

    This new Smart Lock uses the latest technology to make your life easier. This user manual enables you to operate the product safely and to its full potential. Please ensure you read it completely before using the Yale Keyless Connected Smart Door Lock.

  • Page 5: Product Features

    4 - 10 digit PIN code 24 hour PIN code for visitors Key Card (includes one Card) Key Tag (includes one Tag) Control with Yale app (when linked to Yale alarm or CCTV) ® ® Open through third party app You can use a mix of up to 20 PIN codes, Key Tags, Key Cards and Remote Fobs plus app control (model dependant).

  • Page 6: Getting To Know Your Lock

    Getting to Know Your Lock Front (Front Body installed on the outside of the door) Keypad (10-key) Button Thumbturn Reset Button Button Emergency 9V power supply terminal Low Battery Indicator Low Battery Indicator Low Battery Indicator Low Battery Indicator Low Battery Indicator Low Battery Indicator Low Battery Indicator Low Battery Indicator...
  • Page 7 Opening the Lock with a PIN Code PIN Code Step Icon Expected Feedback Description Touch the keypad with Keypad will illuminate Touch the keypad to begin the palm of your hand followed by 2 tone beep Enter a valid user code 3 tone ascending beep Default code is ‘123456’...

  • Page 8: Set/Change Master Code

    Set/Change Master Code Registration The master code is the main password to the lock. As well as allowing entry through the door, it is also used to configure the lock including adding and removing users. Step Icon Expected Feedback Description Keypad will illuminate Touch the keypad to Touch the keypad with...
  • Page 9 Set a User Code The lock can hold up to 20 unique user codes, each one has a slot in the locks memory from 1 to 20. If a new code is written to a slot that already holds a code it will overwrite it. To save overwriting someone’s code it is important to record who’s codes are stored in each slot.

  • Page 10: Delete A User Code

    Delete a User Code To stop a user having access their code will need to be deleted. Before doing this you will first need to know which slot in the locks memory their code is in. Please see the User Code Log at the back of the guide. Step Icon Expected Feedback...
  • Page 11 Set a One Day Code The one day code is a code that will automatically expire after 24 hours. This allows short term access to be granted to someone. Step Icon Expected Feedback Description Touch the keypad with Keypad will illuminate Touch the keypad to begin the palm of your hand followed by 2 tone beep...

  • Page 12: Adding A Key Card/ Tag

    Adding a Key Card/Tag Key Card Key Tag The lock can hold up to 20 Key Cards/Tags, each one has a slot in the locks memory from 1 to 20. If you try to add a Card or Tag to a slot that aready holds one it will sound an error beep. It will also sound an error beep if you try to add a Card/Tag that has already been added.

  • Page 13: Delete A Key Card/Tag

    Delete a Key Card/Tag Key Card Key Tag To stop a user having access, their Key Card/Tag will need to be deleted. Before doing this you will first need to know which slot in the locks memory their Key Card/Tag is in. Please see the user Key Card/Tag log at the back of the guide.
  • Page 14 Remote fob Yale Remote Fobs allow you to open the lock at a distance of up to 15 metres. This requires both the Yale Remote Fob and the corresponding black Remote Module to work. Up to 5 Remote Fobs can be registered on one lock, and like the user codes they each have their unique slot in the lock memory.

  • Page 15: Delete Previously Paired Remote Fob

    Delete Previously Paired Remote Fob If a Remote Fob is lost or stolen it can be removed from the lock so that it can no longer be used to open it. Step Icon Expected Feedback Description Touch the keypad with the Keypad will illuminate Touch the keypad to begin palm of your hand...
  • Page 16 Change PIN Relock Time The relock time is the amount of time it takes for the Keyless Connected Lock to relock after it has been unlocked with a correct PIN, Card or Fob. The default is 7 seconds. Step Icon Expected Feedback Description Touch the keypad with the...

  • Page 17: Auto Re-Lock On/Off

    Auto Re-lock On/Off The lock can be toggled between two modes. With auto re-lock mode on the lock will automatically re-lock after the configured time. With auto re-lock mode off the lock will not re-lock until you touch the Keypad with the palm of your hand.

  • Page 18: Volume Settings

    Volume Settings The lock can be switched between three volume modes. In silent mode only programming beeps will be heard. In quiet mode the keypad beeps will be quieter, in loud mode they will be loud. Step Icon Expected Feedback Description Touch the keypad with Keypad will illuminate...

  • Page 19: Lock Modules

    • Yale Module: The Keyless Connected Smart Door Lock can be connected to the YaleEcoSystem and CCTV range, allowing you to open your door using the Yale Alarm or CCTV app. For more information and instructions on connecting to other Yale devices, please go to www.yale.co.uk/YaleEcoSystem •...

  • Page 20: Connecting To A Home Automation System

    Smart Home Connecting to a Home Automation System For more information on how to connect your smart door lock to a Yale system go to www.yale.co.uk/YaleEcoSystem. For other home automation systems please follow their instructions on adding a lock and when prompted follow the instructions below.

  • Page 21: Disconnecting From A Home Automation System

    Smart Home Disconnecting from a Home Automation System For security reasons a lock will not connect to a new home automation system if it is linked to another. If you have changed your home automation system please remove the device from the old system before adding it on to the new one.

  • Page 22: Intrusion Alarm

    Security Features Intrusion Alarm Damage Alarm: If the handle is attacked an 80db alarm will sound.

  • Page 23: Incorrect Pin Lockout

    Security Features Incorrect PIN Lockout For security, if the wrong PIN is entered 5 consecutive times the lock will lockout for 3 minutes. This is indicated by the number [3] on the keypad flashing. To Release Lockout Method Present valid Key Card or Fob Press any button on the remote fob...

  • Page 24: Emergency Power

    Emergency Power Emergency Power Supply for Discharged Batteries If the batteries in the lock have completely failed emergency power can be provided by a 9V battery on the front body. To Supply Emergency Power Step Icon Description Contact the 9V battery Place 9V battery onto the emergency power supply terminal Touch the Keypad with the palm of your hand...

  • Page 25: Resetting The Lock

    Resetting the Lock In the event of losing the master code to the lock, the lock will need to be reset back to factory default settings. This will result in the master code being set to the factory default which is ‘123456’. Step Icon Description...

  • Page 26: Specifications

    Specifications Remarks Parts Specifications Operating Temperature 64mm(W)x 153mm(H) x 51mm(D) Front (Front Body) Zinc die-casting -15˚C - 55˚C (5-131˚ F) 68mm(W)x 120mm(H) x 21mm(D) Operating Temperature Back (Main Body) PC/ABS -15˚C - 55˚C (5-131˚ F) Lever Zinc die-casting Lasts appoximately 1 year 4EA 1.5V AA alkaline batteries Battery (when lock is used 10...

  • Page 27: Guarantee

    This does not affect your statutory rights. A full copy of this guarantee is available upon request by writing to Yale UK, School Street, Willenhall, West Midlands. WV13 3PW or by visiting our website www.yale.co.uk...

  • Page 28: User Code Log

    User Code Log Pin Code Slot Number Name (Optional)

  • Page 29: User Key Card/Tag Log

    User Key Card/Tag Log Slot Number Name...

  • Page 30: Remote Fob Log

    Remote Fob Log Slot Number Name...

  • Page 31: Customer Service

    Customer Service At Yale, we know the importance of providing security products that are easy to install and use. However, should you have any questions or experience a problem with your purchase, please visit the help section on our website:...
  • Page 32 Living Customer Services: Yale UK School Street Willenhall WV13 3PW YaleUK YaleSecurity YaleSecurityUK The smarter way to protect your home •...
