Summary of Contents for Yale YDR323

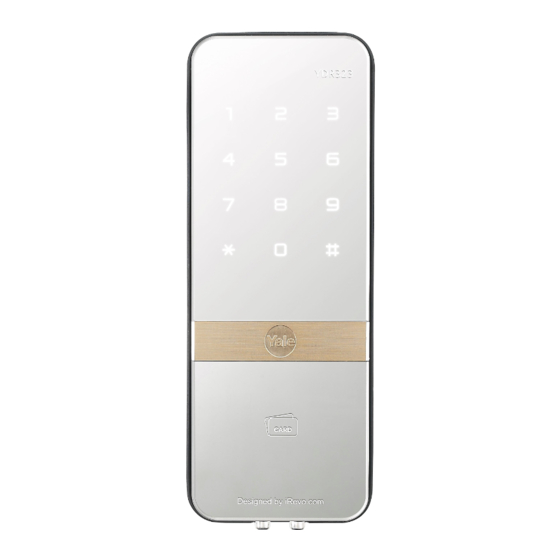

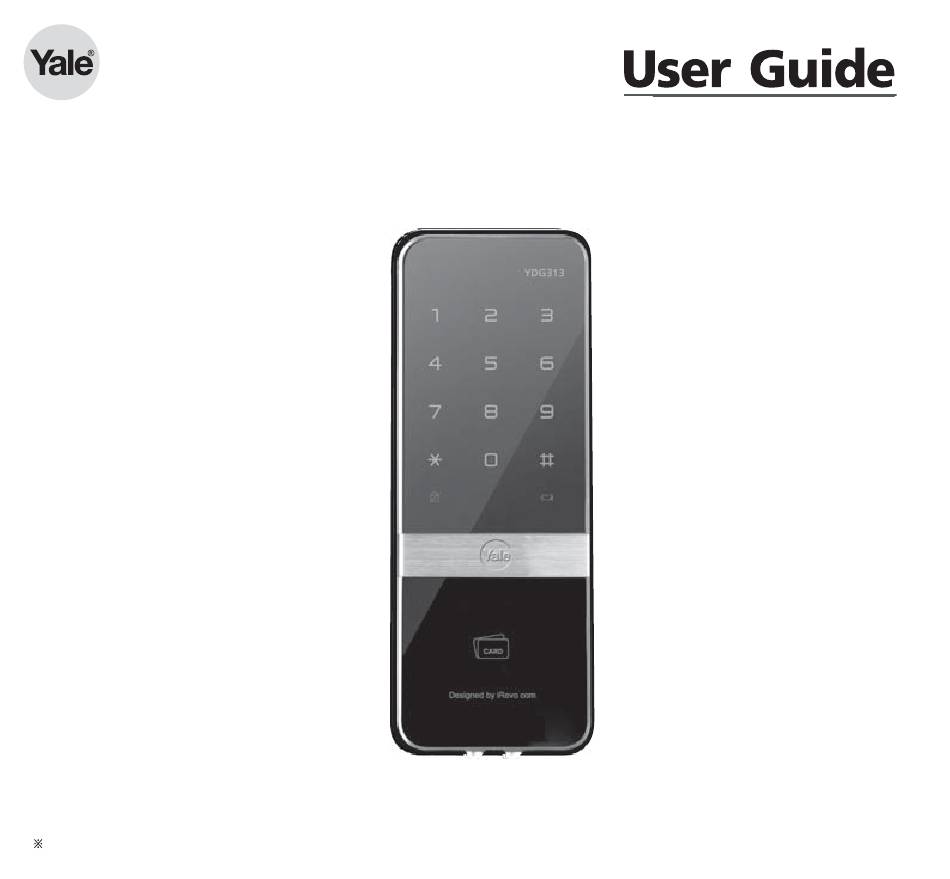

- Page 1 YDG313 The functions and design of this product can be changed without prior notice for quality improvement.
- Page 2 Do not install the product in Do not attempt to Do not spray water directly to the outdoor environment. disassemble the unit the product or wipe it with by yourself. That can chemical substances such as cause an electronic shock benzene, thinner, or alcohol and product damage.
- Page 3 Advance Mode Advance Mode can be used for professional and high secure management. Magic Mirror A magic Mirror function is applied, which the keypad number appears on the Mirror as soon as a user touches the product. The user can chech the rear through the Magic Mirror, so that security can be enhanced.
-
Page 4: Specifications
Basic Contents User Guide Installation Template Card Keys (4EA) Screws Front Body Back Body Magnet for Extension 10mm door a single door type deadbolt thickness gasket Optional Accessory (purchase separately) Remote Control Remote Control Module Strike for a double side door Specifications Parts Specifications... - Page 5 Front Body Back Body Keypad Battery Cover Slot for Remote Control module (optional extra) Registration Lowbatt. button Manual Thumb Turn Card key Safe Knob Reader Open/Close Button Emergency Power Dead Bolt Supply Terminal...
- Page 6 To Use User PIN Code Registering User PIN Code User PIN Code should be set Within 4 to 12 digits. [ ] and [ ] are not allowed. Enter User PIN Code Press Press (4 to 12 digits) (Registration) button (Registration) button Open Door with User PIN Code Enter User PIN Code...
- Page 7 Lock Door To Close Door from Outside Step Icon Description Touch the keypad in the front body gently with your Manual Lock status palm to lock a door. The built-in Auto Lock sensor automatically locks Auto Lock status a door within 5 seconds after closing the door. To Close Door from Inside Step Icon...
- Page 8 Forced Lock Outside Forced Lock Setting - PIN Code Enter User PIN Code Touch with palm Enter button for 3 sconds Outside Forced Lock Setting - Card Key Contact Card Key for 3 seconds until you hear 3 beeps. - If compulsory external lock is setup, the door open/close button will not function. The alarm will go off if one tries to open the door through the manual opening/closing unit.
- Page 9 Auto / Manual Locking Mode To Set Auto Locking Mode Auto lock setting locks a door in 5 second after the door was closed. Enter button Enter number Press Press on the keypad (Registration) button (Registration) button Even after a door was locked by the Auto Lock function, please check again if the door was completely locked.
- Page 10 Open / Close Button Setting Feature It enable you set the Open / Close button . Enter button Enter number Press Press on the keypad (Registration) button (Registration) button * The on/off of the function changes every time one sets the setting. * When the system is set to off, the open/close button does not function.
-
Page 11: Alarm Feature
Alarm Feature The alarm sound continues for 30 minutes or until it is reset. Break-in / Damage Alarm Break-in : When someone tries to Break-in by opening a door when it is locked, the alarm will Sound. Damage : When the front body was damaged due to forced separation or drilling, the alarm will Sound. High Temperature Alarm When there’s fire, it detects the temperature of the inside. - Page 12 3-minute Lock Feature If incorrect security codes or unregistered Card Keys are attempted 5 times in a row, it will lock out for about 3 minutes with the blinking LED. To Release 3-minute Lock Press the Open / Close button. Method 1 Press the Back Body button.
- Page 13 Remote Control Module Buy the Remote Control Module and install it to link the Remote Control. Remote Control Module Install Remote Control Module Remove batteries Install Remote Control Module Open the battery cover Equip the in the Back Body Remote Control Module and remove to the connector.
-
Page 14: Remote Control
Remote Control To Register Remote Control Icon Step Description Press (Registration) Open the battery cover in the Back Body. button and Press (Registeration) button and then Enter number 0 and Enter number 0 and then 5 on the keypad. 5 on the keypad Press the SET button on the Remote Control. -
Page 15: Expiry Period
You may open a door when contacting the 9V battery. Emergency Power Supply for Discharged Batteries Icon Step Description Open the emergency cover. Keep contacting the 9V Contact the Alkaline battery onto the emergency power supply terminal. 9V Alkaline battery Touch the keypad gently with your palm. - Page 16 http://www.yalelock.com...
- Page 17 YDG313...
- Page 19 (Advance Mode ) (Magic mirror touchpad) (Safe Knob) (Modern & Thin design) (Anti-shock)
- Page 20 Parts Specifications Remarks 14(D) x 72.8(W) x 186(H) Operating temperature : 48.8(D) x 77.5(W) x 190.5(H) 電池約可使用一年 4EA 1.5 AA alkaline batteries (以一天10次開關計算) (Operating voltage: 4.5 ~ 6V)
- Page 24 Release...
- Page 32 http://www.yalelock.com...
