  • Page 1: Quick Start

    H3C WA2110-AG Wireless LAN Access Point Quick Start Hangzhou Huawei-3Com Technology Co., Ltd. http://www.huawei-3com.com Manual Version: T2-08226P-20070314-C-1.00...
  • Page 2 All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou Huawei-3Com Technology Co., Ltd. Trademarks H3C, Aolynk, Care, , TOP G, , IRF, NetPilot, Neocean,...

  • Page 3: About This Manual

    About This Manual Related Documentation In addition to this manual, each WA2110-AG Wireless LAN Access Point documentation set includes the following: Manual Content The manual is a guide for the user to perform the operations correctly. It is organized into the...
  • Page 4 Organization H3C WA2110-AG Wireless LAN Access Point Quick Start is organized as follows: Chapter Contents It briefly introduces the applications and 1 Product Overview the features of the H3C WA2110-AG Wireless LAN Access Point. It briefly introduces the appearance, 2 Installation installation, and troubleshooting of H3C WA2110-AG Wireless LAN Access Point.
  • Page 5 Convention Description Alternative items are grouped in braces and separated by vertical bars. A minimum { x | y | ... } * of one or a maximum of all can be selected. Optional alternative items are grouped in [ x | y | ... ] * square brackets and separated by vertical bars.
  • Page 6 Convention Description Means reader careful. Improper operation may cause data loss or damage Caution to equipment. Note Means a complementary description. Environmental Protection This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed.

  • Page 7: Table Of Contents

    Quick Start H3C WA2110-AG Wireless LAN Access Point Table of Contents Table of Contents Chapter 1 Product Overview ............1-1 1.1 Introduction to H3C WA2110-AG........1-1 1.2 Technical Specifications ............1-1 Chapter 2 Installation ..............2-1 2.1 Product Appearance ............2-1 2.2 Safety Precautions .............2-3 2.3 Installation Procedure ............2-4...

  • Page 8: Chapter 1 Product Overview

    Co., Ltd. (Huawei-3Com) independently, the H3C WA2110-AG is a managed wireless LAN access point device. The H3C WA2110-AG is designed for use with a Huawei-3Com wireless control manager, and requires hardware installation only. All configuration for the access point takes place on the Huawei-3Com wireless control manager.
  • Page 9 Relative humidity (noncondensing) 10% to 90% Note: The H3C WA2110-AG also can be powered through a power adaptor (which does not come with the device. You should purchase it separately. For details, contact our local agents). For the power adaptor, the input voltage is 100 to 240 VAC, 50 to 60 Hz, and the...

  • Page 10: Chapter 2 Installation

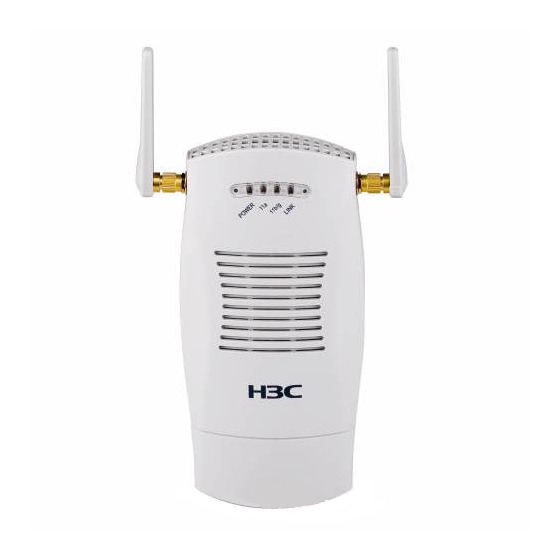

    Safety precautions Installation procedure Connecting the access point to a wireless control manager Troubleshooting 2.1 Product Appearance The figure below shows the appearance of an H3C WA2110-AG device. (1) LED (2) Antenna connector (3) Power interface (4) 10/100 Base-TX Ethernet interface...
  • Page 11 (1) Power LED (2) 802.11a LED (3) 802.11b/g LED (4) Ethernet status LED Figure 2-2 LEDs of an H3C WA2110-AG Table 2-1 describes the meaning of the LEDs. Table 2-1 Status of LEDs Meaning Indicate the working status of power supply: ON: The device works properly.

  • Page 12: Safety Precautions

    Quick Start H3C WA2110-AG Wireless LAN Access Point Chapter 2 Installation Meaning Indicate the status of the wireless link (the device works in the 11b/g mode): OFF: The wireless is not initialized or is faulty. 11b/g Slow blinking: A small amount of data is transmitted or received through the wireless line.

  • Page 14: Checking The Device Before Installation

    One electric drill and several auxiliary drill bits 2.3.2 Checking the Device Before Installation Before mounting the H3C WA2110-AG, connect it to the power supply (if applicable) and an Ethernet, and check the status of LEDs to ensure that the H3C WA2110-AG can work properly. In addition, record the MAC address of the access point for future use.
  • Page 15 Quick Start H3C WA2110-AG Wireless LAN Access Point Chapter 2 Installation I. Wall, Ceiling Mounting To mount the access point to a wall, follow the given steps below: Remove the access point from the mounting bracket. Route the power cable (if you use an external power supply) and Ethernet cable on the back of the mounting bracket, as shown in Figure 2-3.
  • Page 16 Quick Start H3C WA2110-AG Wireless LAN Access Point Chapter 2 Installation Mount the mounting bracket to a wall or ceiling, as shown in Figure 2-4. Figure 2-4 Mount the mounting bracket Connect the Ethernet cable (and power cable, if applicable) to the port(s) on the front of the access point.
  • Page 17 Quick Start H3C WA2110-AG Wireless LAN Access Point Chapter 2 Installation Figure 2-5 Install the locking bar Caution: Do not place the access point on any type of metal surface. Select a location that is clear of obstructions and provides good reception.

  • Page 18: Connecting The Access Point To A Wireless Control Manager2-9

    For instructions on configuring the wireless control manager, refer to H3C Wireless Control Manager Operation Manual and H3C Wireless Control Manager Command Manual.

  • Page 19: Troubleshooting

    Quick Start H3C WA2110-AG Wireless LAN Access Point Chapter 2 Installation 2.5 Troubleshooting details about troubleshooting, www.huawei-3com.com and refer to H3C WA2110-AG Wireless LAN Access Point Troubleshooting Manual. 2-10...
  • Page 20 Compliance and Safety Manual H3C WA2110-AG Table of Contents Table of Contents Chapter 1 Regulatory compliance statement ......1-1 1.1 European Community CE Certification DoC......1-1 Chapter 2 Regulatory Compliance Information......2-1 2.1 Regulatory compliance standards........2-1 2.2 European Regulatory compliance........2-2 2.2.1 EU Compliance information........2-3 2.2.2 EU Country Restriction in 2.4GHz band....2-5...

  • Page 21: List Of Figures

    Compliance and Safety Manual H3C WA2110-AG List of Figures List of Figures Figure 1-1 European Community CE Certification DoC List of Tables Table 2-1 Regulatory compliance standards ......2-1...

  • Page 22: Chapter 1 Regulatory Compliance Statement

    Compliance and Safety Manual H3C WA2110-AG Chapter 1 Regulatory compliance statement European Community CE Certification...
  • Page 23 Compliance and Safety Manual H3C WA2110-AG...

  • Page 24: Regulatory Compliance Standards

    Compliance and Safety Manual H3C WA2110-AG Chapter 2 Regulatory Compliance Information Regulatory compliance standards Table 2-1 Regulatory compliance standards Discipline Standards CISPR22 CLASS B EN 55022 CLASS B CISPR24 EN 55024 IEC 61000-3-2 IEC 61000-3-3 EN 61000-4-3 EN 61000-6-1 EN 61000-6-2...

  • Page 25: European Regulatory Compliance

    CAN/CSA C22.2 No 60950-1-03 Safety IEC 60950-1:2001 EN 60950-1/A11:2004 European Regulatory compliance H3C WA2110-AG complies with the following European R&TTE Directive 1999/5/EC. Regulatory statement (R&TTE / WLAN IEEE 802.11b & 802.11g) European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz;...

  • Page 26: Eu Compliance Information

    Select the country in which the product is installed to ensure product operation is in compliance with local regulations. For information on how to select the country, refer to the “Wireless Configuration Command” module in H3C Wireless Control Manager Command Manual.
  • Page 27 Compliance and Safety Manual H3C WA2110-AG CE Declaration of Conformity For the following equipment: (Wireless Access Point) To ensure compliance with the requirements of R&TTE RF exposure, a minimum body to antenna distance of 20cm (8 inch) must be maintained when the device is operated.

  • Page 28: Eu Country Restriction In 2.4Ghz Band

    Compliance and Safety Manual H3C WA2110-AG 2.2.2 EU Country Restriction in 2.4GHz band This H3C WA2110-AG product may be used indoors or outdoors in all countries of the European Community using the 2.4GHz band: Channel 1-13. 2.2.3 EU Country Restriction in 5GHz band The frequency band 5150-5250MHz can not be used outdoors.

  • Page 29: Rf Requirements

    Compliance and Safety Manual H3C WA2110-AG determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver.
  • Page 30 Compliance and Safety Manual H3C WA2110-AG This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 Compliance and Safety Manual H3C WA2110-AG distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Antennas Only use the supplied antenna. Unauthorized antennas, modifications or change to the antennas could violate FCC regulations and void the user’s authority to operate the...

  • Page 32: Chapter 3 Safety Information Sicherheitsinformationen

    Compliance and Safety Manual H3C WA2110-AG Chapter 3 Safety Information Sicherheitsinformationen General Requirements Allgemeine Anforderungen In order to reduce the technically unavoidable residual risk to a minimum, it is imperative to follow the rules below: Um das technisch bedingte Restrisiko auf ein Minimum zu...

  • Page 33: Electricity Safety Elektrische Sicherheit

    Compliance and Safety Manual H3C WA2110-AG For AC supplied model: To ensure the safety of the equipment and human body, please unplug the AC power connector and do not use the fixed terminal in the lightning weather. Furthermore, please do not touch the terminal or antenna connector in such weather.
  • Page 34 Compliance and Safety Manual H3C WA2110-AG When operation is performed in a damp environment, make sure that water is kept off the equipment. Muss in einem feuchten Umgebung gearbeitet werden, ist sicherzustellen, dass kein Wasser in die Ausrüstung dringen kann.
