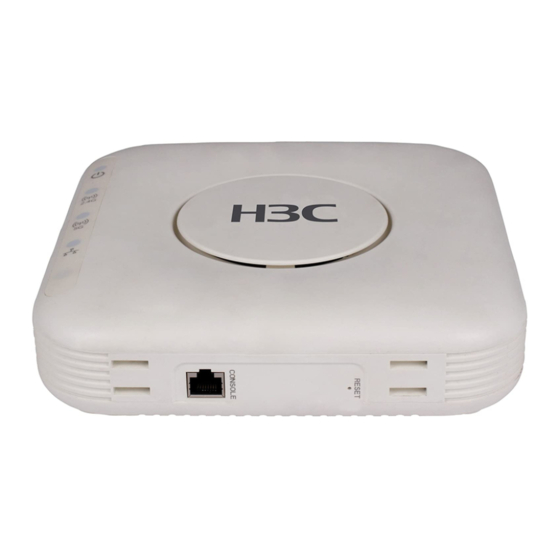

H3C WA2200 Series Quick Start Manual
Wlan access points
Hide thumbs
Also See for WA2200 Series:
- Installation manual (42 pages) ,
- Configuration manual (41 pages) ,
- Fundamentals configuration manual (137 pages)
Related Manuals for H3C WA2200 Series
Summary of Contents for H3C WA2200 Series
- Page 1 H3C WA2200 Series WLAN Access Points Quick Start Guide Abstract This document details the installation procedures for the H3C WA2200 series WLAN access points. Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com...
- Page 2 However, the statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Hangzhou H3C Technologies Co., Ltd. and its licensors shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Table of Contents WA2200 series quick start guide ······························································································· 4 Installation preparations ················································································································ 4 Unpacking and inspection ······································································································· 4 Installation tools ······················································································································· 4 Installation site examination ·········································································································· 5 Installation (indoor) ······················································································································· 5 Determining installation position ···································································································· 5 Connecting the power supply ······································································································· 5 Local power supply··················································································································...
- Page 4 The accessories vary with the models. For the exact contents of the package, refer to the packing list. If the contents do not match the packing list, contact your H3C representative. If the package is found to be rusted or water soaked, stop unpacking and contact your H3C representative immediately.
- Page 5 After you have completed the preparations, start installing the AP. Installation (indoor) This chapter includes instructions for installing the WA2210-AG and WA2220-AG indoor AP models on a wall using a wall-mounting bracket. To install the AP outdoors, see H3C WA2200 Series WLAN Access Point Installation Guide. Determining installation position Determine the installation position by observing the following principles: ...
- Page 6 Installing the AP on the wall-mounting bracket To install the AP on the wall-mounting bracket: Align the AP with the hooks on the wall-mounting bracket and hang the AP on the bracket. Press the AP downward to affix it. Optional: Locking the AP onto the wall-mounting bracket The indoor AP has a security slot on the top, which can be used to lock the AP onto the wall-mounting bracket to prevent theft.
- Page 7 Ethernet uplink interface. Connect the Ethernet interface of the AP to an Ethernet interface of an Ethernet switch to implement Internet or MAN access. For details on configuring your AP (work in fat mode), see the H3C WA Series WLAN Access Points Configuration Guides, H3C WA Series WLAN Access Points Command References, and H3C WA Series WLAN Access Points Web-Based User Guides.
