Product Overview
Introduction

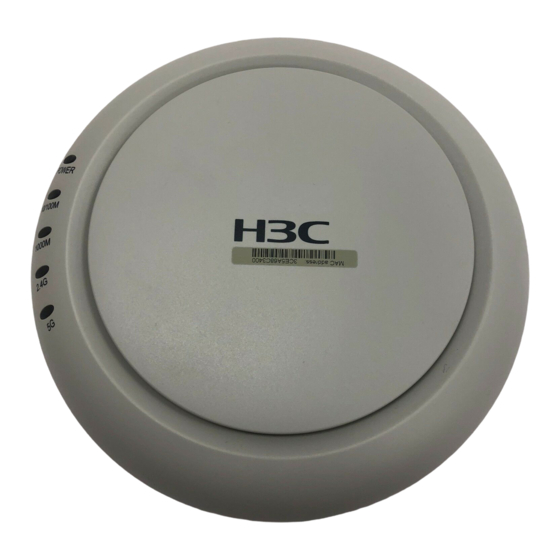

The H3C WA2600 Series Indoor WLAN Access Points (hereinafter
referred to as the WA2600 indoor series) are one of the 802.11n
access point (AP) product series developed by Hangzhou H3C
Technologies Co., Ltd. (hereinafter referred to as H3C). The WA2600
indoor series can serve as fat APs for networking independently, and
serve as fit APs to cooperate with wireless local area network (WLAN)
switches or access controllers to provide wireless access for WLAN
users.
Figure 1-1 shows a typical scenario of hotspot deployments using the
WA2600 indoor series.
1
Advertisement
Table of Contents
Related Manuals for H3C WA2610-AGN
Summary of Contents for H3C WA2610-AGN
-
Page 1: User Manual
WA2600 indoor series) are one of the 802.11n access point (AP) product series developed by Hangzhou H3C Technologies Co., Ltd. (hereinafter referred to as H3C). The WA2600 indoor series can serve as fat APs for networking independently, and... - Page 2 WA2610 -AGN WA2612-AGN Table 1-1 Physical dimensions and weight of the WA2600 indoor series Model Physical dimensions Weight WA2610-AGN (H × W 42 × 181 × 127 mm 1 kg (2.20 lb.) × D) (1.65 × 7.13 × 5.00 in.)
-
Page 3: Hardware Configuration
Model Physical dimensions Weight WA2612-AGN Φ190 × 60 mm (Φ7.48 0.5 kg (1.10 lb.) (diameter × thickness) × 2.36 in.) Hardware Configuration The WA2600 indoor series provide two models. Table 1-2 lists the basic configurations. Table 1-2 Device basic configurations Protocols and Power Model... - Page 4 LEDs WA2610-AGN Figure 1-3 LEDs on the WA2610-AGN Table 1-3 Description of the LEDs on the WA2610-AGN Color Meaning Displays the power supply status: Steady on: The power supply is normal. POWER Green Off/blinking: The power supply is not well connected or the device works abnormally.
- Page 5 Color Meaning Displays the 5 GHz wireless link status: Off: The wireless link is not initialized or the link is faulty. Green (Wireless Blinking slowly: The wireless link LED) link works normally. Blinking rapidly: Data is being transmitted or received. Displays the status of the Ethernet interface: Steady on (green): The 1000...
- Page 6 WA2612-AGN Figure 1-4 LEDs on the WA2612-AGN Table 1-4 Description of the LEDs on the WA2612-AGN Color Meaning Displays the power supply status: Steady on: The power supply is normal. POWER Green Off/blinking: The power supply is not well connected or works abnormally.
- Page 7 (Wireless Blinking slowly: The wireless link LED) link works normally. Blinking rapidly: Data is being transmitted or received. Interfaces Interfaces provided by the WA2610-AGN The WA2610-AGN provides the following interfaces: A console interface An Ethernet interface A power supply interface...
- Page 8 In addition, the WA2610-AGN provides a reset button, a WPS button (reserved for expansion use) and a security slot. Figure 1-5 Interfaces on the WA2610-AGN Interfaces provided by the WA2612-AGN The WA2612-AGN provides the following interfaces: A console interface An Ethernet interface In addition, the WA2612-AGN provides a reset button and a security slot.
- Page 9 Figure 1-6 Interfaces on the WA2612-AGN Table 1-5 describes the interfaces provided by each model. Table 1-5 Descriptions of interfaces on the WA2610-AGN/WA2612-AGN Interface Standards and Description silkscreen protocols The console interface is used CONSOLE RS/EIA-232 for device configuration and...
- Page 10 Interface Standards and Description silkscreen protocols The Ethernet interface can IEEE802.3 serve as an uplink interface to ETHERNET IEEE802.3u access the Internet or MAN, and as a PoE interface at the IEEE802.3af same time. When connecting a cable to an interface, pay attention to the interface silkscreen to avoid connection mistakes.
-
Page 11: Table Of Contents
User Manual (H3C WA2612-AGN, WL-607) Table of Contents Appendix A Regulatory Compliance Information........A-1 Regulatory compliance standards ............A-1 Support Antennas & Accessories information........A-2 EU Compliance information..............A-2 CE Marking .................. A-2 EU Country Restriction in 2.4GHz band........A-7 EU Country Restriction in 5GHz band......... -
Page 12: Appendix A Regulatory Compliance Information
Appendix A Regulatory Compliance Information Regulatory compliance standards Table A-1 Regulatory compliance standards Discipline Standards FCC Part 15.207 & 15.209 & 15.247& 15.205 & 15.407 FCC Bulletin OET-65C IC RSS 210 ETSI EN 300 328 EMC & RF ETSI EN 301 893 EN 61000-3-2 EN 61000-3-3 ETSI EN 301 489-1... -
Page 13: Support Antennas & Accessories Information
Support Antennas & Accessories information This product can only be used with the supplied antenna(s). This product does not contain any user serviceable components. Any unauthorized product changes or modifications will invalidate the warranty and all applicable regulatory certifications and approvals. This product must be installed by a professional technician/installer. - Page 14 Restriction limits of 1999/519/EC(Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields(0Hz-300GHz). R&TTE declaration statements: H3C Coporation tímto prohlašuje, že tento RLAN device je Česky ve shodě se základními požadavky a dalšími příslušnými [Czech] ustanoveními směrnice 1999/5/ES.
- Page 15 Por medio de la presente H3C Corporation declara que el Español RLAN device cumple con los requisitos esenciales y [Spanish] cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ H3C Corporation ΔΗΛΩΝΕΙ ΟΤΙ RLAN Ελληνική device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ...
- Page 16 I överensstämmelse med de väsentliga egenskapskrav [Swedish] och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Hér með lýsir H3C Corporation yfir því að RLAN device er í Íslenska samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í [Icelandic]...
- Page 17 H3C Corporation erklærer herved at utstyret RLAN device Norsk er i samsvar med de grunnleggende krav og øvrige [Norwegian] relevante krav i direktiv 1999/5/EF. A copy of the signed Declaration of Conformity can be downloaded from: http://www.h3c.com/portal/Technical_Documents http://support.3com.com/doc/H3C_WA2612-AGN_EU_DOC.pdf Table A-2 Overview of Regulatory Requirements for Wireless LANs...
-
Page 18: Eu Country Restriction In 2.4Ghz Band
If operation is occurring outside of the allowable frequencies as listed above, the user must cease operating the H3C WA2612-AGN at that location and consult the local technical support staff responsible for the wireless network. 3) This device must be used with the radar detection feature required for European Community operation in the 5GHz bands. -
Page 19: Weee Directive-2002/96/Ec
Europe-Restrictions for Use of 5GHz Frequencies in European Community Countries Allowed Allowed Frenquecy Channel Countries Bands Numbers 36,38,40,44,4 Austria, Belgium, Bulgaria, Cyprus, 6,48,52,54,56, Czech Republic, Denmark, Estonia, 60,62,64,100, Finland, France, Germany, Greece, 5.15-5.35& 102,104,108,1 Hungary, Iceland, Ireland, Italy, Latvia, 5.470-5.725G 10,112,116,11 Liechtenstein, Lithuania, Luxembourg, 8,120,124,126... -
Page 20: Usa Compliance Information
USA Compliance information US Federal Communications Commission statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 21: Rf Requirements
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF Requirements RF exposure Hazard Warning This device generates and radiates radio-frequency energy. In order to comply with FCC radio-frequency exposure guidelines for an uncontrolled environment, this equipment must be installed and operated while maintaining a minimum body to antenna distance of 20 cm (approximately 8 in.) -
Page 22: Industry Canada
Industry Canada RF Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
